Gritty overdrive, low gain fuzz and vintage preamp
Raw and complex texture
Voiced between germanium warmth and silicon presence
Heavily modded Fuzz Face/Tone Bender
Matched low gain silicon transistors
All metal enclosure
Hand built and wired
Highly versatile controls for gain, saturation, EQ and headroom
Retro red and black graphics
LED power indicator on and off

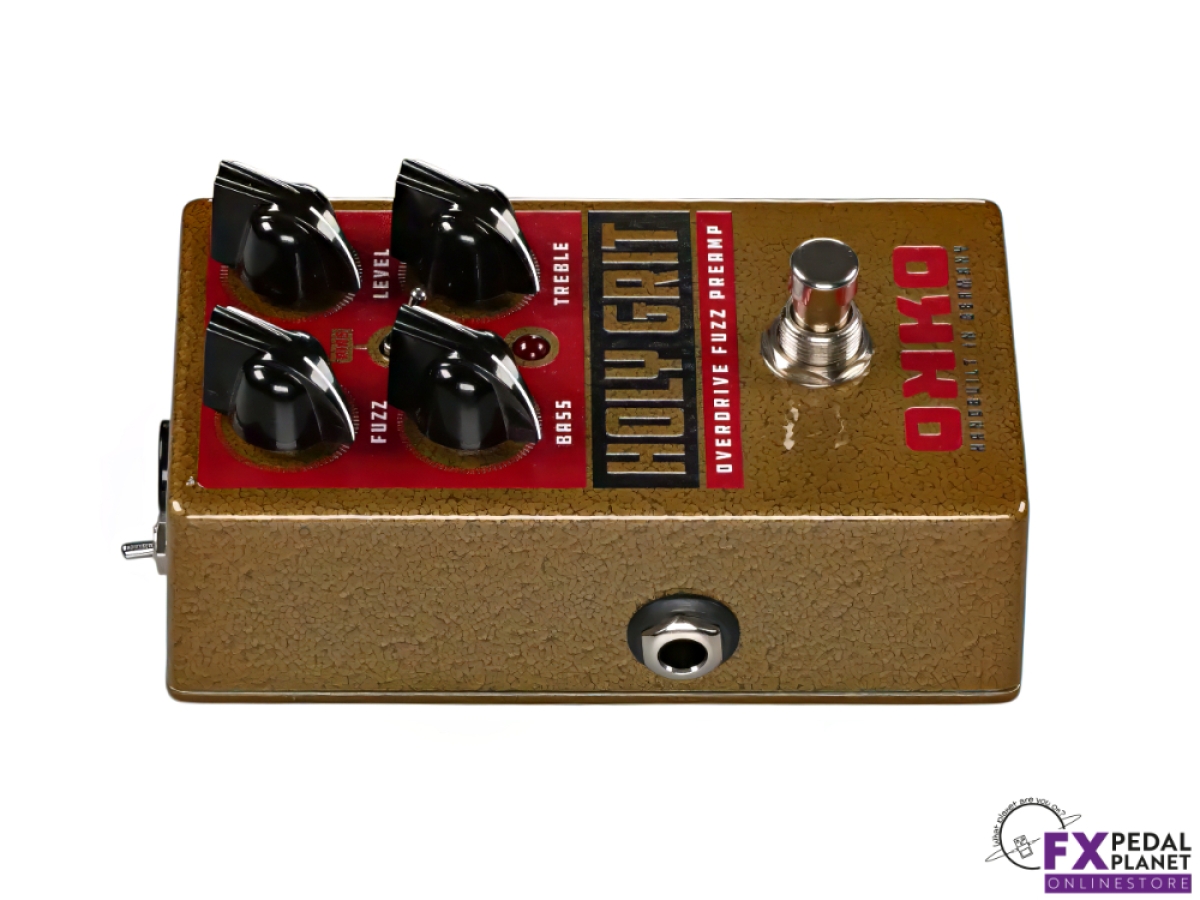

Side mounted jack sockets

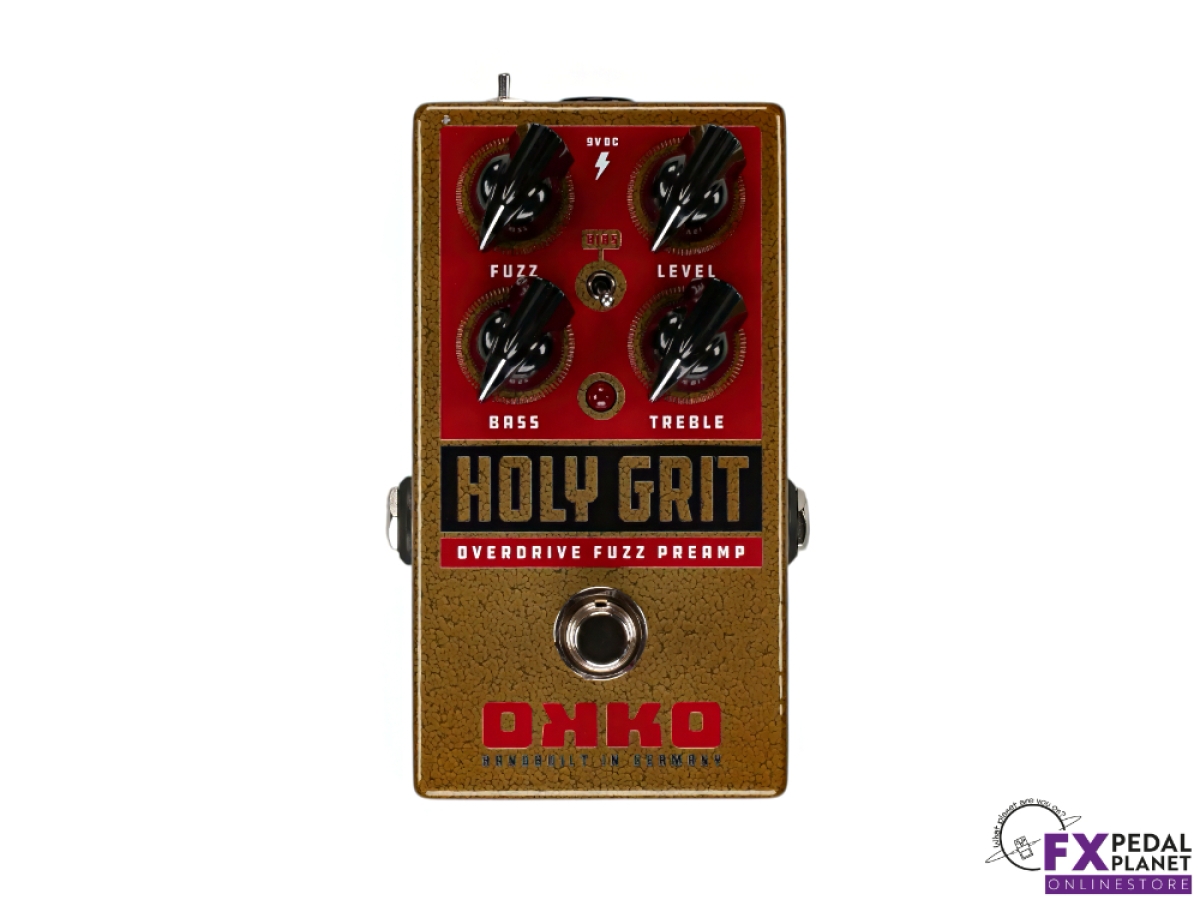

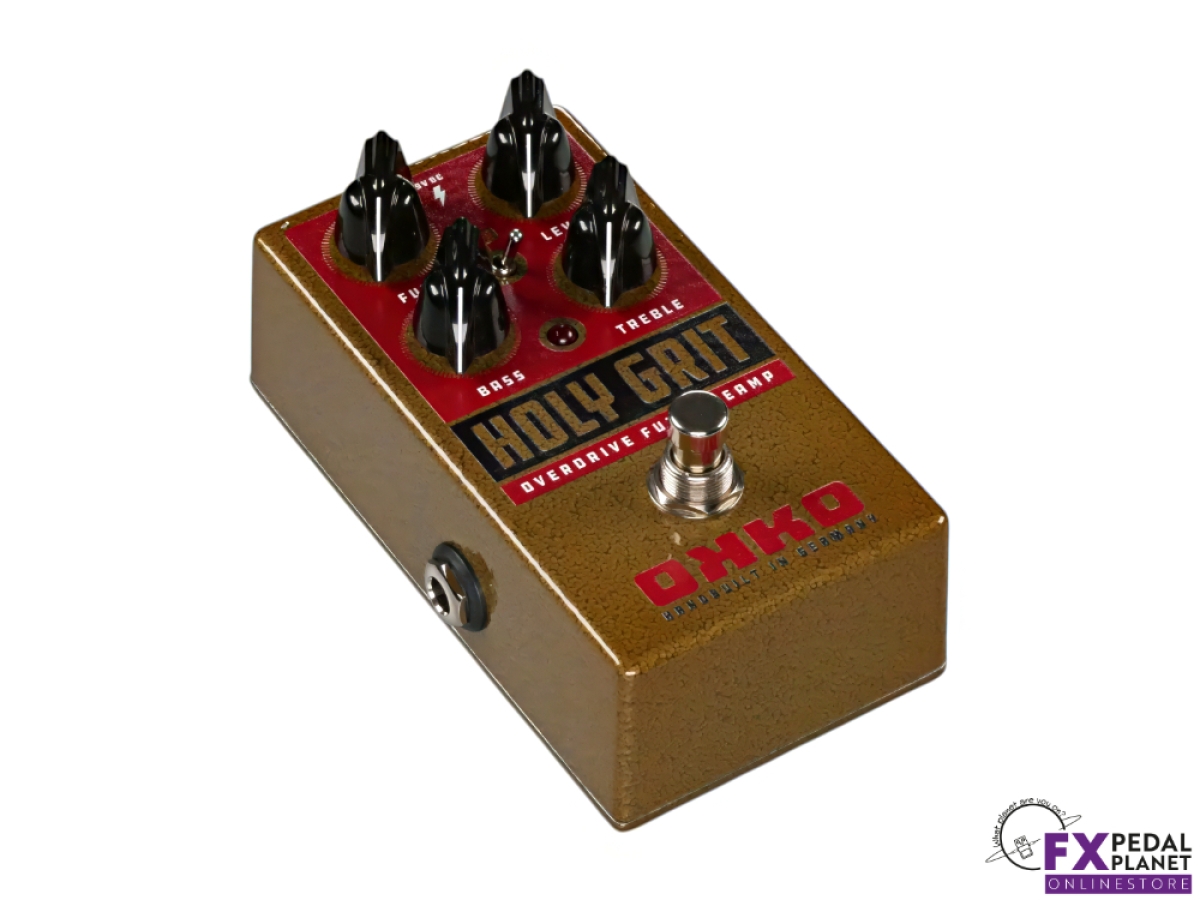

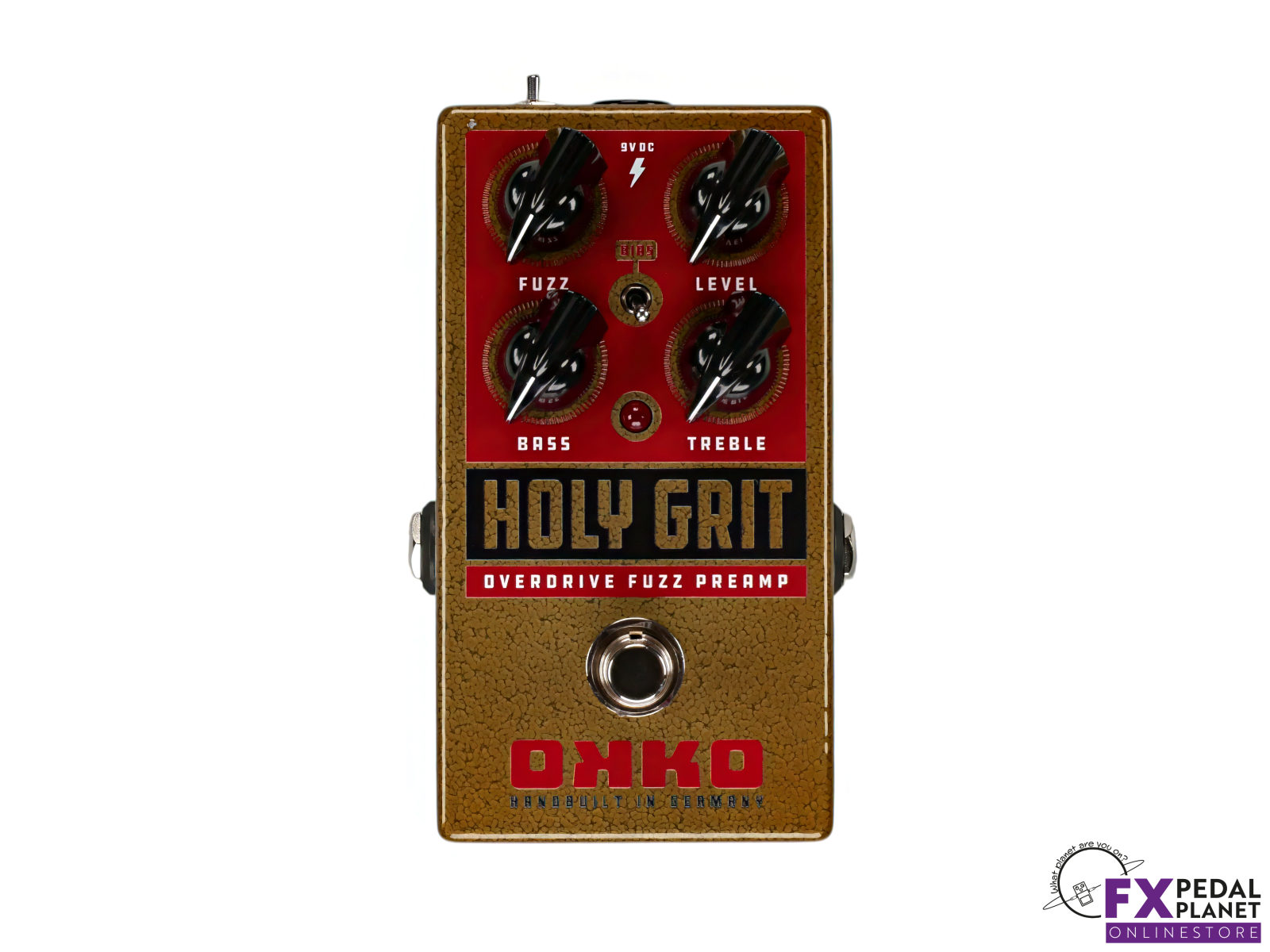

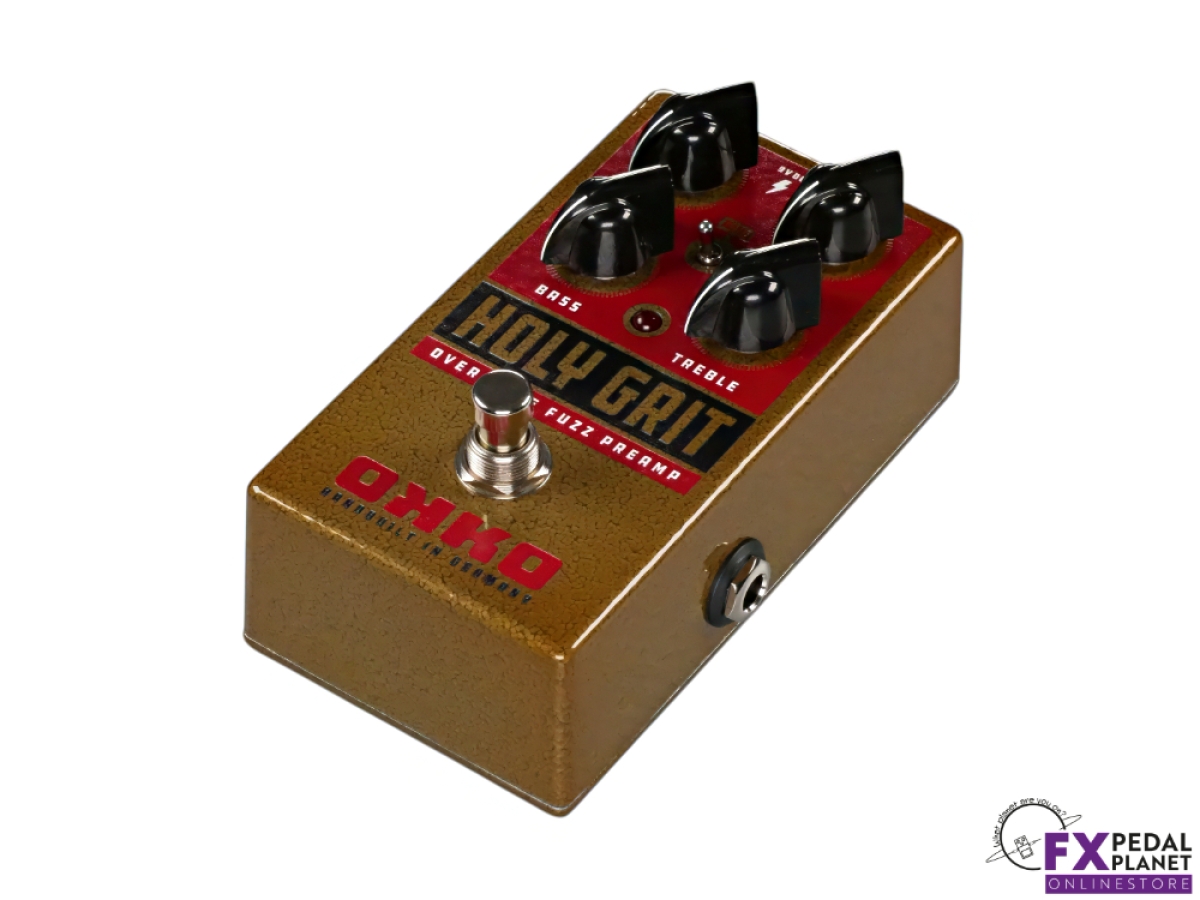

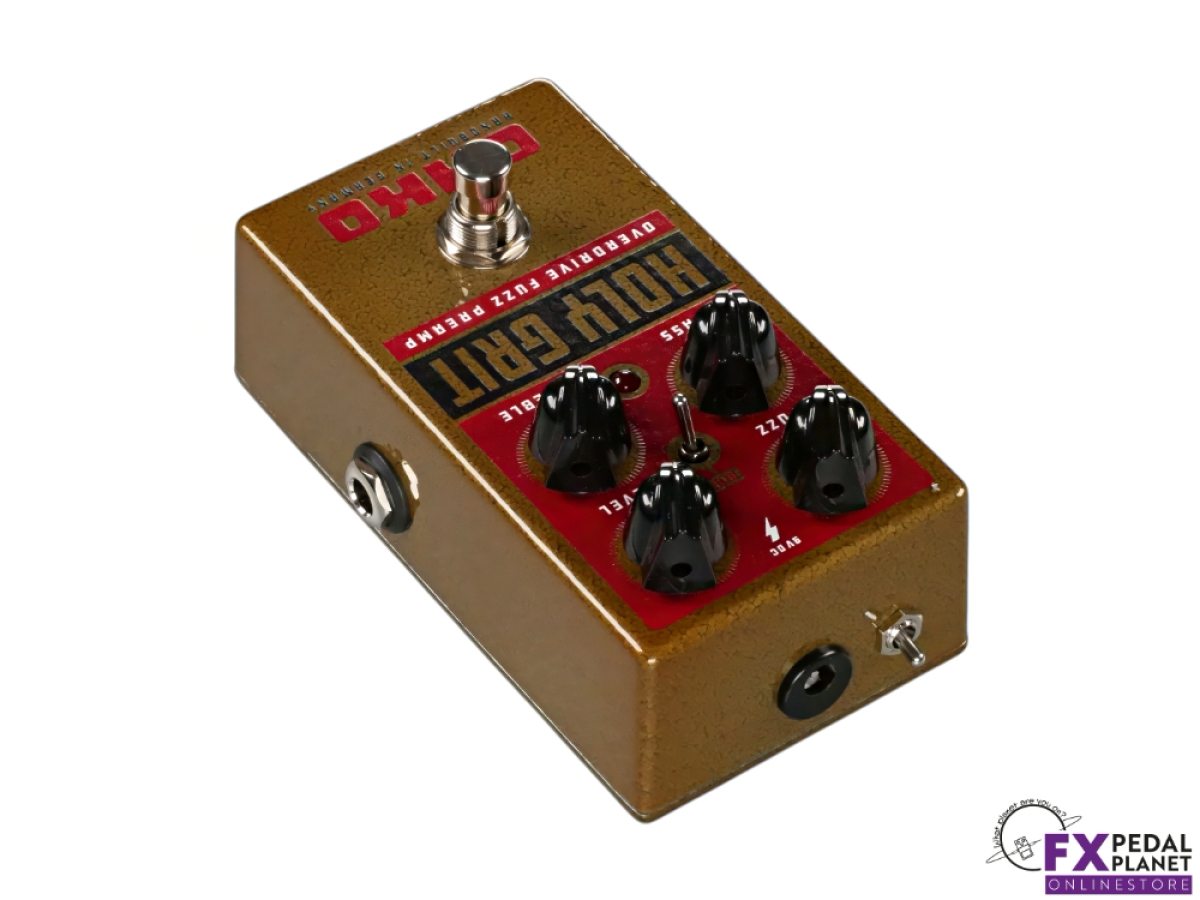

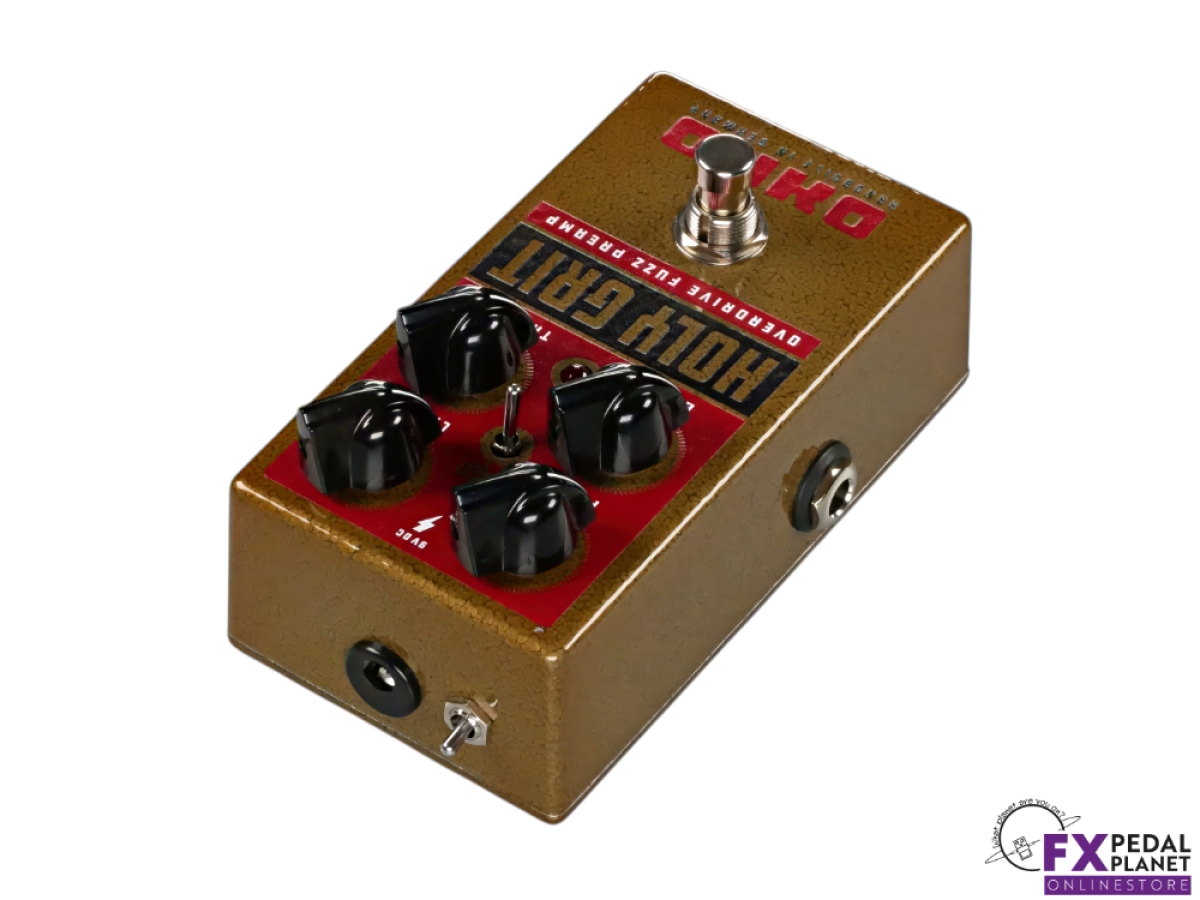

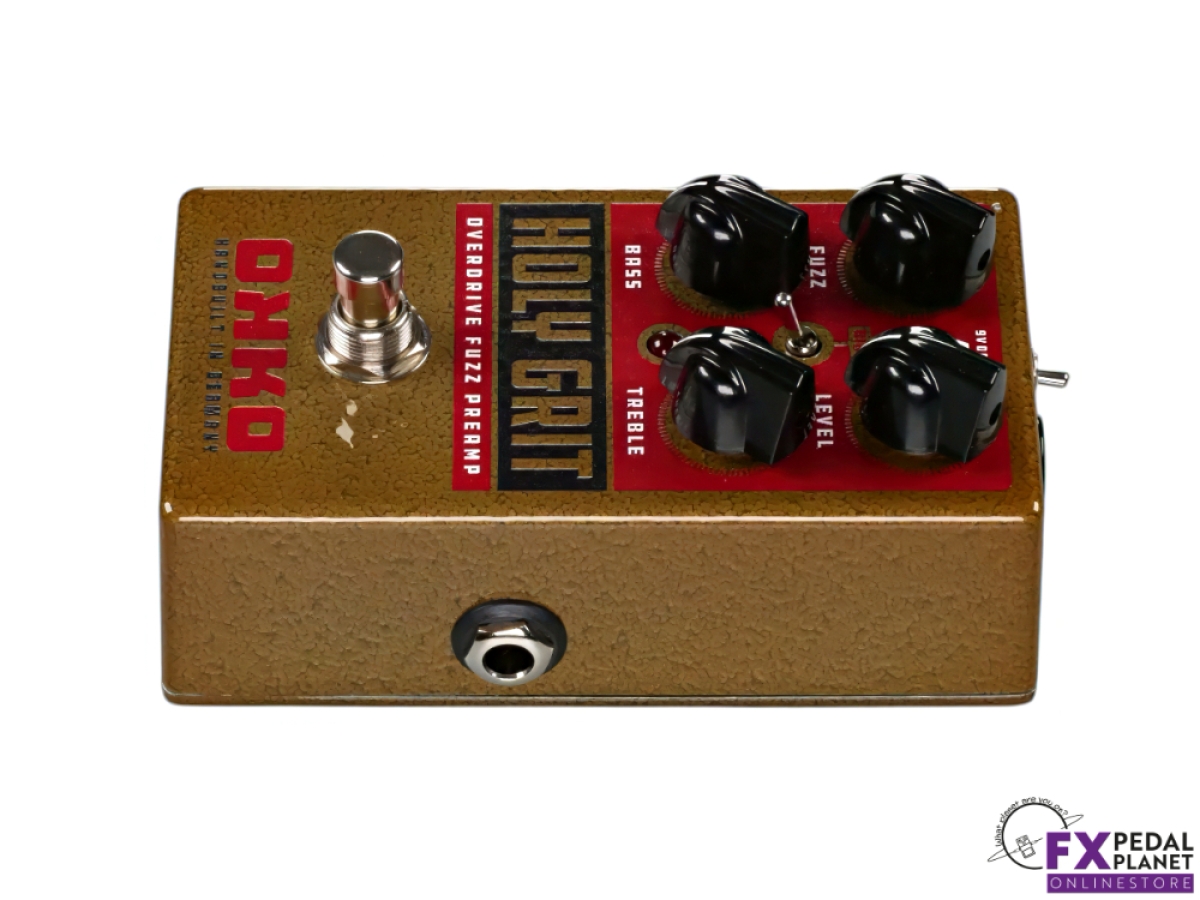

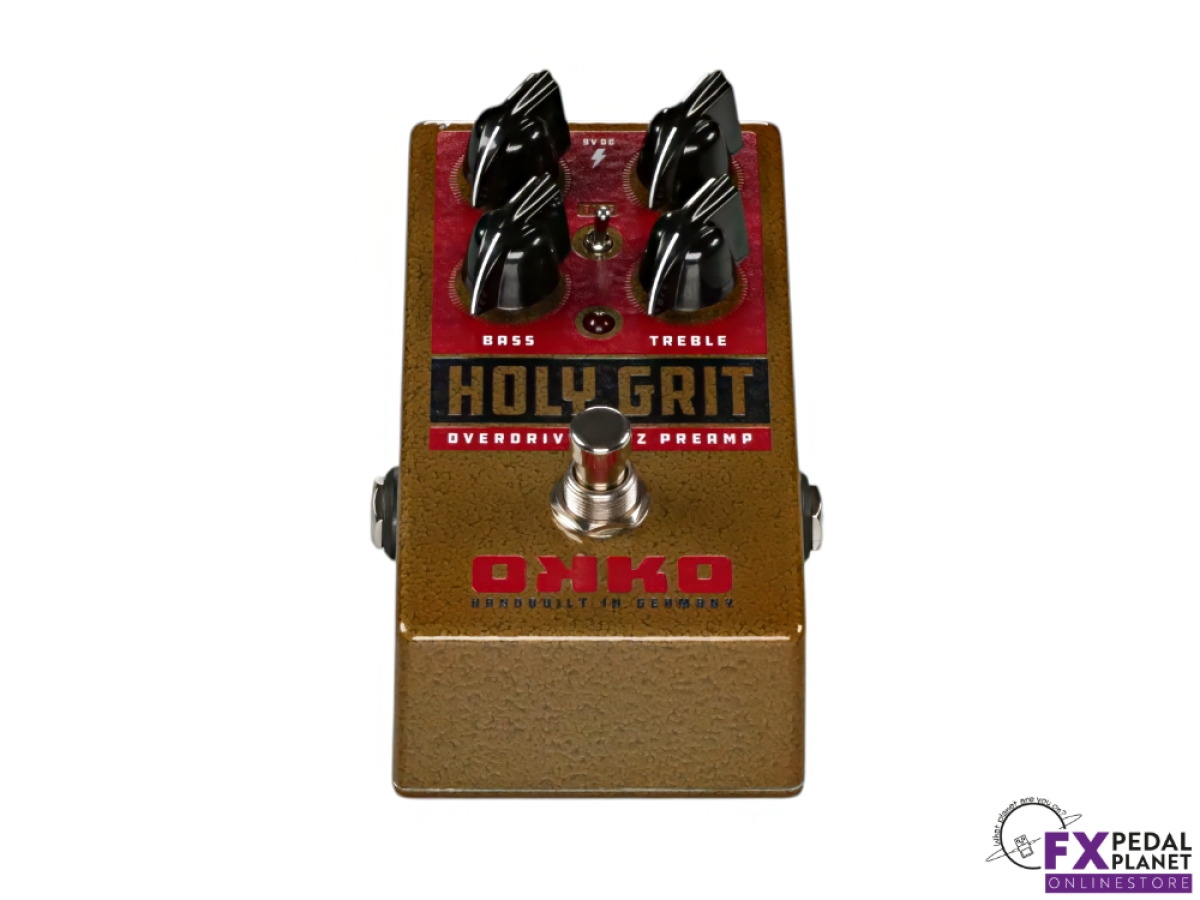

Gritty overdrive, low gain fuzz, vintage preamp, no matter how you call it, the OKKO FX Holy Grit combines the clarity and dynamic response of a great overdrive with the raw and complex texture of a vintage fuzz. The intuitive controls let you dial in anything from cleanish boost with a little grit to full blown vintage amp on 11 sounds. Plug it into a clean or driven amp, stack with boosters, overdrives or fuzz pedals, the OKKO FX Holy Grit will deliver, for guitar, bass, keys or whatever you want to spice up.
The OKKO FX Holy Grit circuit is based on the classic Fuzz Face/Tone Bender but heavily tweaked into something else. OKKO FX have used a set of matched low gain silicon transistors here (parts numbers may differ from one unit to another), voiced between germanium warmth and silicon presence.
LEVEL: Adjusts output signal
SENSITIVITY: Amount of compression being applied
FUZZ: Well, you know, level of distortion. Set low for boosting overdriven amps or dirt pedals and work your way up to see how far you can go.
LEVEL: As expected, controls the output volume. Plenty of volume on tap, even with the Fuzz knob set to minimum.
BASS: A pre gain control so more bass equals more fuzz. Play with it and you will find the perfect balance between tight/precise and bold/buzzy.
TREBLE: Rolls off highs post gain at variable frequencies.
BIAS TOGGLE: Selects one of three bias settings (individually set for each pedal):
UP: High headroom setting, least amount of fuzz and compression, tight and precise
MIDDLE: The almost too low bias – dirty, buzzy, can get into velcro fuzz territory…fun!
DOWN: The golden middle

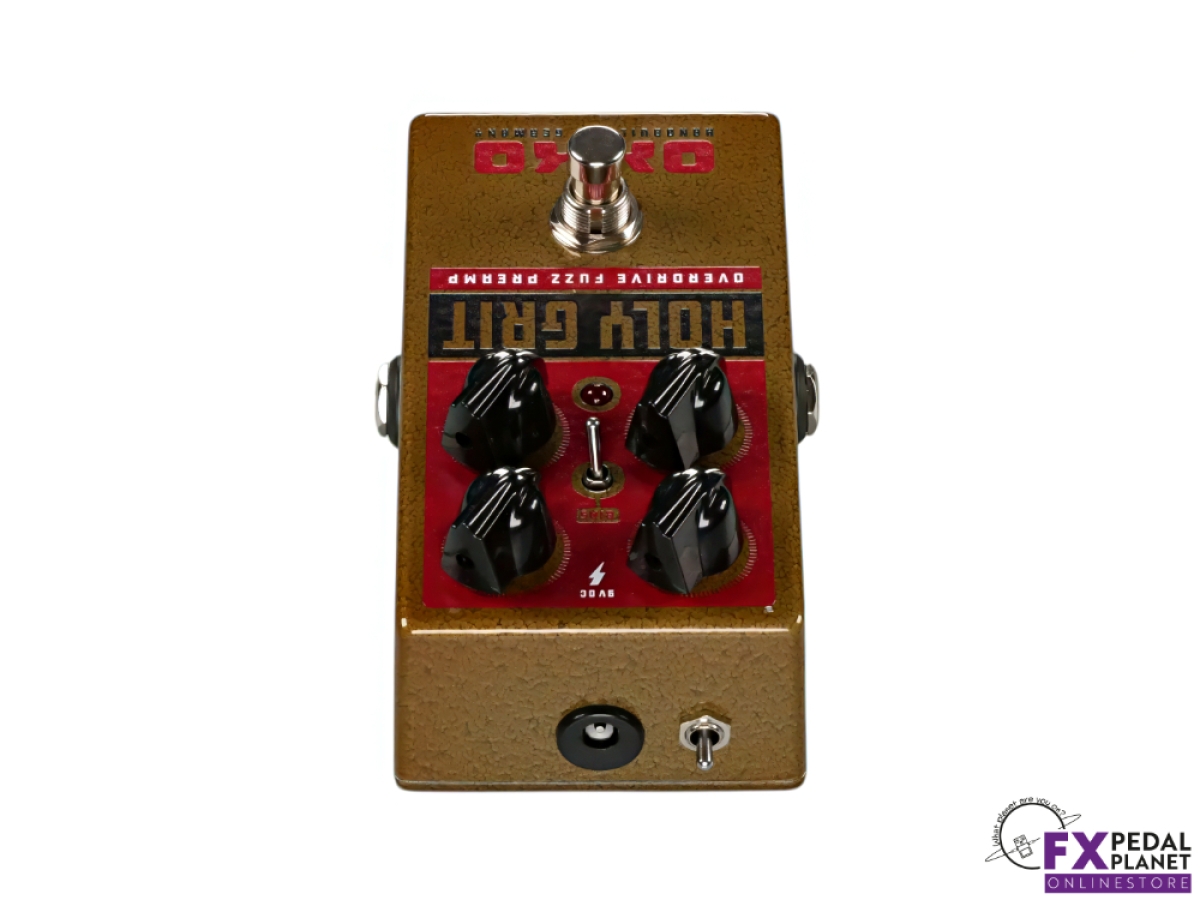

UP: Buffered mode. Don’t worry about the placement in your signal chain, just activate the HG’s special buffer and you’re set. Gives a little extra edge and presence in the mix compared to
DOWN: Unbuffered mode. If you prefer the classic way, just connect your guitar straight to the HG without the buffer. Slightly darker, more resonant tone, better cleanup with the guitar volume.
Component Listing and Tech Spec
High quality components throughout
9V centre negative power
Length: 120 mm / 4.7 in
Width: 65 mm / 2.5 in
Height : 41 mm / 1.6 in
