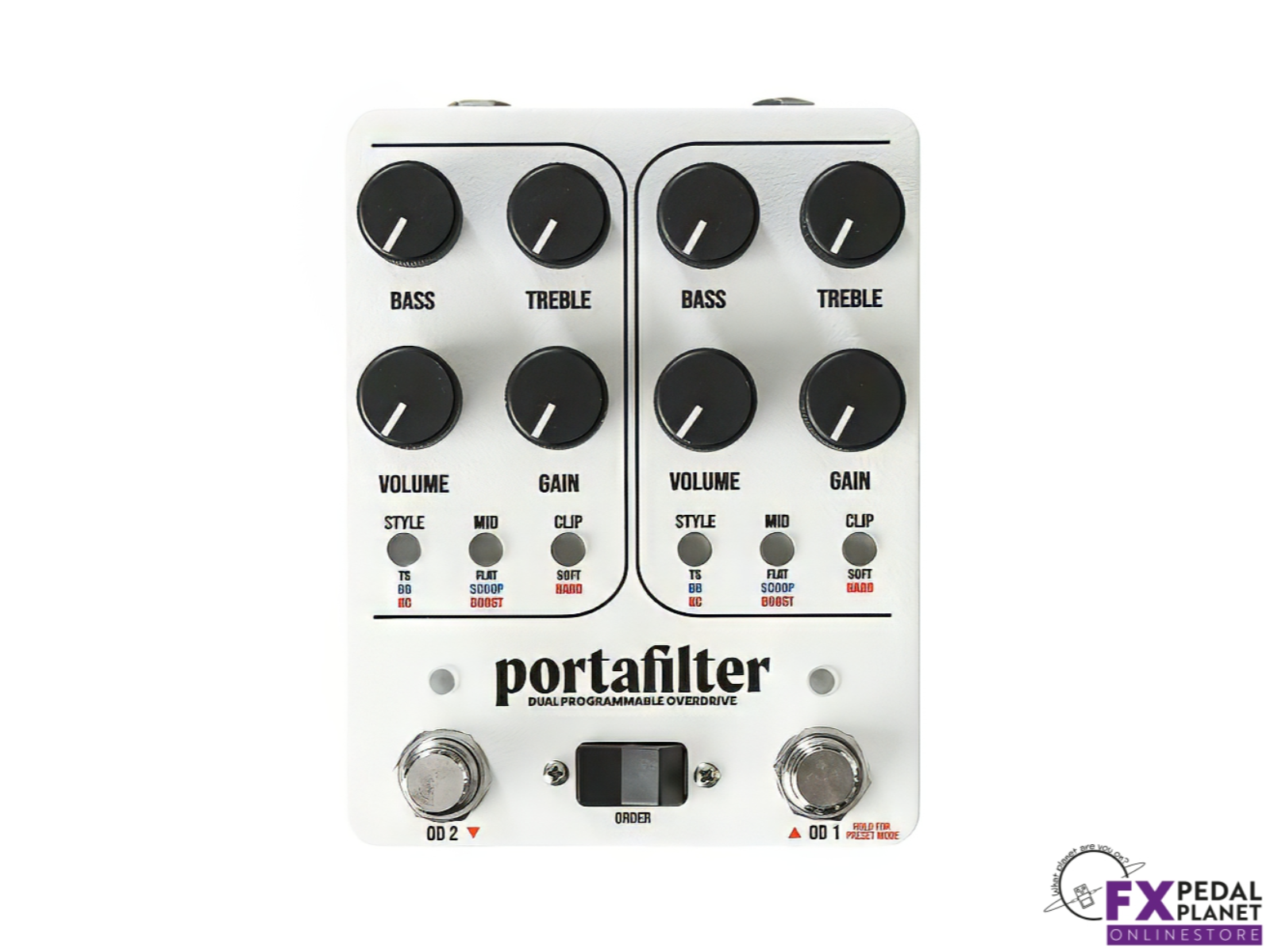

Coffee Shop Pedals Portafilter

Portafilter

£349.00

Highlights

• Dual channel analogue overdrive with TS, Bluesbreaker or Klon style voices on each side
• Stack both channels or swap their order for fuller, layered drive tones
• Three band EQ and Mid Flat/Scoop/Boost shaping for detailed guitar and bass tone control
• Soft or hard clipping options for smooth drive or saturated distortion with added sustain
• Fully analogue signal path with digital control for preset recall and precise operation
• Save six onboard presets, expand to twenty with full MIDI control of all parameters
• True bypass switching keeps your clean signal clear when the pedal is off
• Bright LEDs display active drive style, clipping mode and mid setting for instant visibility
• Rugged all metal enclosure with clear graphics, made for studio, rehearsal and live work
• 9V DC centre-negative power, 350 to 500 mA draw, delivering low noise, high headroom performance
• Standard ¼" input/output and 3.5 mm MIDI input for easy pedalboard integration
• Quality components ensure consistent tone, low noise and reliability across all settings
• Supported by a manufacturer warranty for long term confidence and dependable use

Description

The Coffee Shop Pedals Portafilter is a dual channel overdrive pedal built for guitarists and bass players who want classic drive tones, or something entirely their own, with modern convenience and deep flexibility. It houses two fully independent overdrive circuits in a single, compact unit: run both channels the same, set up completely different voices for contrast, or stack them to create rich, layered distortion.

When you plug in, the Coffee Shop Pedals Portafilter gives you access to three legendary overdrive styles per side, the smooth, mid forward grit of a “TS” (Tube Screamer type), the open, amp like breakup of a “BB” (Bluesbreaker style), and the clear, harmonically rich tone associated with “KC” (Klon style) overdrive. That means you can dial anything from a subtle boost or light overdrive to full on saturated crunch. Engage both channels together, and you get complex, stacked tones that sound closer to a full studio setup than a single stompbox.

Through the 3 band EQ on each drive, Bass, Treble and a Mid control (Flat, Scoop or Boost) you shape your tone to taste: tighten the low end, make the highs shimmer, scoop mids for a modern vibe, or beef up mids for rhythm or lead presence. The selectable clipping (soft or hard) gives you control over the character: soft for creamy, amp style drive; hard for more aggressive distortion with extra saturation, sustain and compression, ideal when you want lead tones that cut through a dense mix.

Playing the Coffee Shop Pedals Portafilter feels versatile and reassuring. Footswitches engage each overdrive independently, or together for stacked tones and holding the main footswitch lets you scroll through presets. LEDs show exactly which overdrive style, clipping mode, and EQ configuration is active. That clarity is useful whether you’re rehearsing at home, recording in studio, or performing live: no guesswork when you switch settings mid gig.

Under the hood, the Coffee Shop Pedals Portafilter maintains a circuit that generates warmth, dynamics and responsiveness of traditional overdrive circuits. At the same time, digital control enables saving and recalling sounds instantly: six tones onboard, and up to twenty when connected via MIDI. Every parameter, from gain and EQ to clipping and style, is MIDI controllable, so you can automate tone changes or integrate the Portafilter into a larger rig for flexible performance control.

The build is robust and practical: a true bypass circuit preserves your clean tone when the pedal is off; standard ¼" input/output jacks and a 9 V DC negative centre power input make it easy to slot into any pedalboard; and the outer enclosure is built to withstand regular use, whether in the studio, home rehearsal or on the road.

Visually, the Coffee Shop Pedals Portafilter’s layout is straightforward and intuitive. The bright LED pushbuttons give instant feedback on which drive type, clipping mode, and EQ mid mode you’ve selected, so you always know exactly how your tone is configured at a glance. That kind of clarity makes a difference whether you’re tweaking quietly at home or switching tones under stage lights.

In short: the Coffee Shop Pedals Portafilter dual overdrive is more than just another drive pedal, it’s a flexible tone workstation. Whether you want a light boost, classic overdrive, thick rhythm crunch, or stacked dual drive leads, this pedal covers it all and does so with the convenience of presets and MIDI control, without losing the soul of analogue drive. It’s an ideal choice for players who want one pedal that can handle many roles, from subtle texture to full blown distortion.

Controls

• OD1 FOOTSWITCH: Activates the first overdrive channel; hold it to cycle through saved presets
• OD2 FOOTSWITCH: Switches on the second drive channel, or stacks with OD1 for richer dual drive tones
• ORDER SWITCH: Flips the order of channel stacking, giving you control whether Drive 1 leads into Drive 2 or vice versa, useful for dramatic tonal shifts between settings
• STYLE BUTTON: Chooses between TS (Tube Screamer), BB (Bluesbreaker) or KC (Klon style) voicings for instant tonal variation
• MID BUTTON: Selects Mid EQ mode: Flat, Scoop or Boost, letting you shape mid range presence instantly for rhythm or solo work
• CLIP BUTTON: Toggles between soft or hard clipping; soft for creamy overdrive, hard for saturated drive with extra sustain
• VOLUME: Controls overall output level so you can balance the pedal’s output with your clean signal
• GAIN: Adjusts drive intensity from light boost, through warm overdrive, up to gritty distortion
• BASS: Boosts or cuts low-end response for tighter bass or fuller bottom end, handy for guitar or bass players alike
• TREBLE: Adjusts high end clarity and bite, from smooth warmth to bright, cutting tones

Components and Technical Specifications

• Robust components and analogue circuitry designed for low noise, high integrity performance
• Quality capacitors and resistors selected for tonal accuracy and dependable long-term use
• Digital control system manages presets and MIDI functions without colouring the analogue signal
• Two independent overdrive engines selectable as TS, BB or KC style circuits
• True bypass switching keeps your clean tone intact when the pedal is off
• Onboard memory stores six tones, expandable to twenty via MIDI control
• Full MIDI control for preset changes, parameter adjustment and performance automation
• 3.5 mm MIDI input supports compact routing on modern boards
• High current requirement (500 mA) supports advanced processing and stable operation
• Strong voltage headroom accommodates single coil and high output pickups with ease
• Powered by standard 9V DC centre negative power supply (not included)
• Battery operation is not supported
• Current draw measured using a 1Spot mA meter:
• Bypass (typical): Approximately 350 mA
• Engaged (maximum): Approximately 500 mA

Current draw may vary slightly depending on control settings, circuit behaviour, and active features such as gain stages, modulation, filtering, or reverb tails. For best performance, use a high quality isolated power supply that matches the pedal’s current requirements. Always refer to the manufacturer’s recommendations, as incorrect powering may cause damage.

Enclosure Dimensions

• Depth: 119 mm / 4.7 in
• Width: 94 mm / 3.7 in
• Height: 42 mm / 1.7 in

Weight

• 213 g
• 0.47 lbs
