Dawner Prince Boonar Tube Deluxe Ltd

Boonar Tube Deluxe Ltd

£1,155.00

Product unavailable. Secure your order by pre-ordering.

Highlights

• Studio grade magnetic drum echo pedal recreating the Binson Echorec 2 T7E experience
• Hybrid DSP and real dual triode tube circuit delivers authentic warmth, depth and dynamic response
• Multi head delay with 16 playback combinations for rhythmic repeats, swells and ambient textures
• Wide delay range from 12 ms to 950 ms suits slapback, rhythmic delays and spacious soundscapes
• Touch sensitive feel reacts naturally to picking dynamics and input level
• Intuitive controls shape input gain, tone, repeats, modulation and delay time without menu fatigue
• Drum Age control adds subtle 3D movement to worn, warbling vintage character
• Swell and Repeats modes cover classic delay through reverb like, cavernous ambience
• Real EM81 Magic Eye valve and OLED screen provide clear visual feedback and fast navigation
• Presets onboard and via MIDI, plus MIDI clock, CC and PC for modern rig integration
• Balanced, transformer isolated wet output and tube buffered mono output suit stage and studio use
• Selectable true bypass or tube buffer bypass with optional trails preserves your core tone
• All metal enclosure, premium and NOS components built in limited batches for long term reliability
• Requires regulated 12V DC power; USB firmware updates and manufacturer warranty included

Description

The Dawner Prince Boonar Tube Deluxen Ltd is a studio grade magnetic drum echo pedal designed for musicians who want the sound, response and depth of the legendary Binson Echorec 2 Model T7E without the upkeep of a vintage machine. It recreates the four tap tube echo system that defined countless recordings of the 1960s and 70s, while expanding the concept with modern control, presets, MIDI and flexible routing. Built around a newly developed DSP magnetic drum engine, the signal path is brought to life with a real dual triode vacuum tube preamp and an authentic EM81 Magic Eye level indicator running at high plate voltage, giving players the character and behaviour of the original unit in a pedal format suited to stage and studio use.

Sonically, the Dawner Prince Boonar Tube Deluxen Ltd delivers rich, dimensional echoes that feel alive under the fingers. Short settings produce crisp slapback and rhythmic multi tap repeats, while longer times open up into wide, blooming delays that hang in the air. The four virtual playback heads can be combined in up to sixteen different patterns, creating everything from classic single head echoes to complex, pulsing rhythmic textures. As the repeats build, they retain weight and clarity, with a natural roll off that mirrors the behaviour of a magnetic drum rather than digital repeats. Pushed harder, the tube front end introduces a warm, musical drive that becomes part of the echo itself, just like the original Echorec, making the repeats feel glued to the dry signal rather than sitting on top of it.

Playing through the Dawner Prince Boonar Tube Deluxen Ltd feels immediate and responsive. Picking dynamics translate directly into the delay response, and the pedal encourages hands on interaction. Turning controls while playing produces smooth, musical changes without abrupt jumps, inviting experimentation during performance or sound design sessions. The transition from clean echoes to swelling, almost reverb like washes happens naturally, and the pedal rewards subtle adjustments just as much as bold moves. Whether used as a set and forget delay or an instrument in its own right, it feels inspiring and tactile, especially when riding the edge of feedback or sculpting evolving soundscapes.

The control layout is designed to be intuitive while offering serious depth. The Input control sets the gain of the tube preamp feeding the record head, allowing the Dawner Prince Boonar Tube Deluxen Ltd to accept anything from low output pickups to hot line level signals. At lower settings it delivers warmth and body; turned up, it drives the tube into a smooth, harmonically rich overdrive that becomes part of the delay character. Bass/Treble shapes only the repeats, gently rolling off or opening up the top end in a way that mirrors the subtle tone control of the original unit. Echo Volume sets the level of the delay signal and works in balance with the Input control to keep the dry and wet relationship musical at all times. Length of Swell determines how many repeats are generated by the playback heads with feedback engaged, moving from single repeats through dense regeneration and into controlled self oscillation, where the echoes swell and interact in complex, organic ways. Drum Age introduces the character of a worn magnetic drum, from bright, precise repeats at lower settings to darker, blurrier echoes with gentle modulation as the control is increased. Drum Speed adjusts the virtual drum rotation, directly setting delay time from ultra short 12 ms echoes to expansive 950 ms delays, with stepped 10 ms changes or fine 1 ms adjustment by pressing and turning the encoder.

At the heart of the Dawner Prince Boonar Tube Deluxen Ltd is a hybrid circuit that combines advanced digital modelling with genuine valve amplification. The updated DSP engine recreates the behaviour of a rotating magnetic drum and four playback heads, while the real vacuum tube preamp adds compression, harmonic content and dynamic response that only valves provide. Digital control over the analogue parameters allows precise recall and consistency, while still retaining an organic feel. Two preamp modes are available, with an Original setting that mirrors the darker, lower output character of the vintage unit, and a Modern option that offers a brighter, more dynamic response for contemporary rigs.

The Dawner Prince Boonar Tube Deluxen Ltd is housed in a robust all metal enclosure built for demanding use. Its solid construction and premium components make it suitable for touring, studio installation and long term ownership. The enclosure design allows proper ventilation for the valve circuitry, and the pedal benefits from a short warm up period to reach its best operating state.

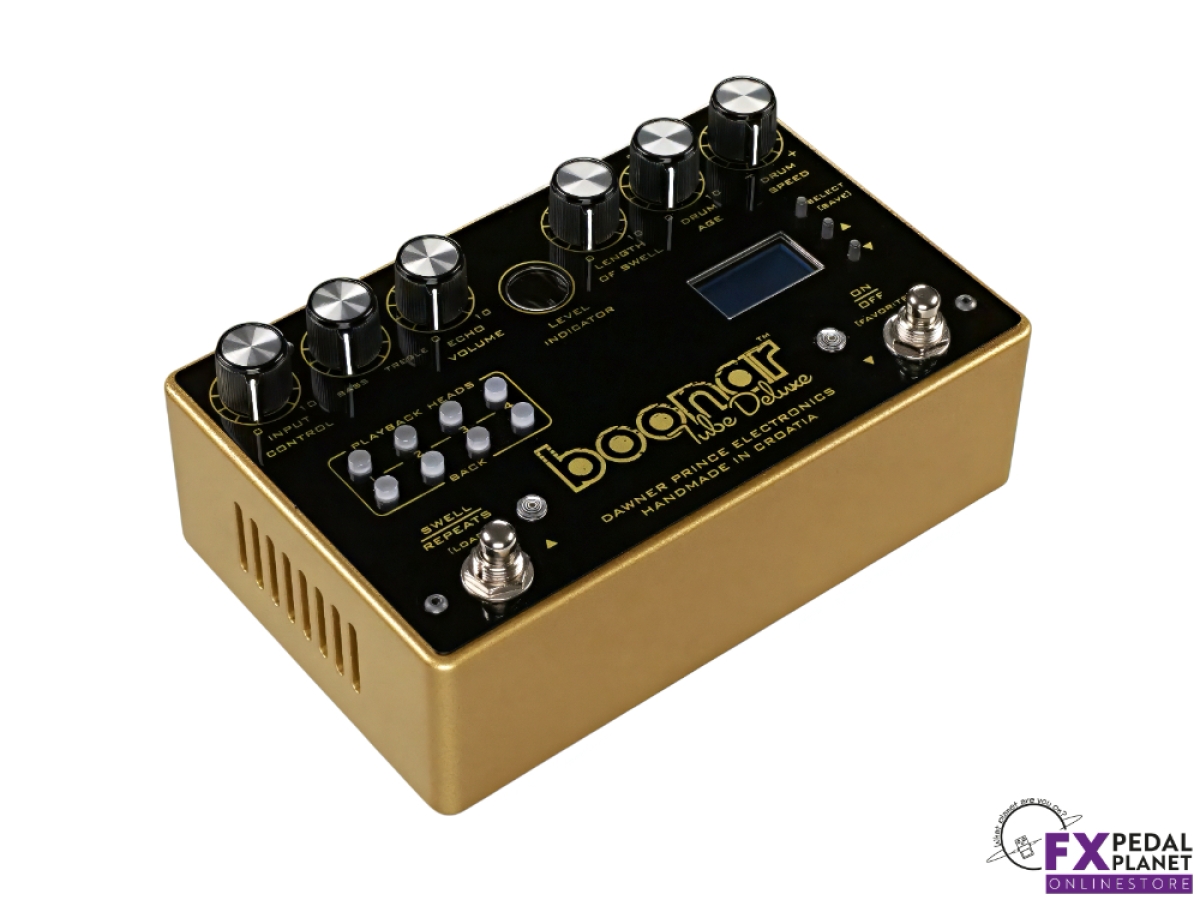

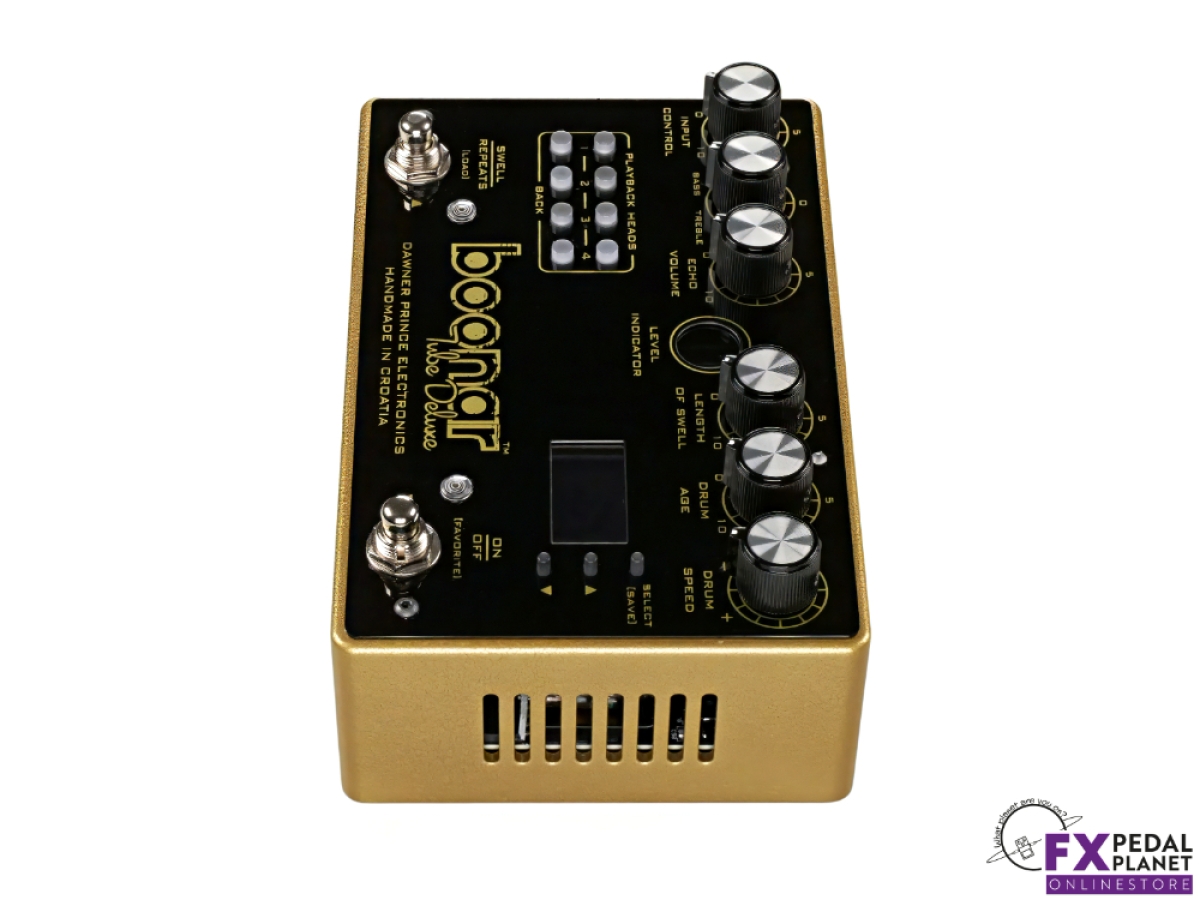

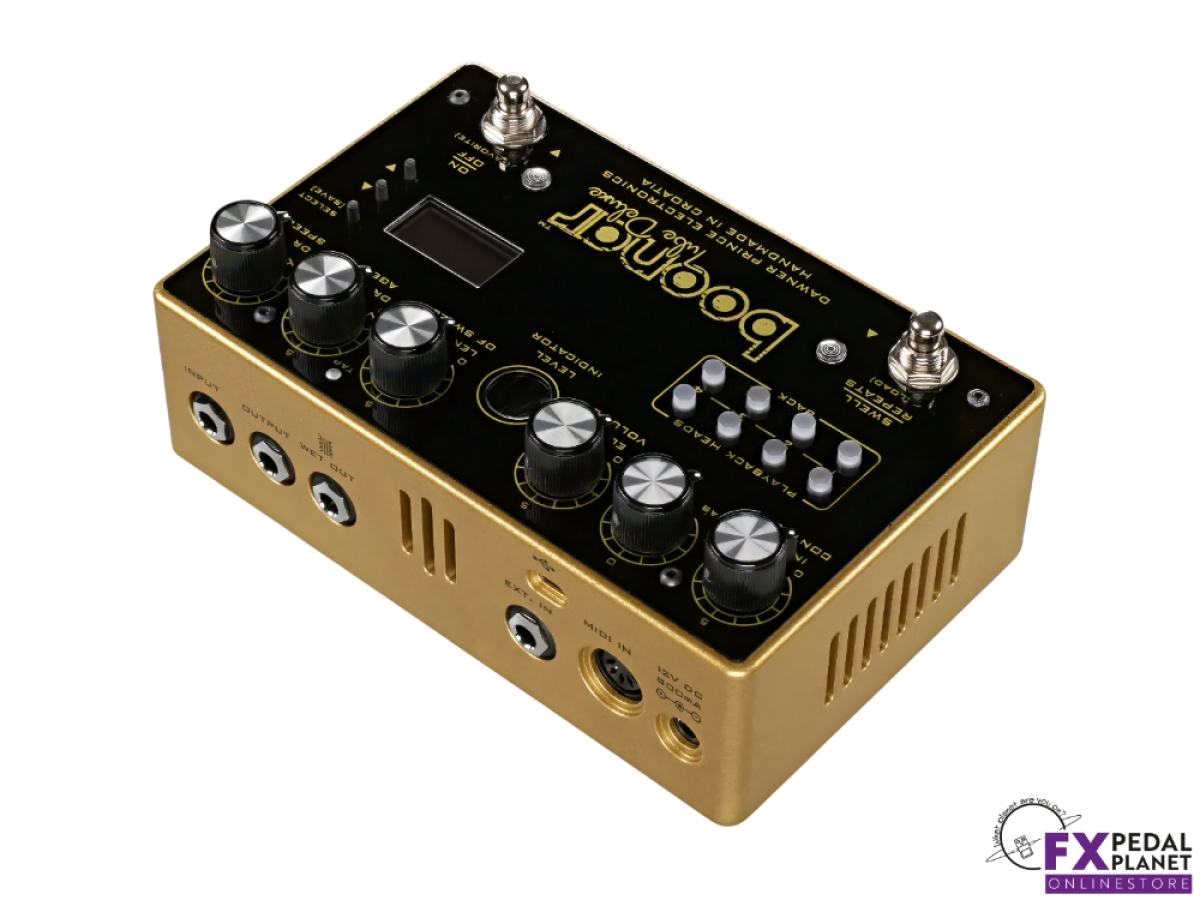

Visually, the Dawner Prince Boonar Tube Deluxen Ltd nods directly to its inspiration. The metallic gold finish and glassy black control panel recall the look of the original Echorec, while the layout remains clear and practical. Playback head and feedback switches are clearly marked and illuminated, making it easy to see complex delay configurations at a glance. The Magic Eye tube adds both function and character, glowing and expanding as input level increases, while the OLED screen provides clear feedback on delay time, presets, tap divisions and system settings without clutter.

LED indicators play an important role in day to day use. Playback head buttons light up when engaged, the Swell mode indicator shows when the pedal is in its ambient reverb like mode, and the tap tempo LED flashes in time when an external tap switch is connected. These visual cues make it easy to stay oriented on a dark stage or during a busy session.

The bypass system is fully configurable, offering relay based true bypass or a tube buffer bypass mode. In tube buffer mode, the preamp and output buffer remain active even when the effect is off, preserving the warmth and character of the Echorec style front end across the entire signal chain. Trails can be enabled or disabled in this mode, giving control over whether repeats continue after the pedal is switched off.

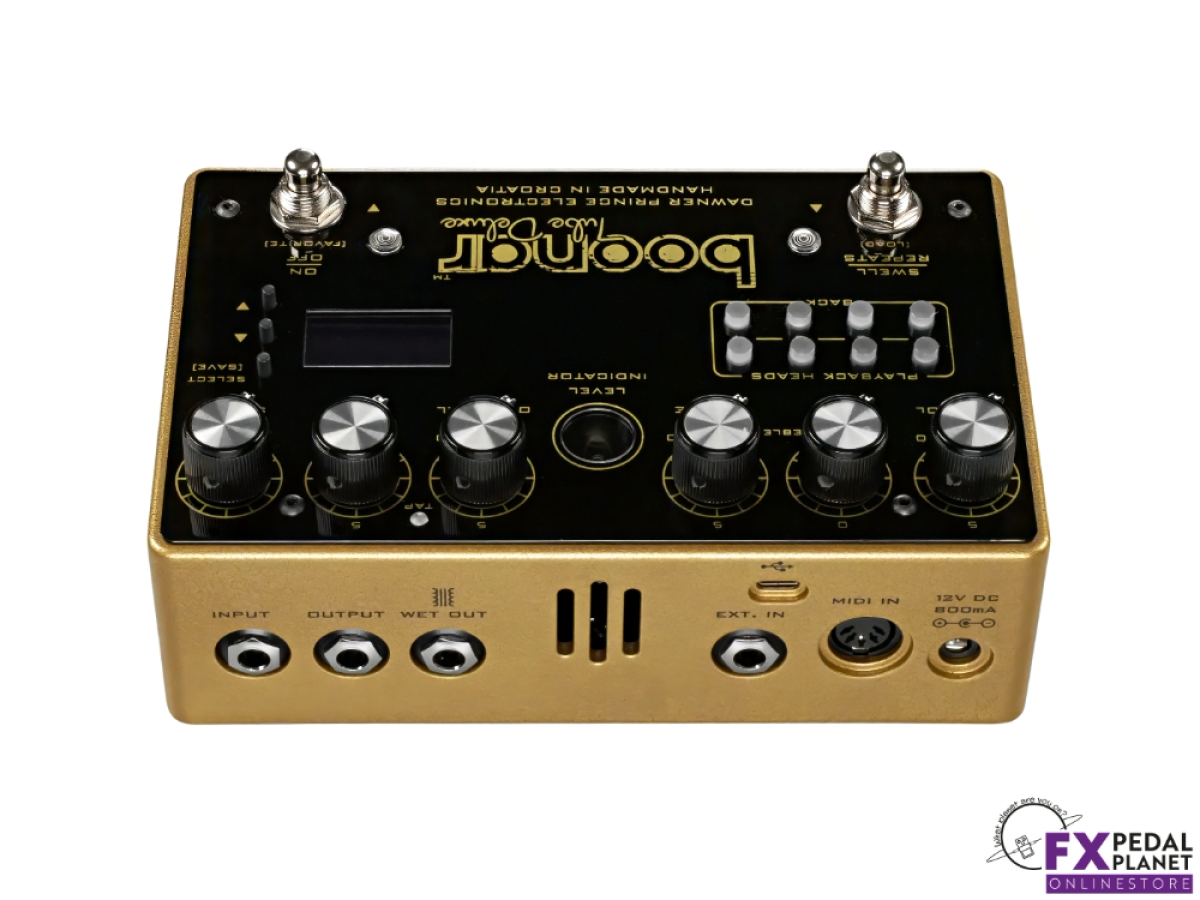

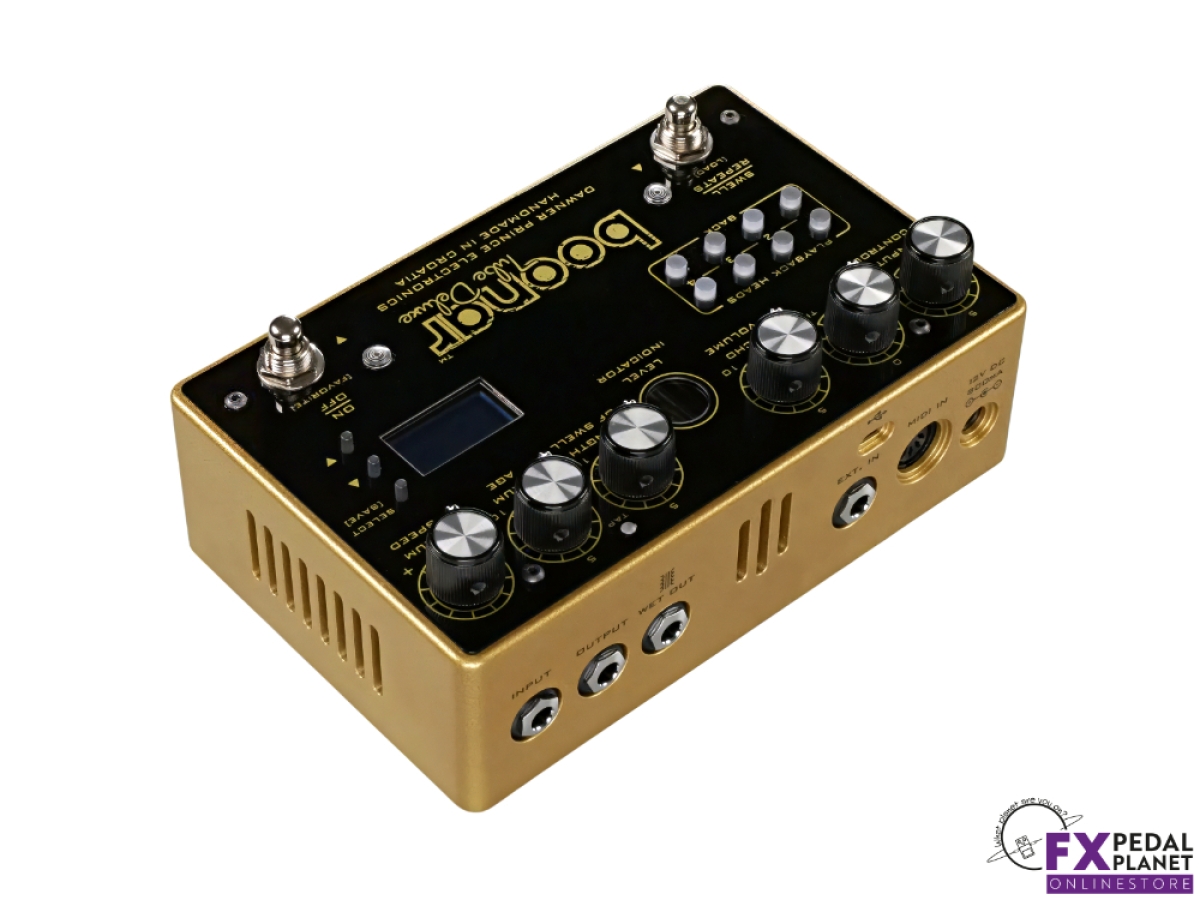

Connectivity is designed with real world pedalboards and studio setups in mind. Mono input and output jacks are positioned for clean cable routing, while a dedicated wet output provides a balanced, transformer isolated signal that is ideal for mixing desks and recording equipment, free from ground loops and noise. When the wet output is used, the main output automatically becomes a dry signal, making parallel setups simple. An external input allows connection of an expression pedal or the included Clicker remote switch, which can be assigned to tap tempo, mode switching or bypass duties. Full 5 pin DIN MIDI input supports program changes for up to 127 presets, continuous control over parameters and MIDI clock synchronisation, while a USB port is provided for firmware updates. Power is supplied via a 12 V DC centre negative input, with a quiet, high current supply included to meet the demands of the valve circuitry.

The Dawner Prince Boonar Tube Deluxen Ltd is backed by a manufacturer’s warranty that reflects its professional intent, offering reassurance that this is a long term investment built to last. Production is limited due to the use of scarce NOS components, and units are released in batches.

In summary, the Dawner Prince Boonar Tube Deluxen Ltd stands out as one of the most complete and authentic recreations of the Binson Echorec ever produced in pedal form. It combines the depth, warmth and movement of a classic magnetic drum echo with modern flexibility, presets and integration options, making it equally at home on a pedalboard or in a studio rack. For guitarists, bass players and producers who value expressive delay, rich harmonic character and hands on control, it offers a distinctive voice that goes far beyond a standard echo pedal.

Controls

• RIGHT FOOTSWITCH ON/OFF (FAVOURITE): Toggle effect or instantly recall your favourite preset mid-performance
• LEFT FOOTSWITCH SWELLS/REPEAT (LOAD): Switch repeats to ambient swells or load presets with confident timing
• INPUT CONTROL: Dial in clean warmth or tube grit; responsive to pick attack and instrument output
• BASS/TREBLE: Shape repeat brightness fast; keep low-end punch for bass without muddying echoes
• ECHO VOLUME: Set wet level precisely; balances naturally with Input for consistent mix across settings
• LENGTH OF SWELL: From tight slapback to bubbling self-oscillation; easy to park at the edge
• DRUM AGE: Add subtle 3D modulation to warbly vintage wear; perfect for character-rich repeats
• DRUM SPEED: Sweep 12–950 ms; stepped 10 ms changes, plus 1 ms fine-tuning by pressing
• PLAYBACK HEADS: Build rhythms instantly; 16 head combinations with clear, tactile amber feedback
• BACK: Switch feedback per head; create evolving multi-tap patterns without menu-diving
• SELECT/SAVE: Quick menu selects; hold to store your sound, keeping tones repeatable gig-to-gig
• UP/DOWN: Navigate the OLED quickly; deep options stay accessible without slowing down sessions

Components and Technical Specifications

• Hybrid DSP and real valve signal path delivers authentic magnetic drum echo behaviour
• Dual triode tube preamp runs at high plate voltage for headroom and dynamic response
• EM81 Magic Eye valve provides true analogue level indication and vintage operating feel
• 24 bit ADC/DAC ensures detailed repeats with low noise and strong signal integrity
• Selectable high or low impedance input suits guitars, basses, keys and studio sources
• Tube buffered low impedance output drives long cables and complex pedalboards cleanly
• Balanced, transformer isolated wet output prevents hum with mixers and recording interfaces
• Relay true bypass or tube buffer bypass preserves tone when the effect is disengaged
• DSP controlled analogue parameters give consistent tone recall across presets and sessions
• MIDI implementation supports clock sync, parameter control and up to 127 preset recalls
• Dedicated power ensures stable performance for tube and DSP circuits
• USB port allows firmware updates, extending lifespan and feature support over time
• Powered by standard 12V DC 800 mA centre negative noiseless power supply included
• Battery operation is not supported

Current draw may vary slightly depending on control settings, circuit behaviour, and active features such as gain stages, modulation, filtering, or reverb tails. For best performance, use a high quality isolated power supply that matches the pedal’s current requirements. Always refer to the manufacturer’s recommendations, as incorrect powering may cause damage.

Enclosure Dimensions

• Depth: 120 mm / 4.7 in
• Width: 188 mm / 7.4 in
• Height: 57 mm / 2.2 in

Enclosure Weight

• 1209 g
• 2.67 lbs

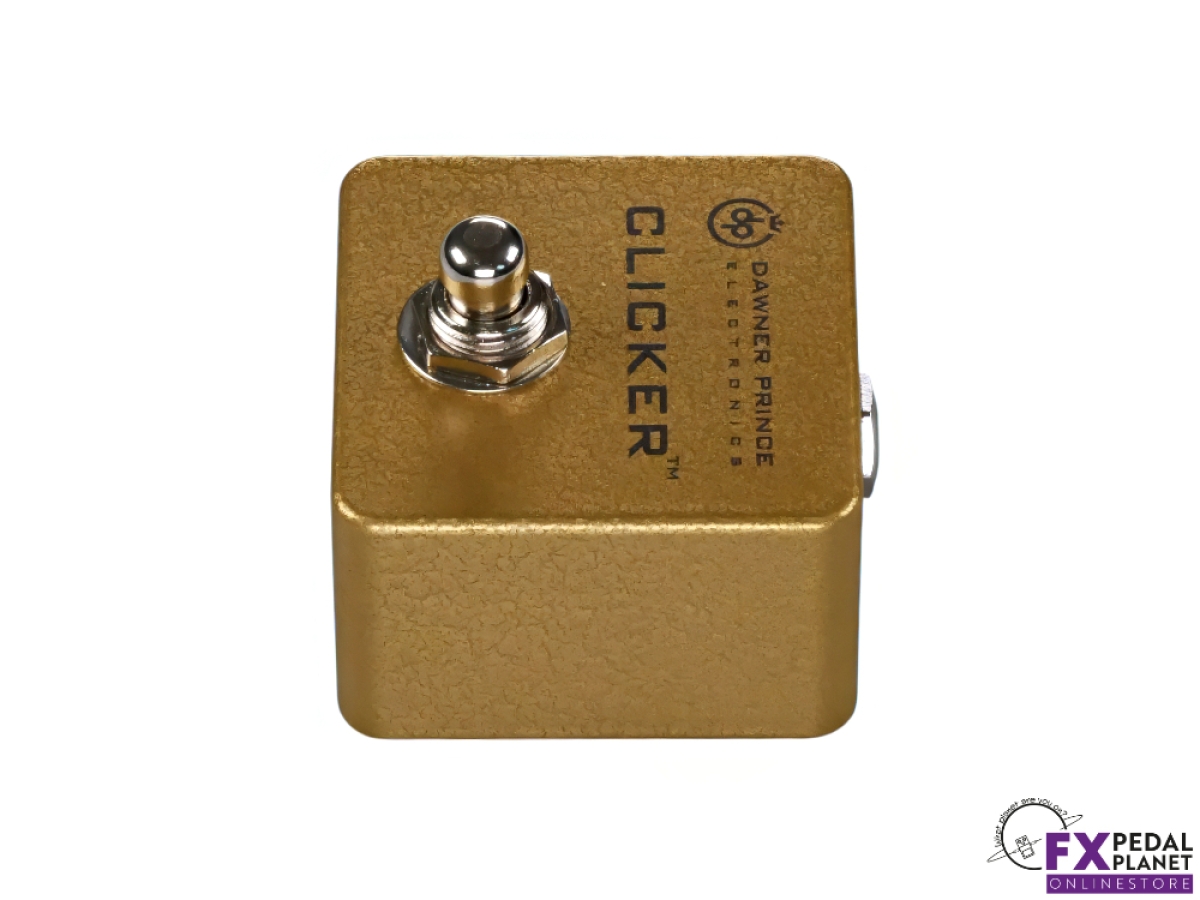

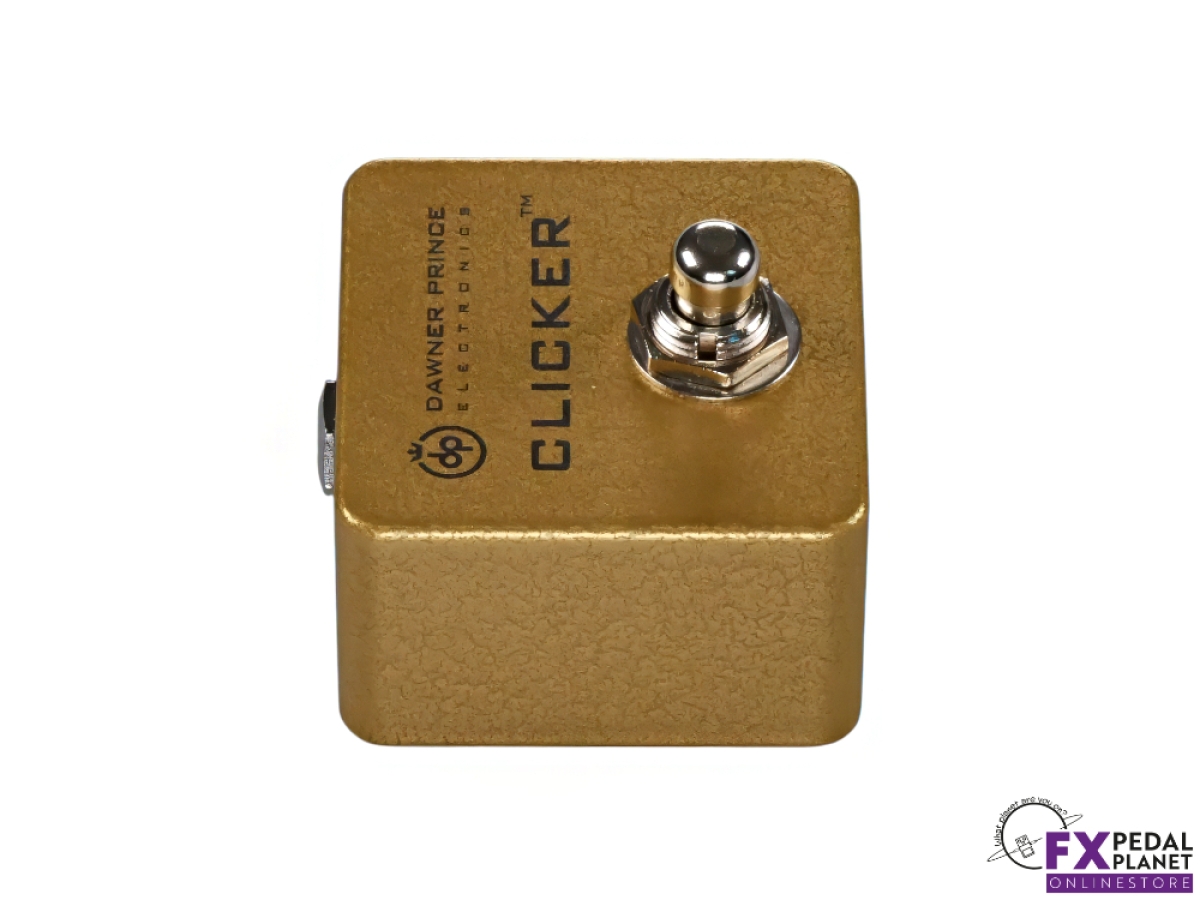

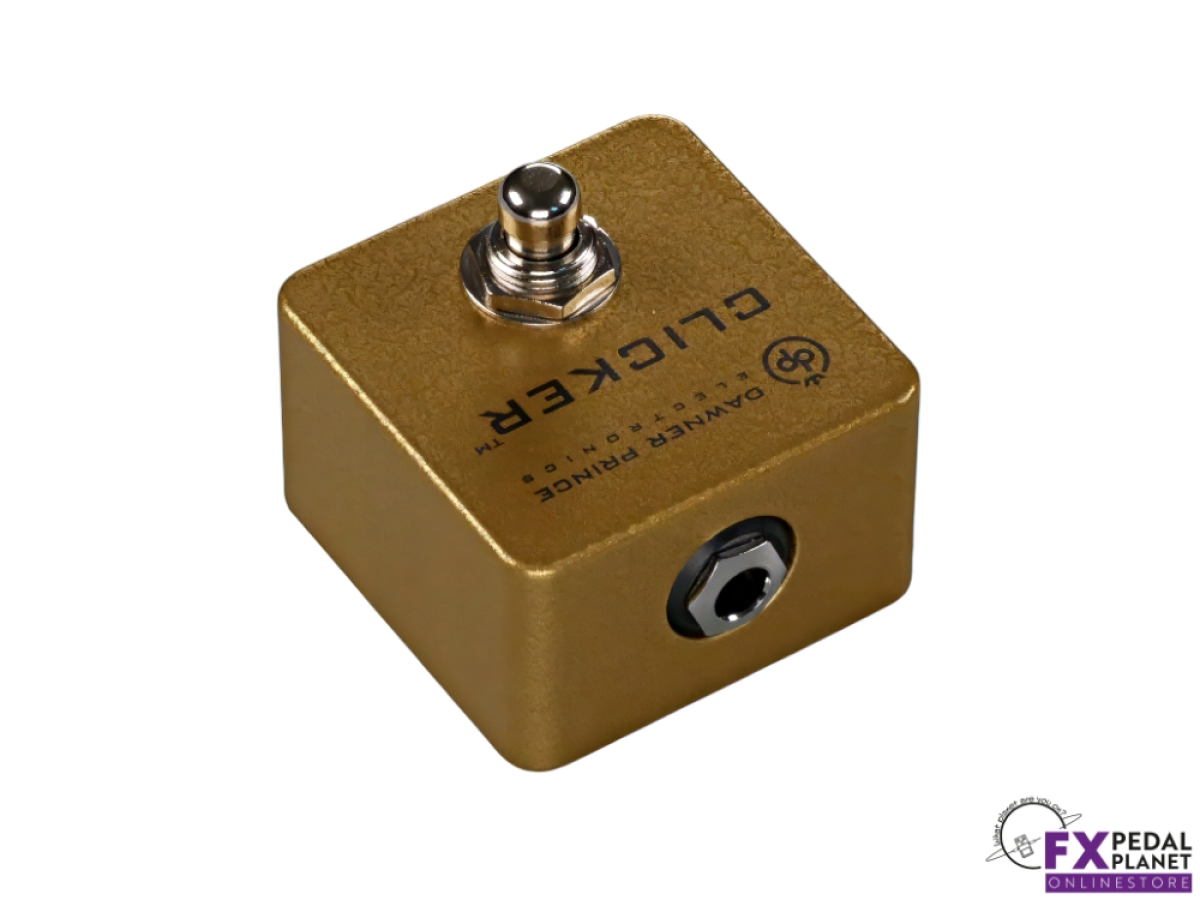

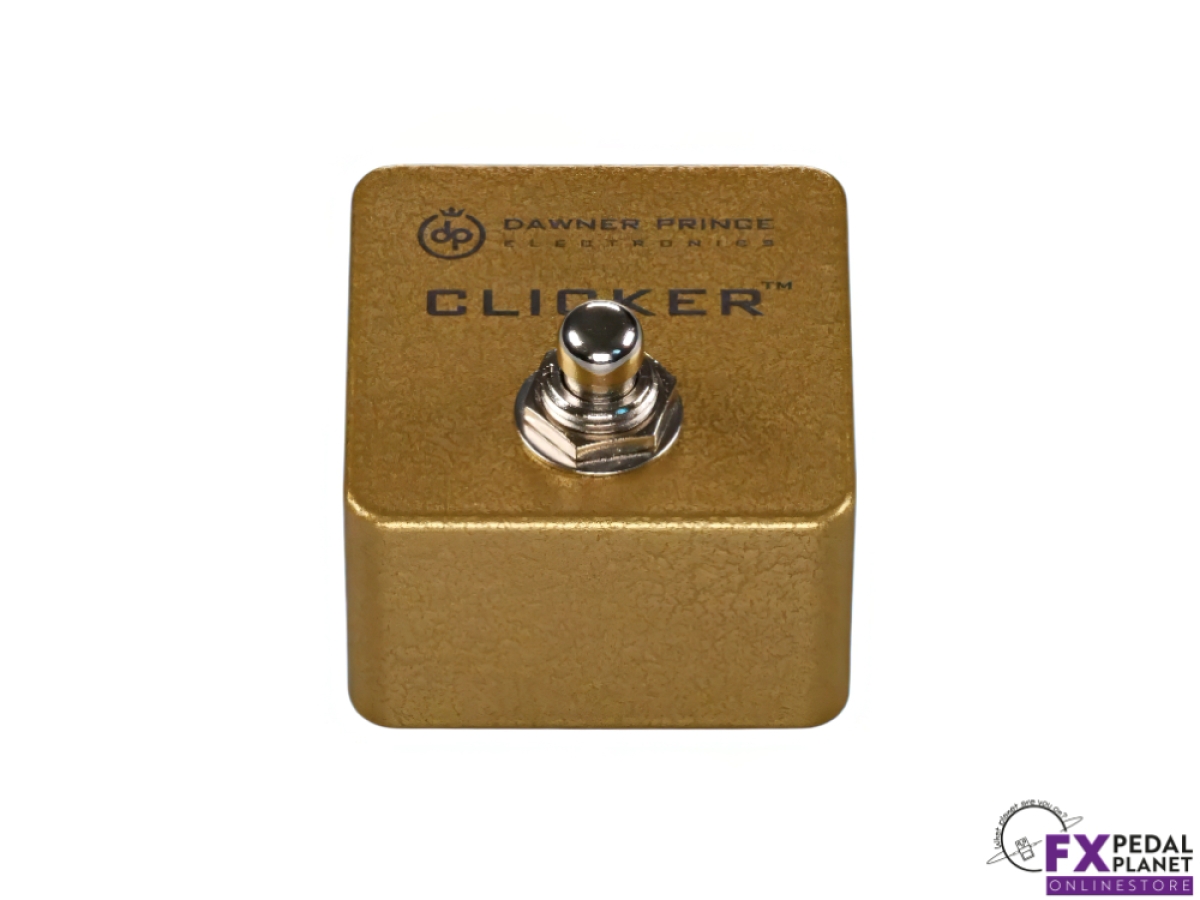

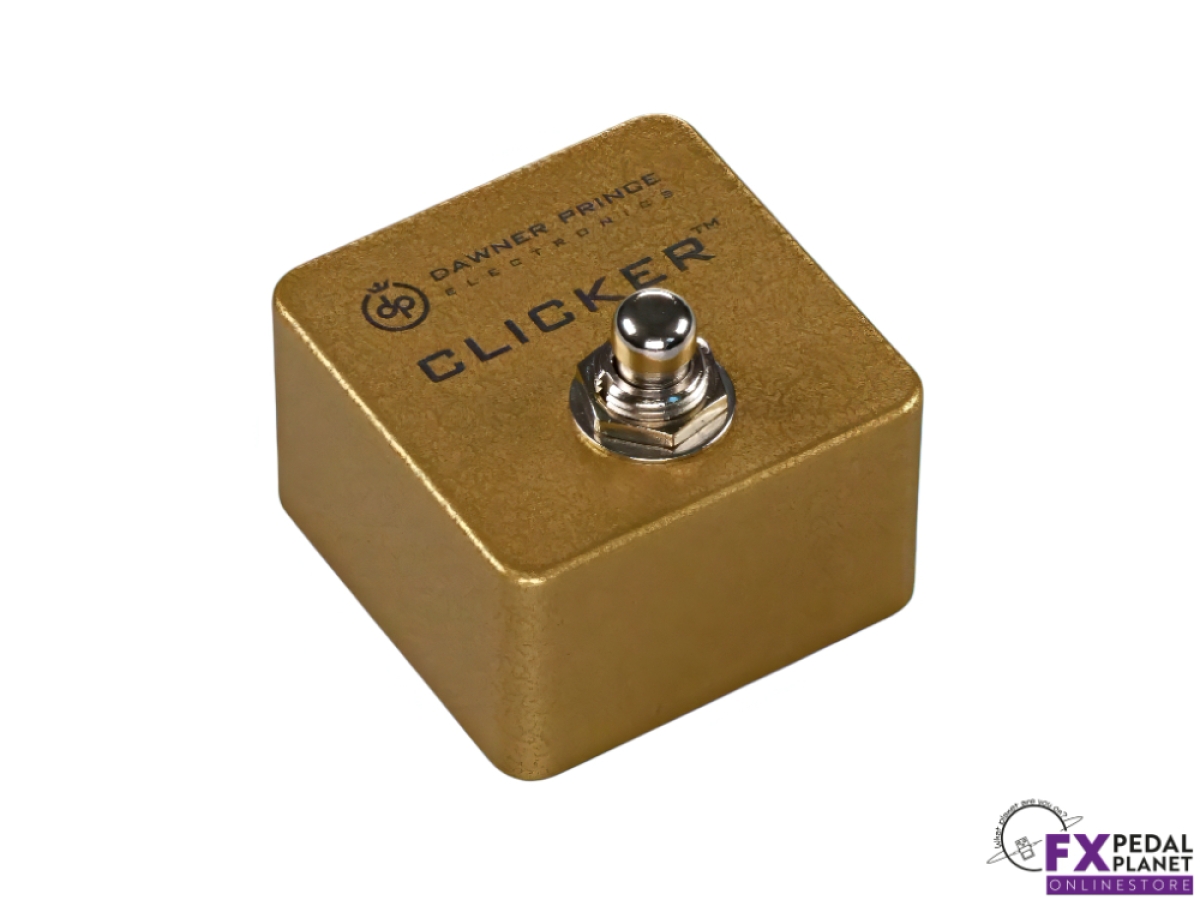

Clicker Dimensions

• Depth: 51 mm / 2.0 in
• Width: 51 mm / 2.0 in
• Height: 31 mm / 1.2 in

Clicker Weight

• 109 g
• 0.24 lbs
