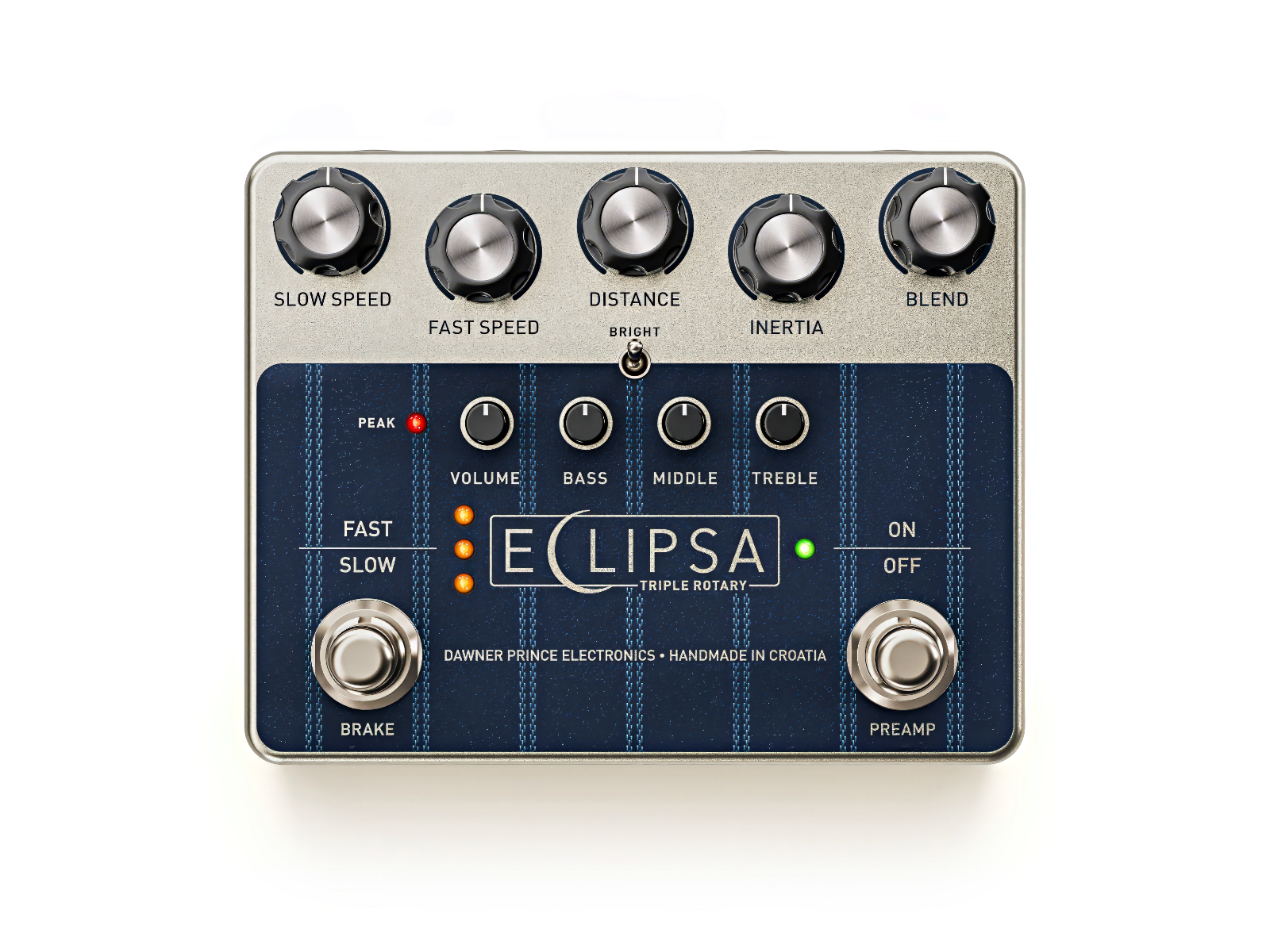

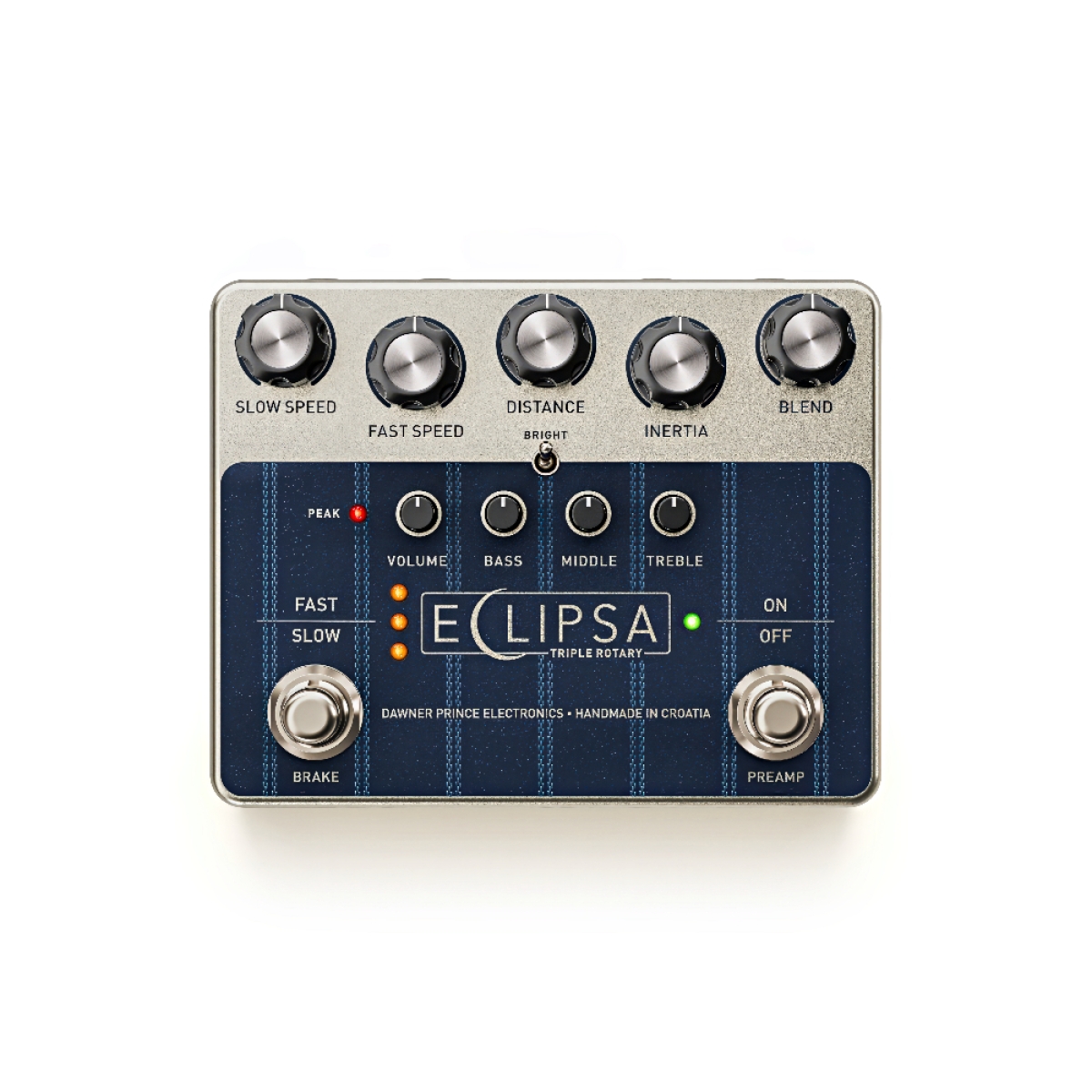

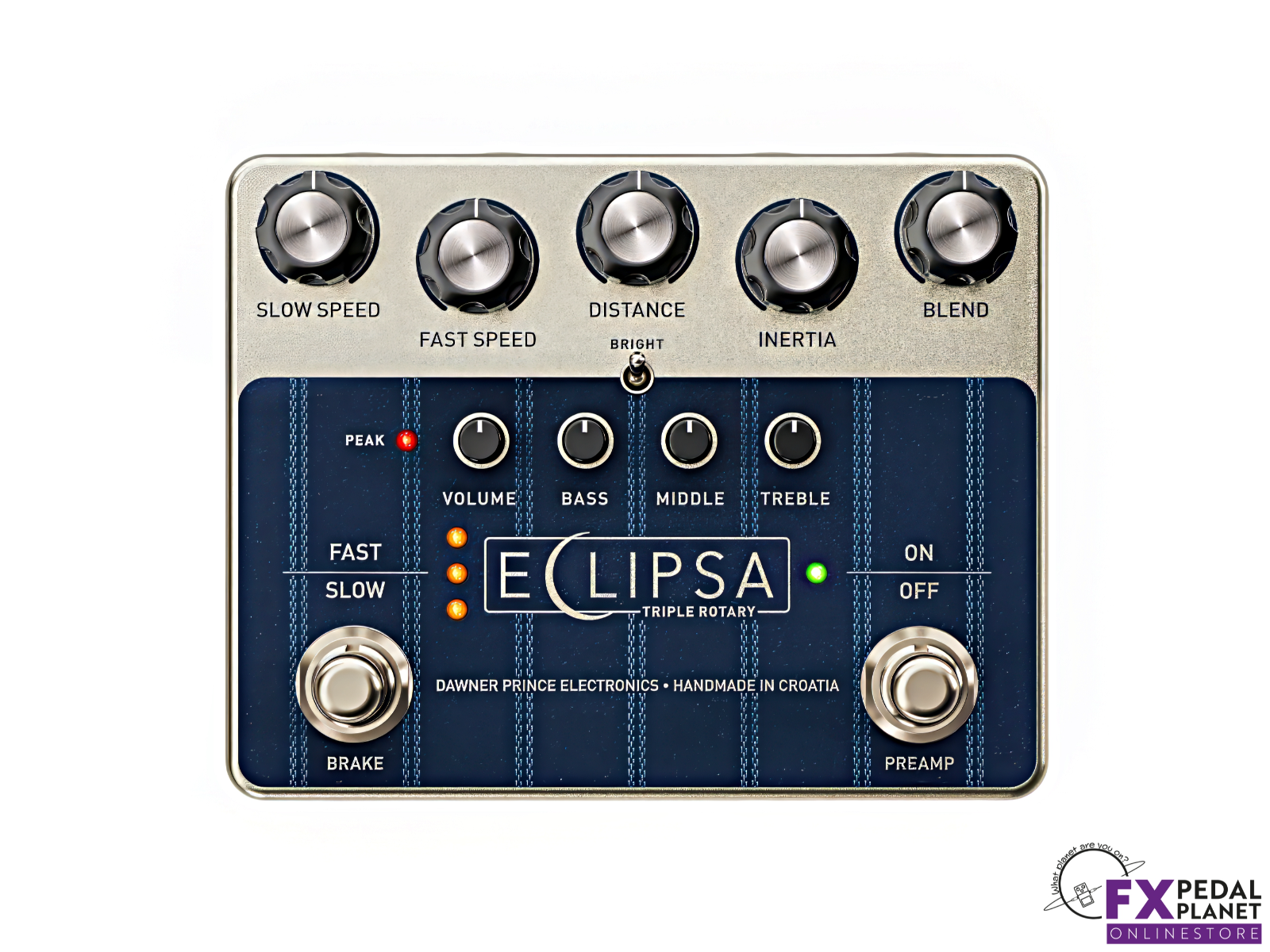

Dawner Prince Eclipsa

Eclipsa

£499.00

Product unavailable. Secure your order by pre-ordering.

Important

The first batch of Dawner Prince Eclipsa is available to dealers from end of May 2026. Therefore, delivery to FX Pedal Planet will be in April 2026.

Highlights

• Rotary cabinet emulator and FET preamp in one pedal
• Authentic Yamaha RA-200 style rotary movement and spatial speaker interaction
• Dynamic, touch-sensitive preamp response with tube-style warmth and clarity
• Full EQ section with Bass, Middle, Treble and Bright shaping
• Digital rotary engine paired with FET-based analogue-style preamp stage
• Handmade in Croatia
• Custom CNC-machined anodised aluminium enclosure for professional durability
• Clean, functional graphics with clear parameter visibility
• Multi-LED rotor and peak indicators for live visual feedback
• Magnetic relay bypass with selectable true or buffered operation
• Hybrid digital and FET analogue architecture
• Top-mounted audio, MIDI and power connections for pedalboard efficiency
• Covered by Dawner Prince manufacturer warranty

Description

The Dawner Prince Eclipsa is a rotary cabinet emulator and studio-grade preamp designed for players who want authentic moving-speaker modulation and rich front-end shaping in one compact unit. Built around a full recreation of the Yamaha RA-200 rotary cabinet system, Eclipsa captures the interaction between rotating and static speakers, creating the layered movement, width and harmonic complexity that made those cabinets such a defining sound in classic guitar recordings. It is equally at home on guitar and bass rigs, and works naturally in clean, edge-of-break-up and driven setups where dimensional movement and dynamic response matter.

Its rotary voice delivers the familiar swirl, pulse and spatial modulation associated with a real rotating speaker cabinet, but with far greater control and consistency. The transition between slow and fast speeds feels smooth and natural, while the Brake function adds another layer of expression by stopping the virtual rotor in place for dramatic tonal shifts. The blend between the rotary section and the static 4x12 speaker simulation allows players to dial in anything from subtle movement to full immersive rotation, making it practical in dense mixes and spacious stereo rigs alike.

Under the fingers, Eclipsa feels highly responsive and musical. The integrated FET-based Alembic F-2B style preamp gives the front end warmth, headroom and natural harmonic development, reacting to picking strength and guitar volume changes in a way that feels familiar to valve amp users. The Volume control can push the input harder for added saturation, while the Peak LED makes gain staging simple and reliable whether running into an amplifier, recording interface or complex switching system.

The control layout is practical and broad in range, covering rotary speed in both slow and fast modes, acceleration time, microphone distance and speaker blend, alongside a full active EQ section. Bass, Middle and Treble offer wide tonal shaping, while the Bright switch adds extra top-end detail at lower gain settings. This makes Eclipsa more than just a rotary effect, it functions as a complete front-end tone-shaping platform capable of tightening low end, pushing mids forward or opening up the top end depending on the rig.

Internally, Eclipsa combines a sophisticated digital rotary engine with a FET-driven analogue-style preamp topology, balancing realism, tonal integrity and long-term reliability. Full MIDI implementation allows deep rig integration with Control Change and Program Change support, while 127 onboard presets provide instant recall for live and studio use. Stereo outputs built from three virtual microphone positions give the rotary image convincing width and depth without losing focus.

Its custom CNC-machined anodised aluminium enclosure feels built for serious use, with excellent structural rigidity and long-term pedalboard reliability. The graphics are clear and stage-friendly, making quick adjustments easy under low lighting. Three dedicated LEDs display rotor movement and depth behaviour in real time, while the Peak indicator helps monitor preamp saturation. Magnetic relay switching keeps operation silent and dependable, with the option of true bypass or buffered preamp-on mode preserving signal integrity across different rig setups.

Top-mounted jacks and power input keep pedalboard layouts neat and efficient, while the expression input allows continuous real-time speed control for even more performance flexibility. For players chasing authentic rotary movement without the weight, maintenance and complexity of a physical cabinet, Eclipsa stands apart by combining convincing rotary realism, serious preamp shaping and full modern rig integration in one professional-grade pedal.

Controls

• SLOW SPEED: Sets rotor speed in slow mode for subtle movement and width
• FAST SPEED: Sets high-speed rotor rate for faster modulation and dramatic swirl
• DISTANCE: Adjusts virtual microphone placement for tighter or wider rotary character
• INERTIA: Controls acceleration and deceleration between rotary speed changes
• BLEND: Mixes rotary signal with static 4x12 speaker simulation
• VOLUME: Sets preamp output and controls input saturation level
• BASS: Adjusts low-frequency weight and warmth
• MIDDLE: Shapes midrange focus and note definition
• TREBLE: Controls top-end clarity and articulation
• BRIGHT: Adds extra high-end presence at lower volume settings
• INSTRUMENT/LINE: Matches input stage to guitars, synths and line-level sources
• BYPASS: Switches effect on or off, hold for true or buffered mode
• FAST/SLOW/BRAKE: Tap for speed switching, hold to engage brake mode
• EXT IN: Expression control for continuous rotary speed adjustment
• MIDI IN/THRU: Controls presets and parameters in MIDI-equipped rigs

Components and Technical Specification

• Full Yamaha RA-200 rotary cabinet recreation with rotating and static speaker interaction
• Integrated FET-based Alembic F-2B style preamp circuit
• Mono input with stereo output capability
• Three virtual microphone modelling for wider stereo image
• Magnetic relay switching for silent and reliable operation
• Selectable true bypass or buffered preamp mode
• Full MIDI implementation with Program Change and Control Change support
• 127 onboard presets plus live mode
• Expression pedal input for continuous speed control
• Instrument and line-level input compatibility
• Peak LED for accurate gain staging
• Custom CNC-machined anodised aluminium enclosure
• Designed and built in Croatia for professional touring and studio use
• Powered by standard 9V centre negative supply (not included)
• Battery operation not supported
• Power consumption approximately 140 mA

Current draw may vary slightly depending on control settings, circuit behaviour, and active features such as gain stages, modulation, filtering, or reverb tails. For best performance, use a high quality isolated power supply that matches the pedal’s current requirements. Always refer to the manufacturer’s recommendations, as incorrect powering may cause damage.

Enclosure Dimensions

• Depth: 90.93 mm / 3.58 in
• Width: 105.92 mm / 4.17 in
• Height: 39.88 mm / 1.57 in

Weight

• 449 g
• 0.99 lbs
