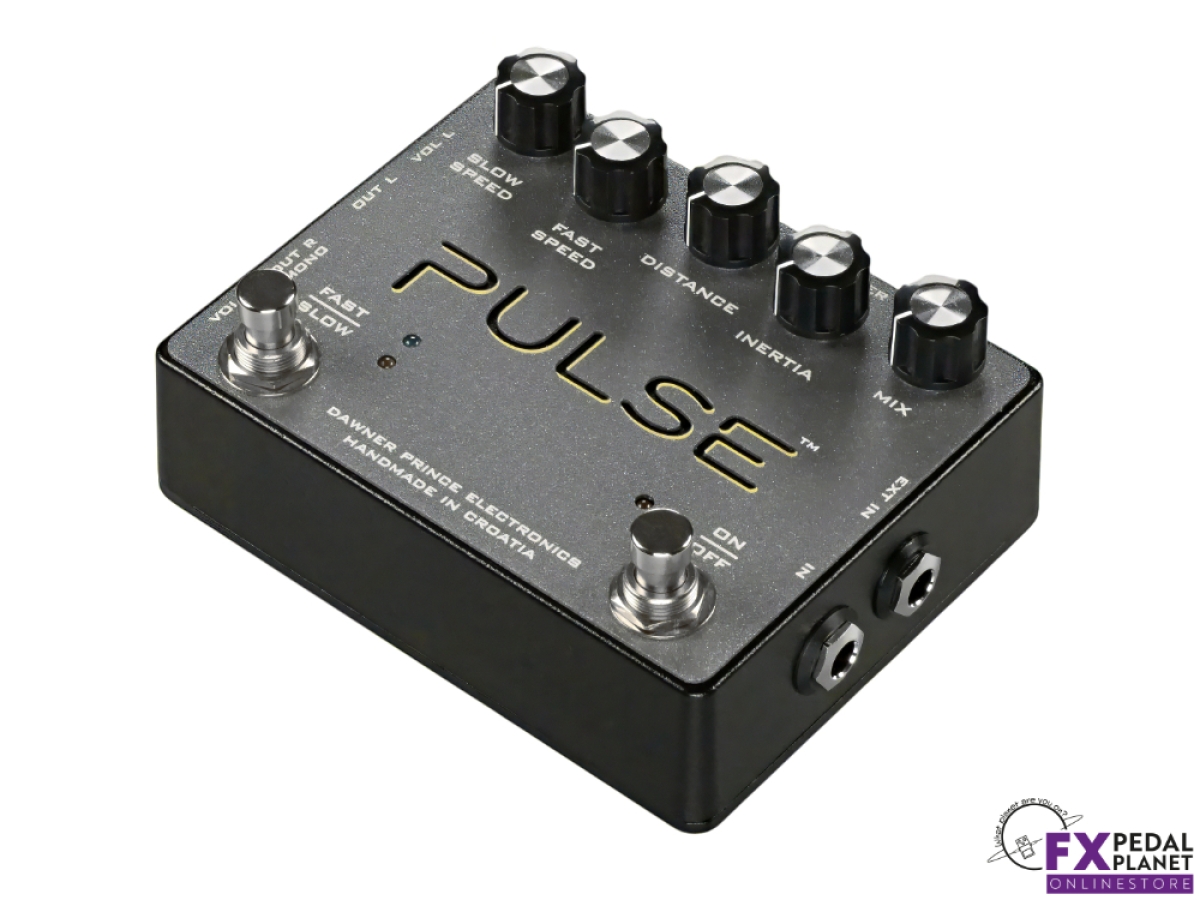

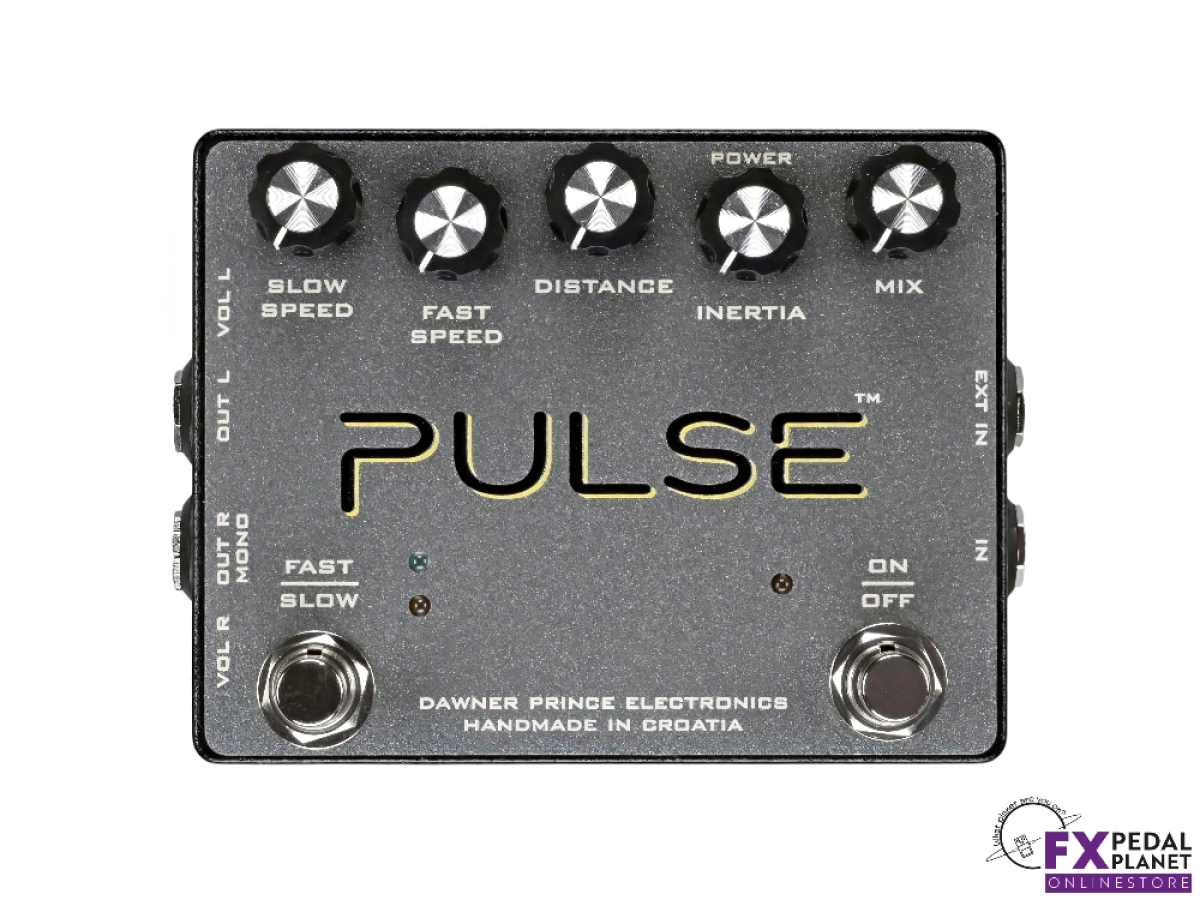

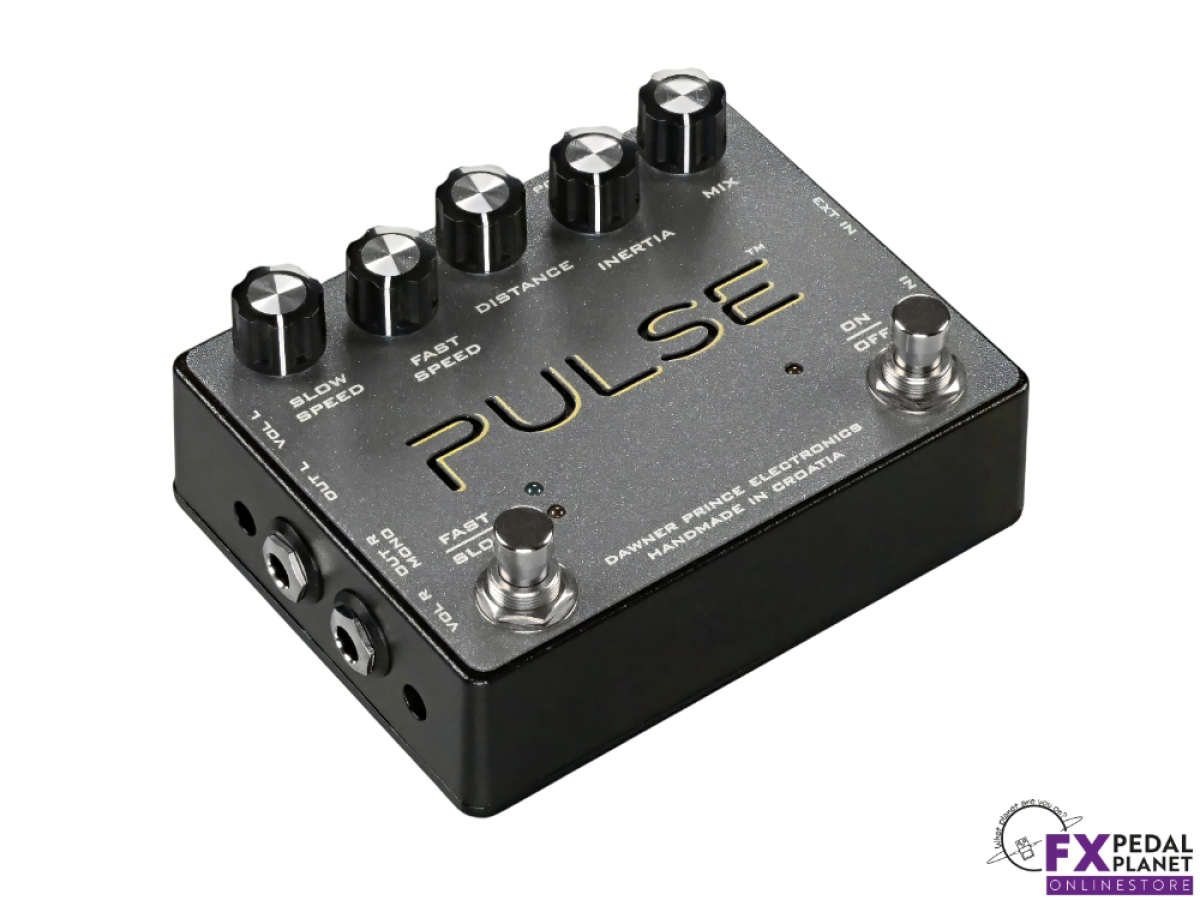

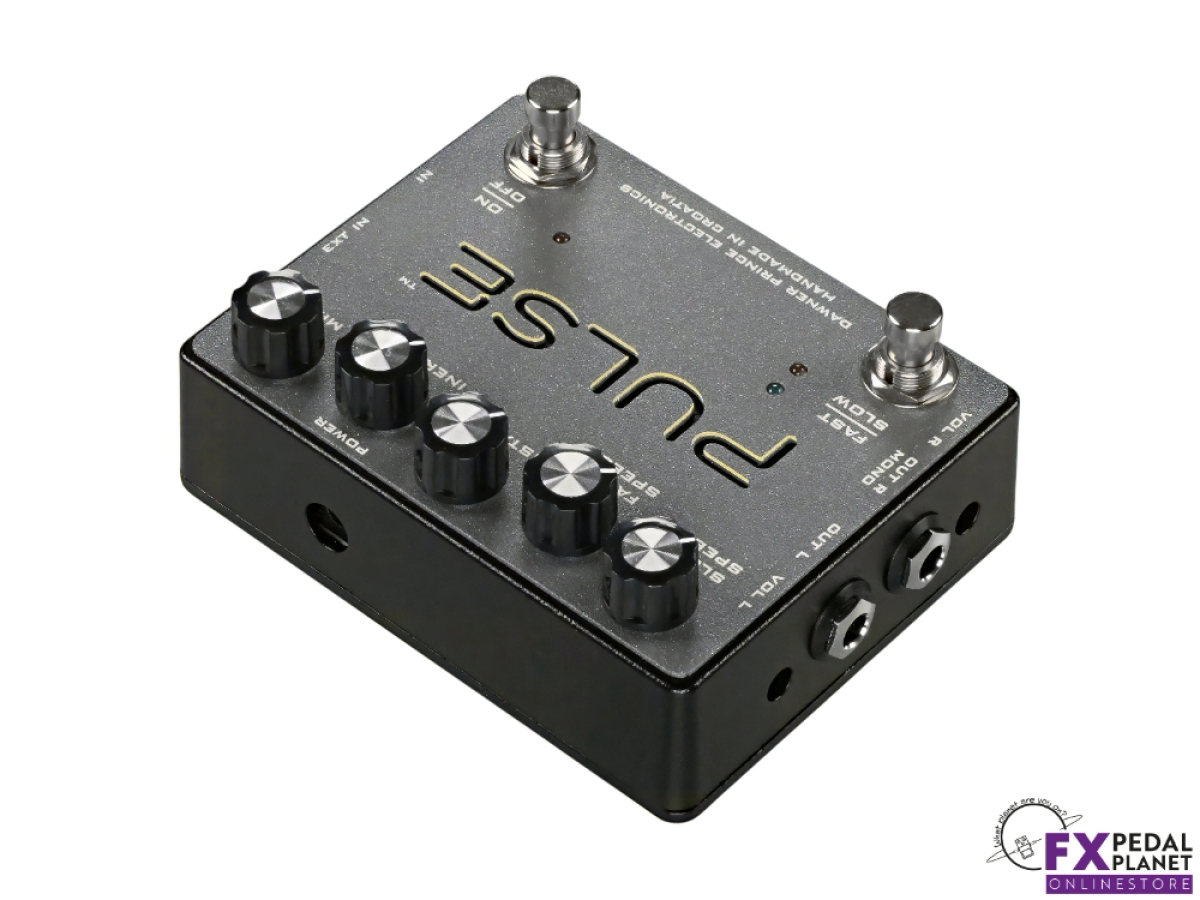

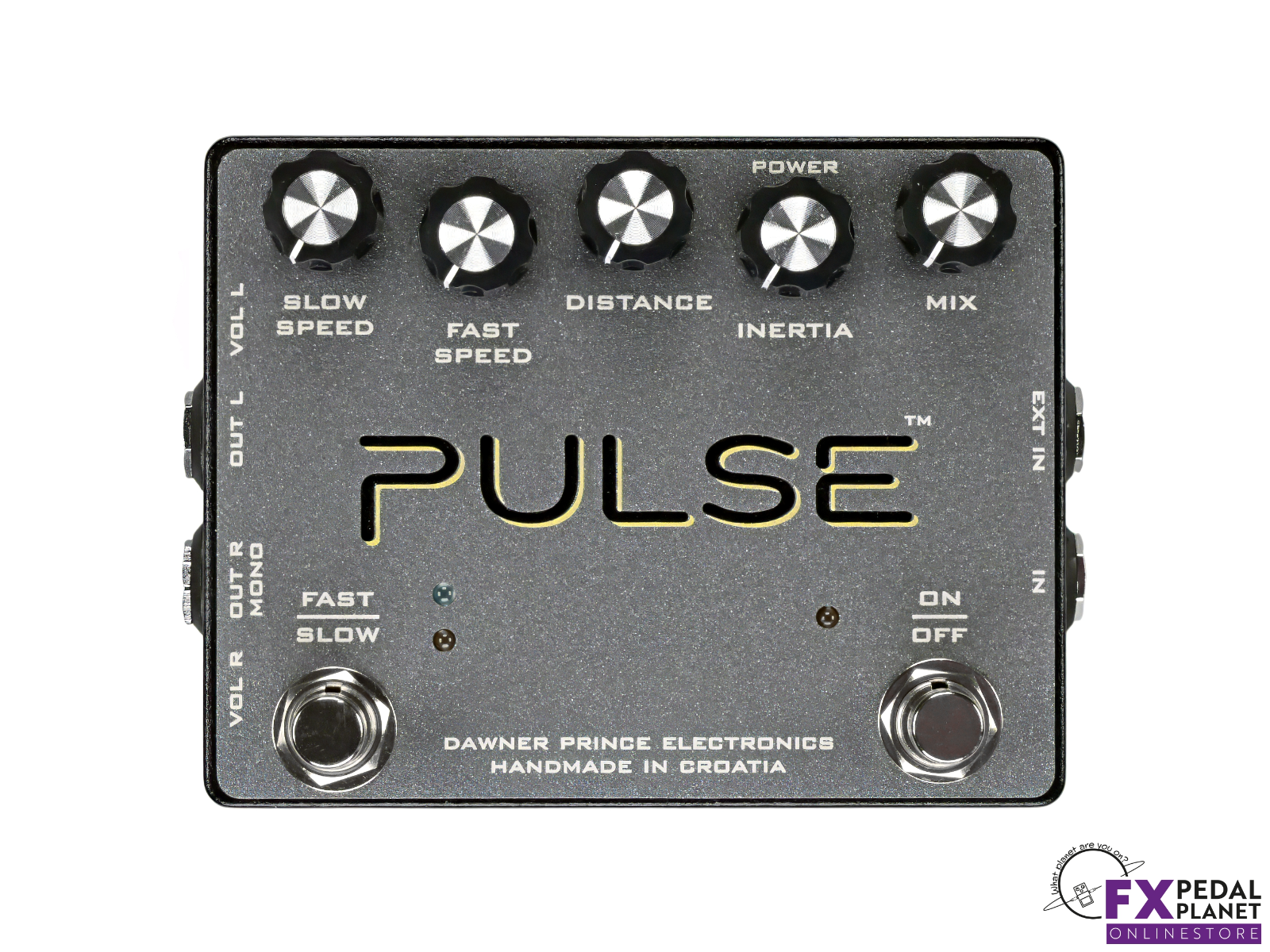

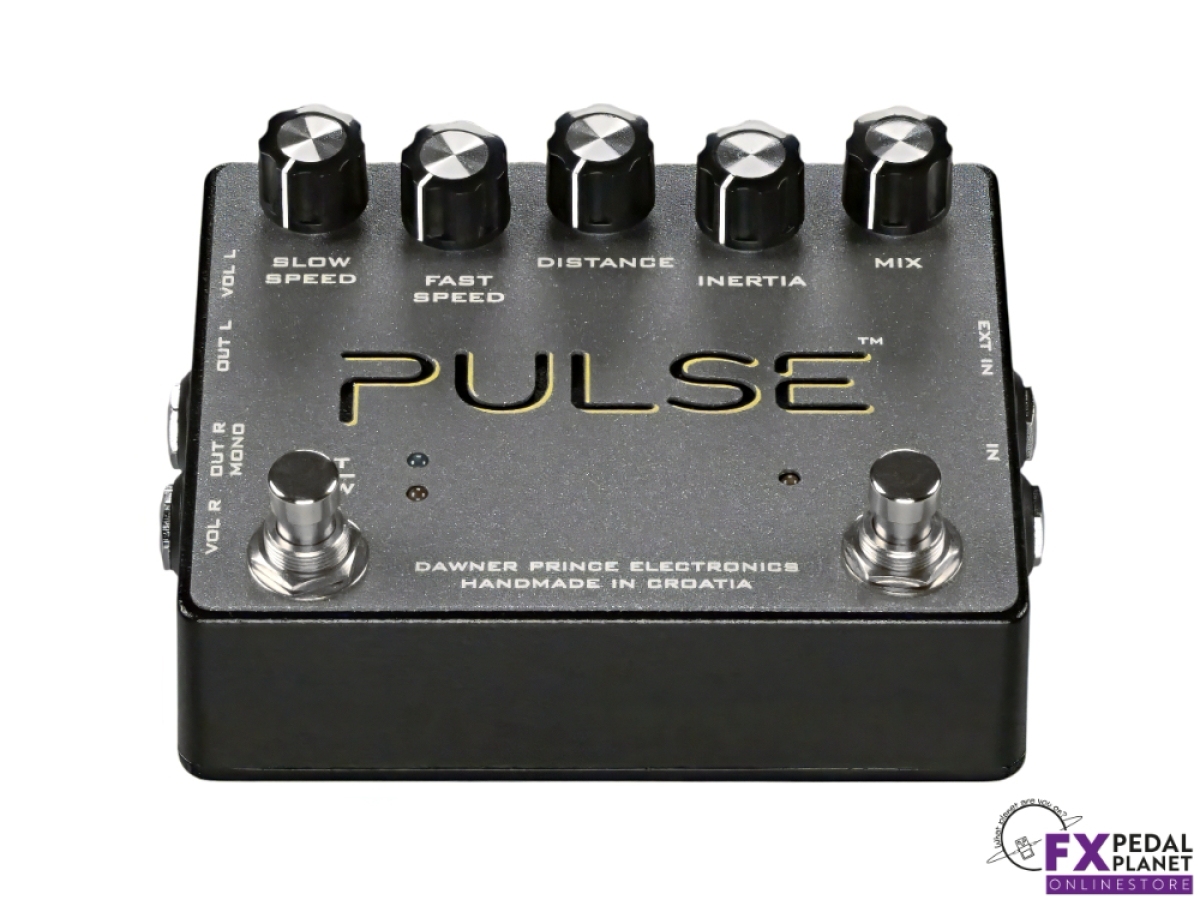

Dawner Prince Pulse

Pulse

£269.00

Highlights

• Compact rotary speaker cabinet emulator inspired by classic Rover and Doppola rotating speaker designs
• Three dimensional swirling modulation with realistic movement, air, and spatial depth in mono or stereo
• Responsive feel that follows picking dynamics and speed changes without sudden or unnatural transitions
• Clear, intuitive controls offering wide speed range, mic distance shaping, inertia and wet/dry blending
• Advanced digital rotary modelling with detailed mechanical and acoustic behaviour, not generic modulation
• Hand built in Croatia with careful assembly and testing for consistent performance
• Rugged all metal Hammond style enclosure designed for long term pedalboard and touring use
• Clean, practical graphics that are easy to read and adjust during rehearsals or live sets
• Bright status LEDs clearly show effect on/off and fast or slow rotation modes
• True bypass switching preserves your core tone when the pedal is disengaged
• Digital processing with an analogue style FET preamp for natural response and low noise
• Side mounted input, output and power jacks keep pedalboards tidy and cable routing simple
• Manufacturer backed warranty provides peace of mind for studio, stage and touring musicians

Description

The Dawner Prince Pulse is a compact rotary speaker cabinet emulator designed for guitarists and bass players who want the depth, movement and character of a real revolving speaker without the size, weight or maintenance. Inspired by the rotary units used by Pink Floyd guitarist David Gilmour, and specifically the rare Gibson Maestro Rover RO-1 and custom Doppola cabinets, Dawner Prince Pulse recreates the sound and physical behaviour of a rotating speaker using detailed modelling of airflow, mechanics and microphone placement. The result is a true open cabinet rotary effect with a convincing three dimensional sound image that works equally well on pedalboards, in studios and on stage.

Sonically, the Dawner Prince Pulse delivers a rich, swirling modulation that feels alive rather than processed. At slow speeds it produces a wide, phasey movement with a gentle pulse that blooms and shifts as notes sustain. As the speed increases, the sound tightens into a throbbing, chorused warble that can sit behind clean chords or add movement to driven tones without becoming harsh or overpowering. The virtual speaker acceleration is clearly audible, so transitions between slow and fast speeds feel organic, with the swirl opening up and closing down in a way that mirrors a real cabinet spinning up or slowing to a stop. In stereo, the effect becomes expansive and immersive, with sound appearing to travel across the room. In mono, it still retains complex harmonic motion that helps parts cut through a mix.

Playing through the Dawner Prince Pulse feels responsive and musical. The effect follows picking dynamics naturally, so softer playing produces a smooth, floating movement while harder attacks bring out more pronounced modulation. Speed changes feel physical rather than abrupt, which makes the pedal easy to use musically rather than as a special effect. Whether left on all the time for subtle motion or used dynamically with speed changes during a song, the Dawner Prince Pulse encourages expressive playing and rewards careful control.

The control layout is straightforward and deliberately focused on shaping the behaviour of a rotary speaker rather than offering generic modulation parameters. Slow Speed and Fast Speed knobs set two independent rotation rates, ranging from a very slow 0.4 revolutions per second up to a fast 8 revolutions per second, allowing anything from gentle movement to intense pulse like modulation. The Inertia control adjusts how quickly the virtual speaker accelerates and decelerates between those speeds, letting the player choose anything from lazy, drifting transitions to faster, more immediate shifts. Distance acts as a virtual microphone placement control, moving the microphones closer to or further from the cabinet. Further settings sound wider and more diffuse, while closer positions increase intensity and upper-mid presence. The Mix control blends the dry signal from the onboard FET preamp with the effected sound, from fully dry through to fully wet, making it easy to add just a touch of motion or commit entirely to the rotary effect.

At the heart of the Dawner Prince Pulse is a carefully modelled digital circuit that focuses on realism rather than exaggerated modulation. Dawner Prince analysed a real rotating speaker system in detail, measuring its physical behaviour and using advanced calculations to recreate not just the modulation but the sense of air being moved. This approach gives the Dawner Prince Pulse its distinctive depth and sense of motion, setting it apart from simpler rotary or chorus-style effects. The Dawner Prince Pulse remains impressively quiet, even at extreme settings, making it suitable for recording, live use and even non-guitar sources.

The Dawner Prince Pulse is housed in a rugged all metal enclosure based on the Hammond 1590BB format, offering plenty of space for the controls while remaining pedalboard friendly. It feels solid underfoot, with footswitches that inspire confidence and a finish that stands up well to regular use. The compact footprint makes it easy to integrate into busy boards without sacrificing usability.

Visually, the Dawner Prince Pulse has a clean, functional design that suits both modern and classic pedalboards. The graphics are clear and purposeful, making it easy to see control positions at a glance without unnecessary decoration. Everything is laid out to support quick adjustments during rehearsals or sessions.

Status LEDs provide clear feedback during use. A yellow LED indicates when the effect is engaged, while separate LEDs show whether the pedal is running in slow or fast rotation mode. This makes it easy to confirm settings at a glance, even on dimly lit stages.

The Dawner Prince Pulse uses a true bypass switching system, ensuring that the guitar or bass signal remains intact and unaffected when the pedal is switched off. When disengaged, the tone passes through cleanly with no loss of clarity, making it easy to leave the pedal in the signal chain at all times.

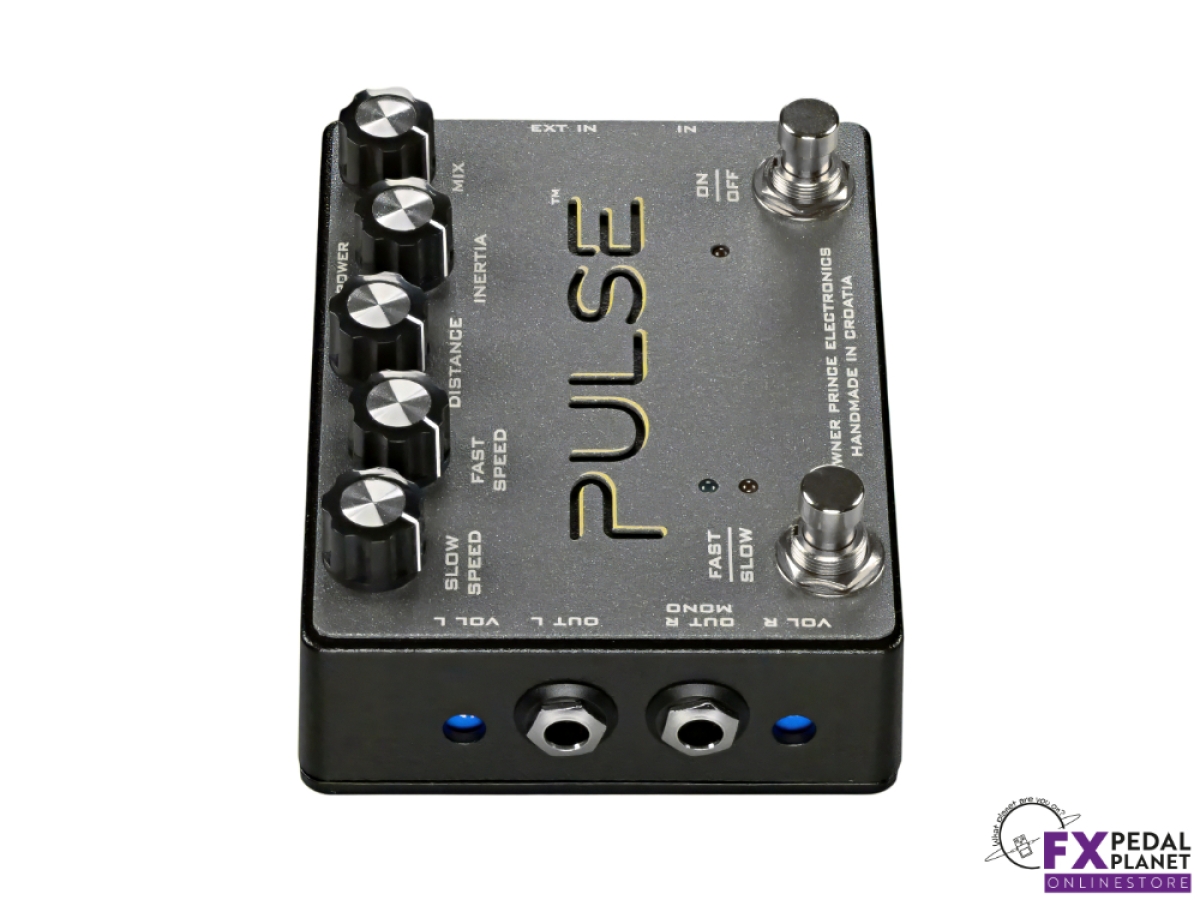

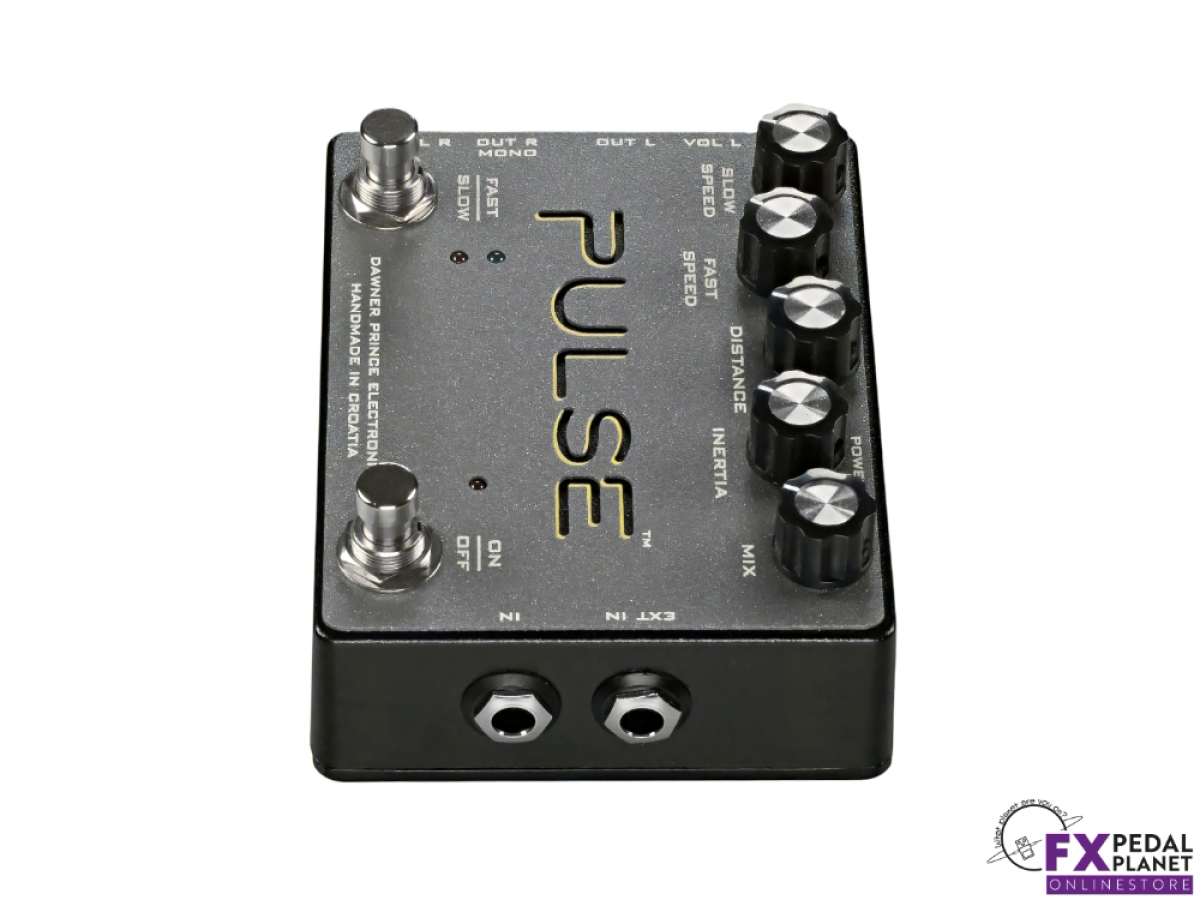

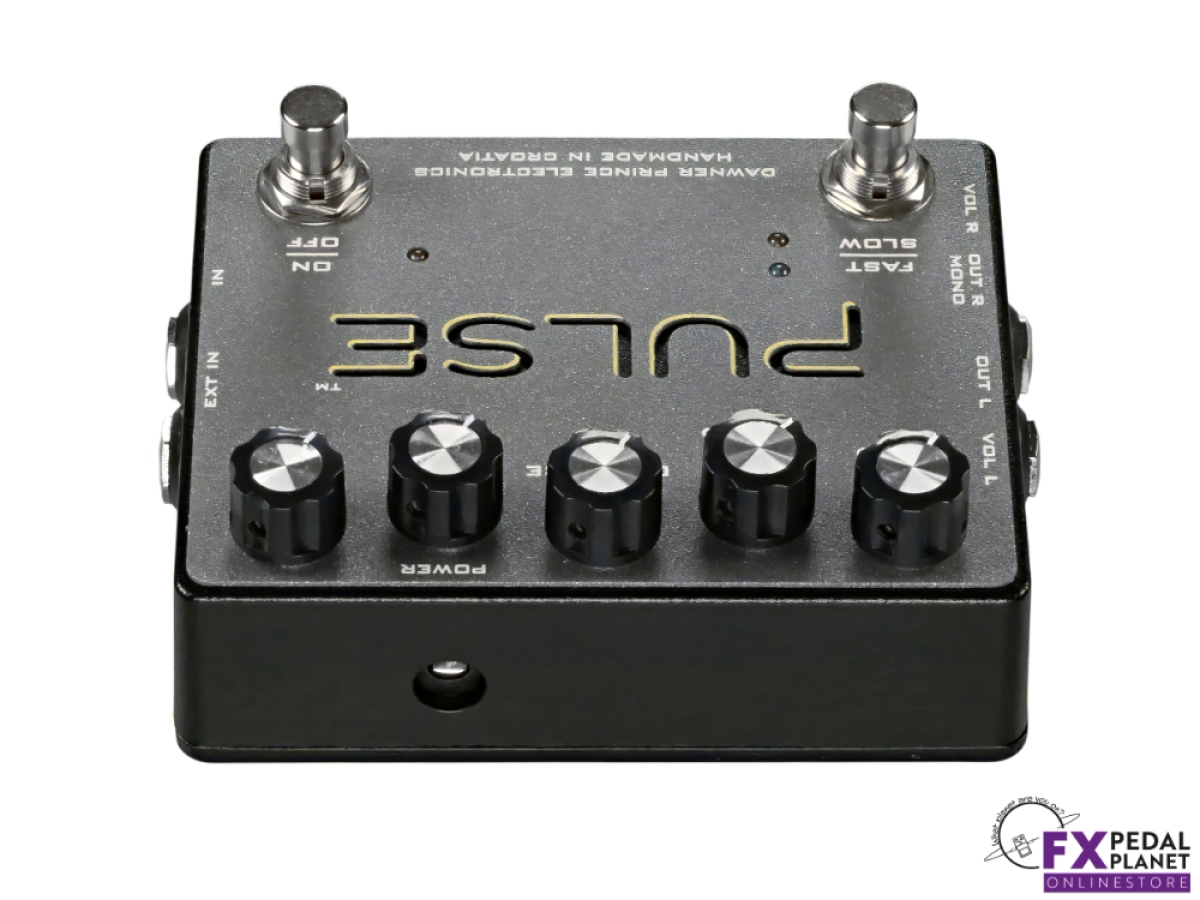

Connectivity is designed with real world rigs in mind. A TRS stereo input accepts mono or stereo sources, with internal selection, and stereo outputs feed two virtual microphones placed either side of the cabinet for maximum realism. Using only the right output engages a single virtual microphone for mono operation. An external input allows connection of an expression pedal or remote speed switch for hands free control of rotation speed, automatically overriding the onboard fast/slow switch. Internal output level trimmers on the left and right channels allow fine adjustment of output balance, helping maintain a realistic stereo image or consistent mono level. Power is supplied via a standard 9V DC centre negative input, drawing around 70mA, making it compatible with most pedalboard power supplies.

Dawner Prince backs Pulse with a solid warranty, offering reassurance that the pedal is built to last and supported should any issues arise, adding confidence to what is already a serious piece of equipment.

In summary, the Dawner Prince Pulse is a dedicated rotary speaker emulator that focuses on realism, musical response and usability. It captures the character of classic rotating cabinets associated with David Gilmour’s tones while remaining flexible enough for a wide range of styles. With convincing movement, intuitive controls, stereo capability and robust construction, it is a strong choice for players who want authentic rotary sounds in a practical pedal format, whether for subtle motion, immersive stereo textures or expressive speed changes.

Controls

• RIGHT FOOTSWITCH: Clear true bypass on/off switching with instant visual feedback for confident performance control
• LEFT FOOTSWITCH: Intuitive fast/slow switching with natural speed ramping that follows your playing dynamics
• SLOW SPEED: Sets rich, spacious rotary movement from gentle drift to pulsing motion for expressive passages
• FAST SPEED: Dial in cutting, rhythmic swirl up to rapid rotation for solos, accents and dramatic transitions
• DISTANCE: Shapes tone by moving virtual microphones, from airy spread to focused mid-forward presence
• INERTIA: Controls acceleration feel, from lazy spin ups to quick shifts, keeping speed changes musical
• MIX: Blends dry clarity with rotary depth, perfect for subtle motion or full immersion on guitar or bass

Components and Technical Specifications

• Carefully voiced FET preamp preserves pick attack, dynamics and low end clarity for guitar and bass
• Proprietary rotary algorithm recreates classic Rover and Doppola speaker response with convincing depth
• True bypass switching maintains signal integrity when the effect is disengaged
• Low noise circuit design stays quiet, even at extreme modulation and stereo operation
• Stereo signal path with dual virtual microphones delivers realistic width and spatial movement
• TRS stereo input supports mono or stereo sources without compromising tone consistency
• Dual stereo outputs allow mono or full stereo rigs with flexible routing options
• Internal output level trimmers ensure consistent gain and balanced stereo imaging
• Expression and remote switch input uses robust components for reliable real-time speed control
• Powered by standard 9V centre negative supply (not included)
• Battery operation not supported
• Current draw measured with Truetone 1Spot mA Meter:
• Bypass: Approximately 62 mA
• Engaged (maximum): Approximately 68 mA

Current draw may vary slightly depending on control settings, circuit behaviour, and active features such as gain stages, modulation, filtering, or reverb tails. For best performance, use a high quality isolated power supply that matches the pedal’s current requirements. Always refer to the manufacturer’s recommendations, as incorrect powering may cause damage.

Enclosure Dimensions

• Depth: 94  mm / 3.7 in
• Width: 120 mm / 4.7 in
• Height: 35 mm / 1.3 in

Enclosure Weight

• 455 g
• 1.00 lbs
