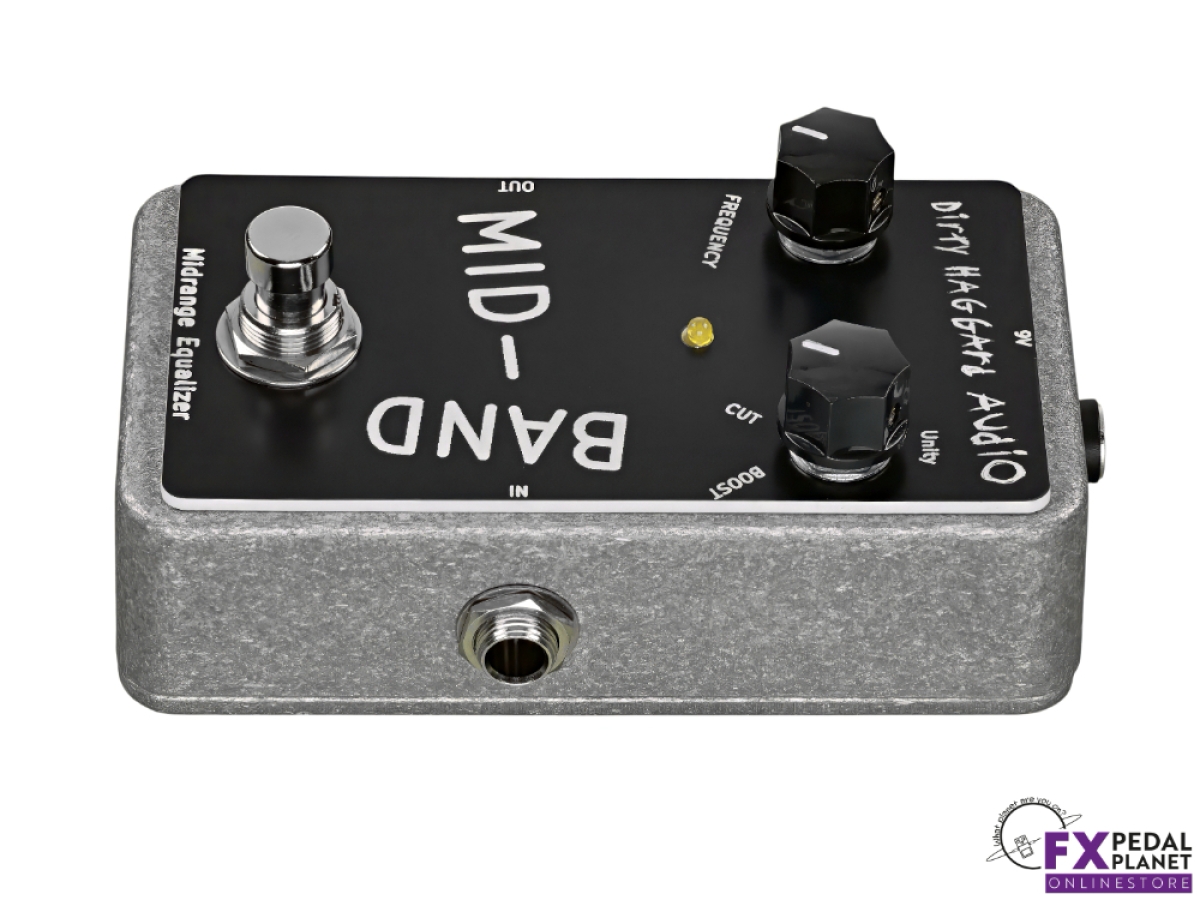

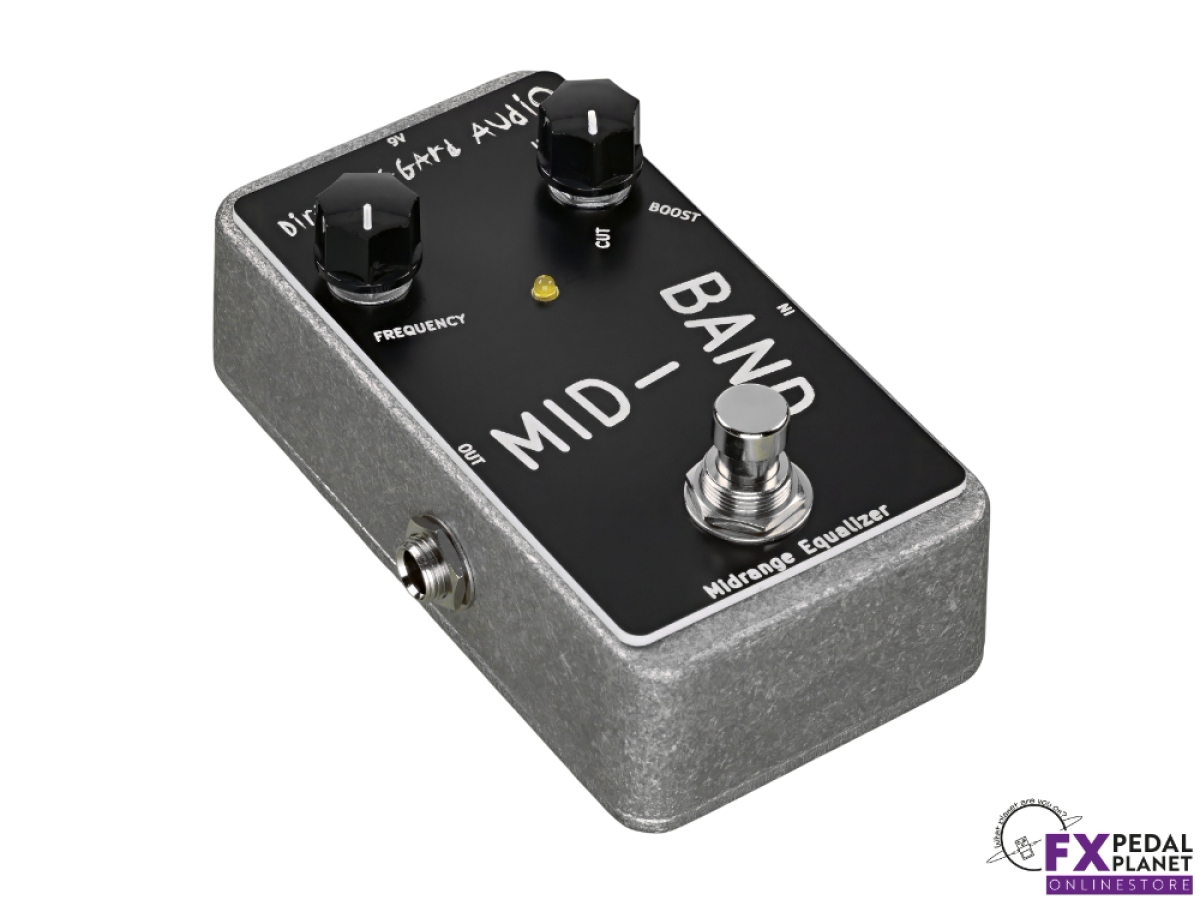

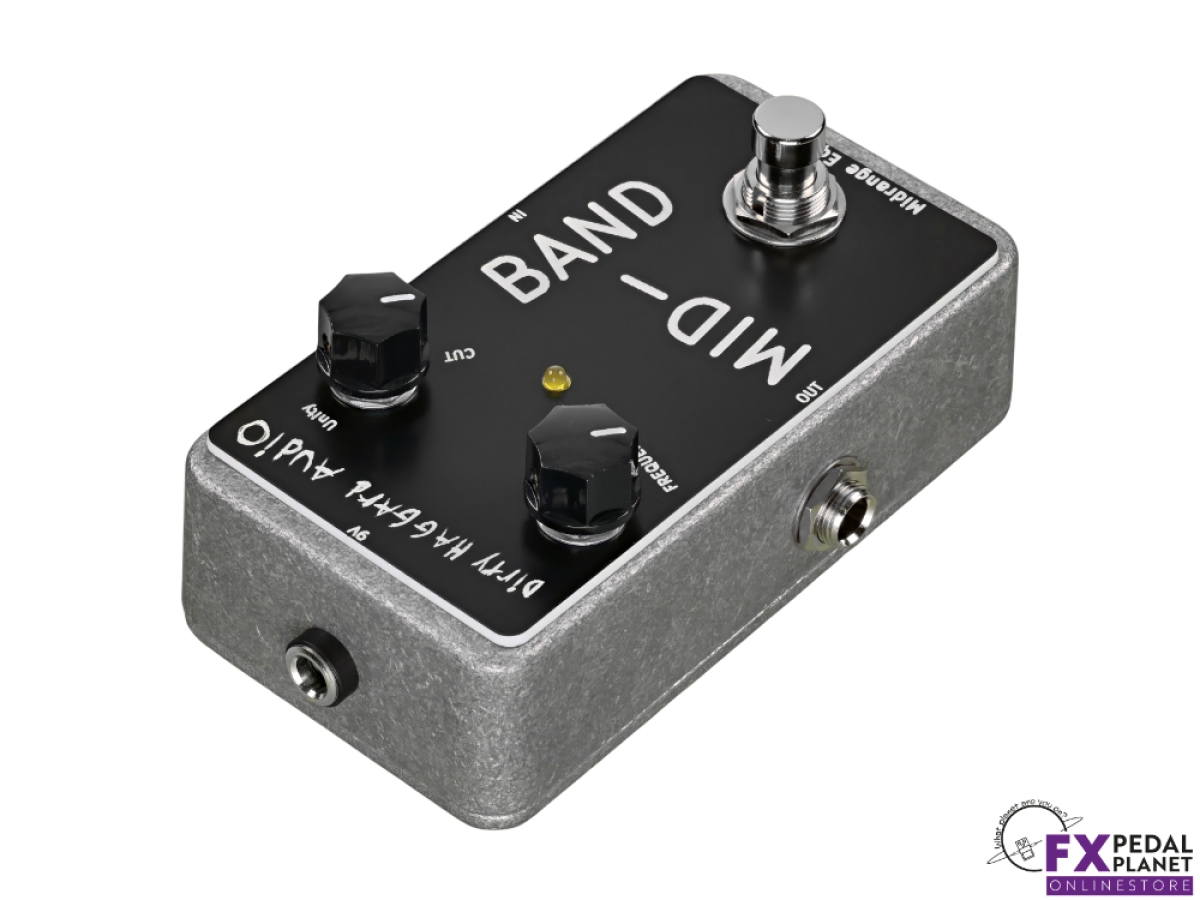

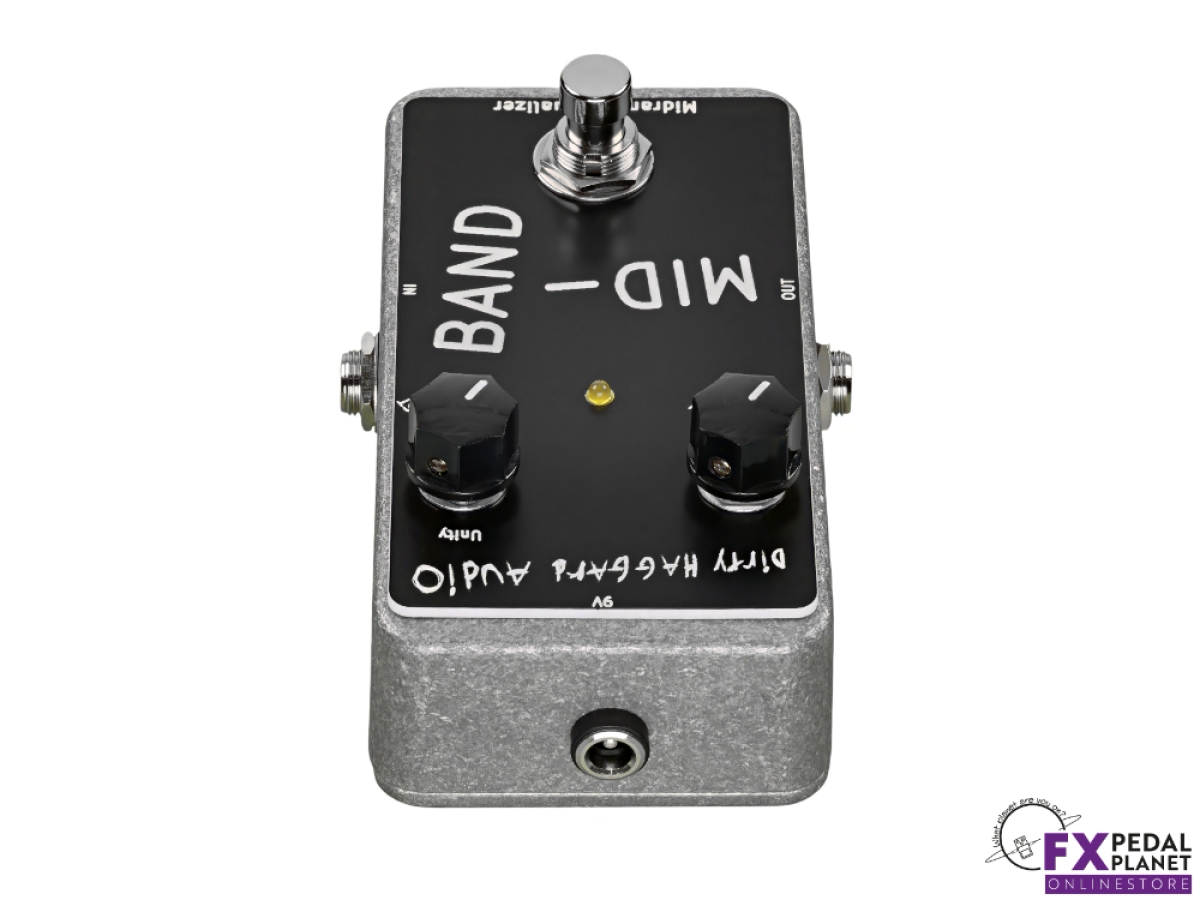

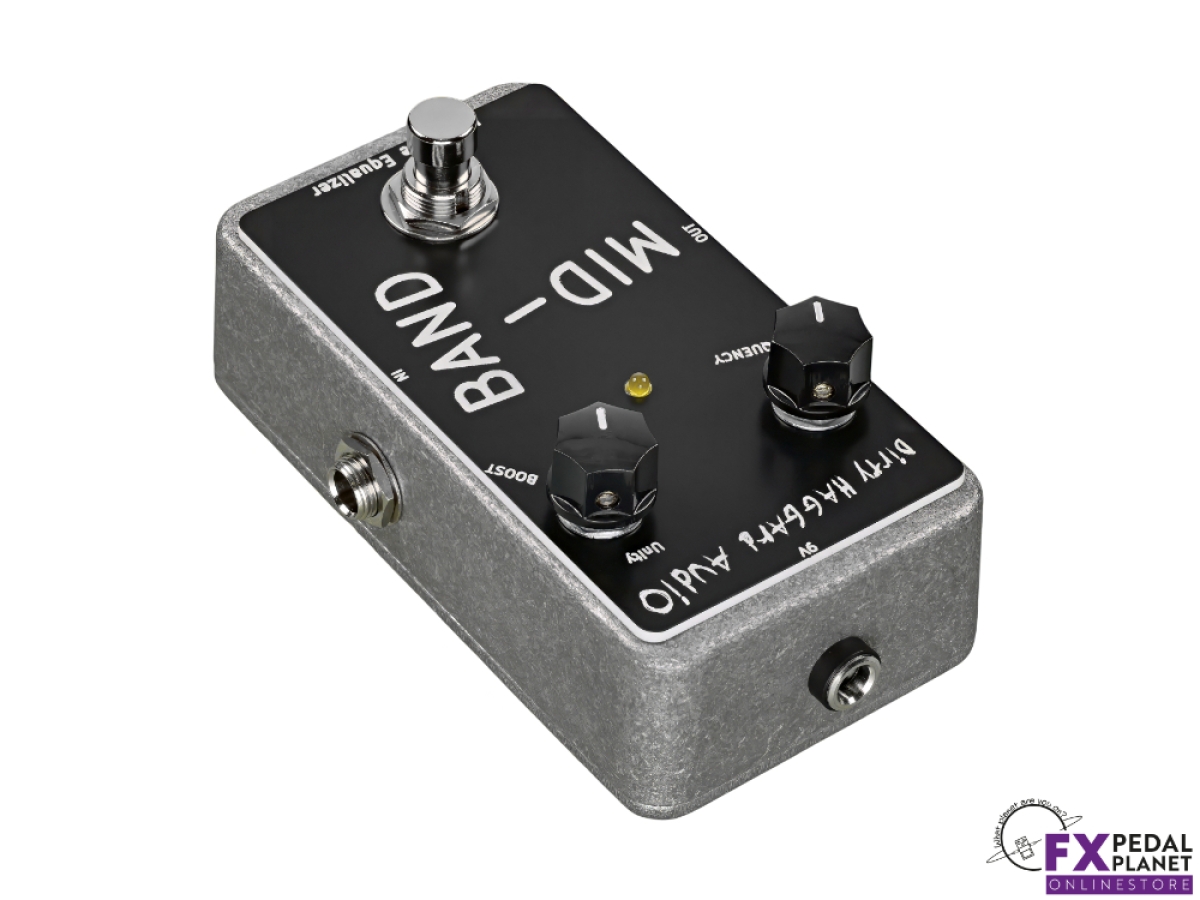

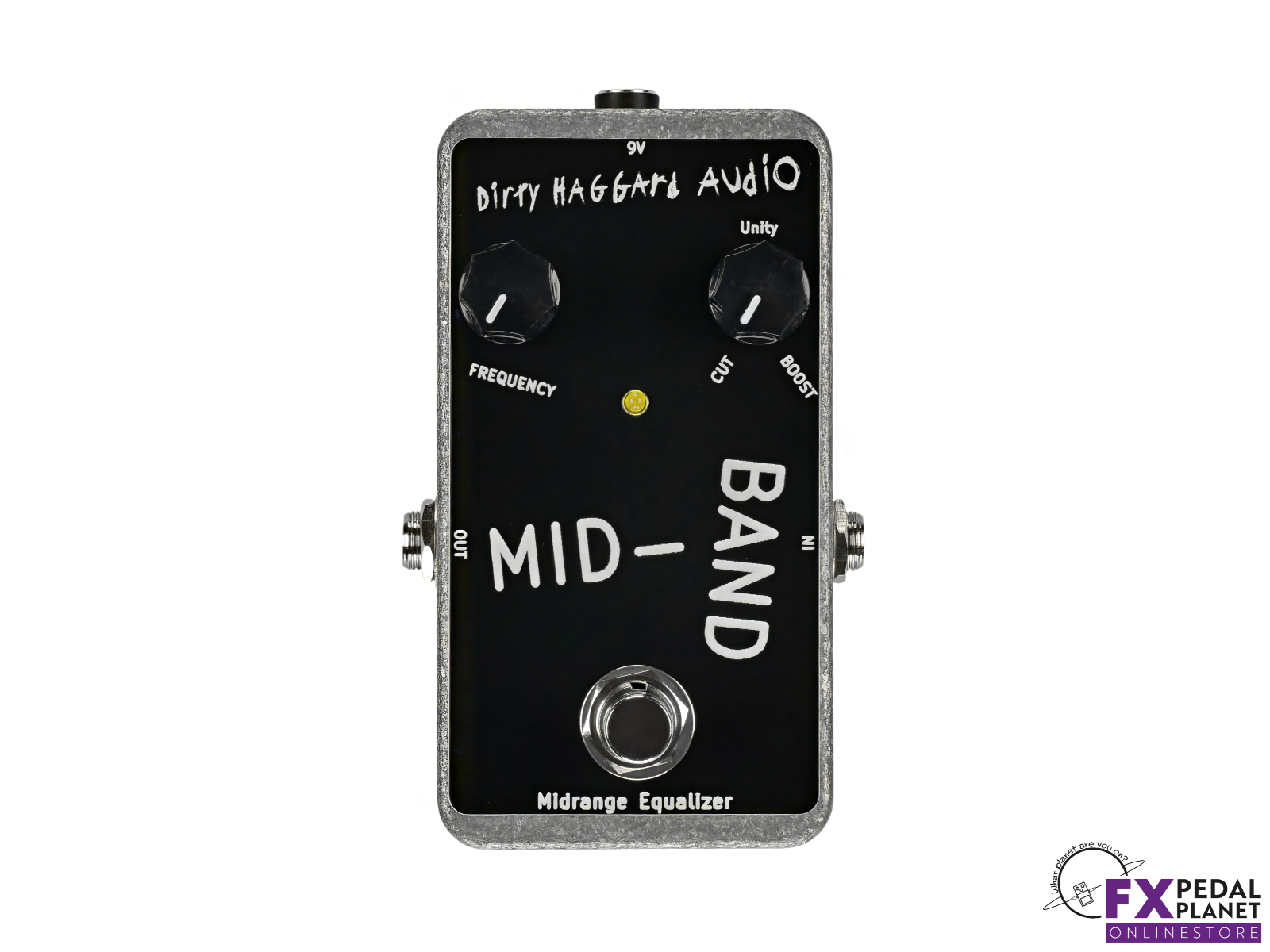

Dirty Haggard Audio Mid Band

Mid Band

£125.00

Highlights

• Compact midrange EQ pedal for guitar and bass
• Boost or cut up to 16dB of focused mid frequencies
• Improves note clarity, punch and mix presence
• Frequency and Cut/Boost controls with intuitive 12 o’clock unity
• Unique, highly usable Dirty Haggard Audio circuit
• Hand built by Dirty Haggard Audio
• Durable all-metal enclosure for stage and studio use
• Bold, clear graphics for easy visibility on dark stages
• LED status indicator for clear on/off visibility
• True bypass switching for signal integrity
• Fully analogue signal path
• Top-mounted jacks for tidy pedalboard layouts
• Manufacturer warranty for peace of mind

Description

The Mid Band by Dirty Haggard Audio is a dedicated midrange equaliser pedal designed to give guitarists and bass players precise control over the most important frequencies in their sound. Sitting comfortably on any pedalboard, it allows players to boost or cut mids between 360Hz and 1.6kHz by up to 16dB, making it an effective tool for shaping rhythm tones, pushing solos forward, tightening high-gain sounds or refining clean passages. It suits everything from blues and classic rock through to modern metal and studio layering, where careful mid control can define how an instrument sits in a mix.

Mid frequencies are where much of a guitar’s character, presence and articulation live. Boosting within this range enhances note definition, pick attack and perceived volume, helping leads cut through a live band without simply turning up. It can add warmth and realism to clean tones and tighten the low end of overdriven sounds so they remain clear and focused. Cutting mids creates a more aggressive, scooped response, emphasising lows and highs for heavier rhythm parts or polished studio tones. Used thoughtfully, the Dirty Haggard Audio Mid Band makes it easy to move between forward, vocal-like lead tones and wider, more modern rhythm sounds without altering the rest of your rig.

In use, the pedal feels immediate and intuitive. Small adjustments have a noticeable effect, yet the range is broad enough for dramatic tonal changes when required. It responds naturally to different guitars, pickups and amplifiers, allowing players to fine-tune how their instrument interacts with the rest of the band. Whether placed before overdrive to shape gain character or in an effects loop for more surgical control, it offers a straightforward way to dial in the right mid profile for the job.

Control is simple and purposeful. The Frequency knob selects the centre point anywhere from 360Hz to 1.6kHz, covering low mids that add body and punch through to higher mids that enhance bite and clarity. The Cut/Boost control provides up to 16dB of adjustment, with unity gain at 12 o’clock, making it easy to return to a neutral setting. The layout encourages quick, confident adjustments both at home and on stage.

The circuit is fully analogue and built for consistent performance, delivering focused mid shaping without unnecessary noise or complexity. Its unique design prioritises musical results over excessive controls, ensuring that every setting remains usable.

Housed in a robust all-metal enclosure, the Dirty Haggard Audio Mid Band is built to handle regular gigging and rehearsal use. The compact format fits easily onto crowded pedalboards, and the clear, bold graphics make settings easy to read under stage lighting.

A bright LED indicator shows when the effect is engaged, providing clear visual feedback in live environments. True bypass switching preserves the integrity of the original signal when the pedal is off, helping maintain clarity across longer signal chains. Top-mounted jack sockets support tidy pedalboard wiring and efficient use of space, while standard 9V centre-negative power ensures straightforward integration with most modern power supplies.

Backed by the manufacturer’s warranty, the Dirty Haggard Audio Mid Band offers a practical, reliable solution for players who understand that midrange control is central to great tone. For guitarists and bassists who want to shape presence, punch and articulation with precision, it is a compact yet powerful addition to any rig.

Controls

• FOOTSWITCH: Engages or bypasses the effect with true bypass switching
• FREQUENCY: Selects centre frequency from 360Hz to 1.6kHz for precise mid focus
• CUT/BOOST: Adjusts up to ±16dB with unity at 12 o’clock

Components and Technical Specification

• Fully analogue midrange equaliser circuit
• Adjustable centre frequency range 360Hz to 1.6kHz
• Up to 16dB boost or cut at selected frequency
• True bypass switching for signal integrity
• Top-mounted input and output jack sockets
• Compact metal enclosure suitable for pedalboards
• Designed for guitar and bass applications
• Powered by standard 9V centre negative supply (not included)
• Battery operation not supported
• Current draw measured with Truetone 1Spot mA Meter:
• Bypass: Approximately 7 mA
• Engaged (maximum): Approximately 7 mA

Current draw may vary slightly depending on control settings, circuit behaviour, and active features such as gain stages, modulation, filtering, or reverb tails. For best performance, use a high quality isolated power supply that matches the pedal’s current requirements. Always refer to the manufacturer’s recommendations, as incorrect powering may cause damage.

Enclosure Dimensions

• Depth: 111 mm / 4.4 in
• Width: 60 mm / 2.3 in
• Height: 32 mm / 1.2 in

Weight

• 208 g
• 0.46 lbs
