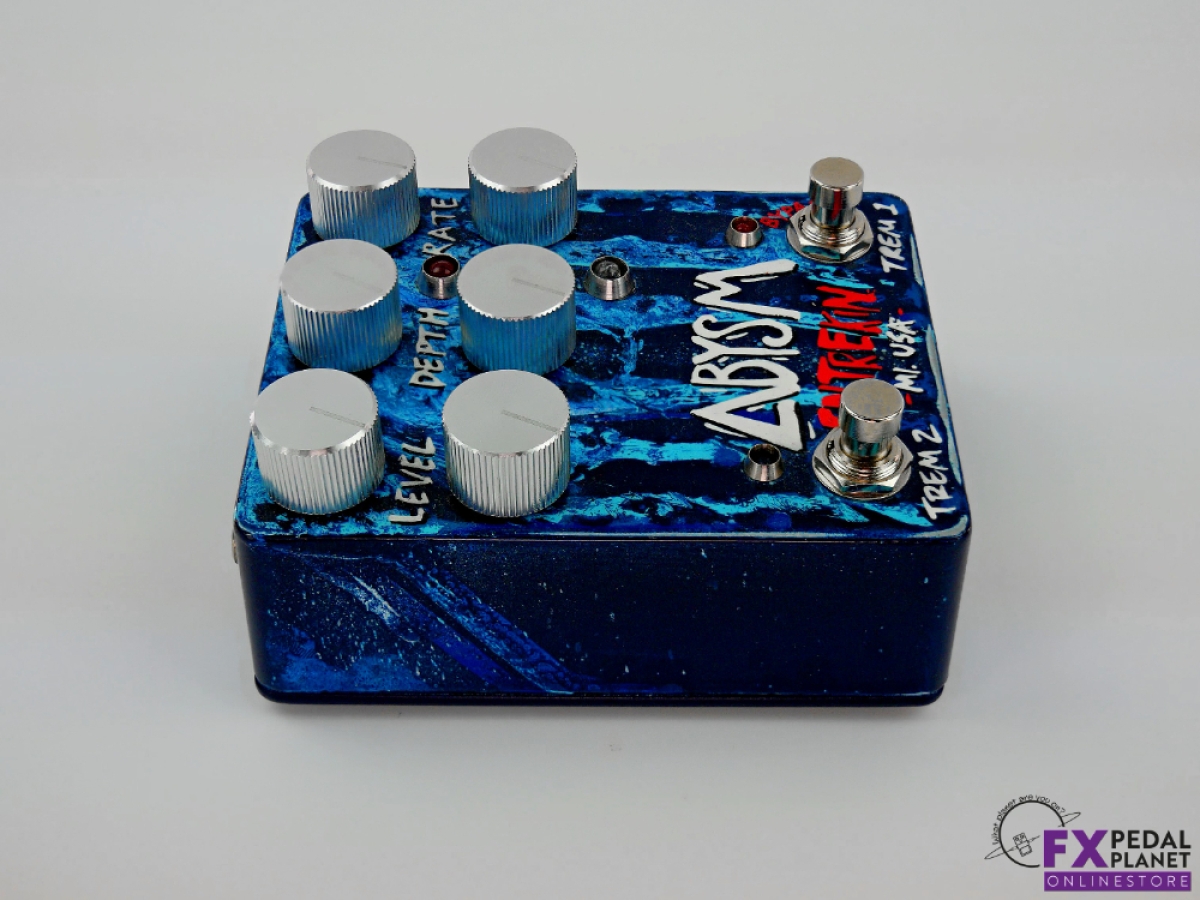

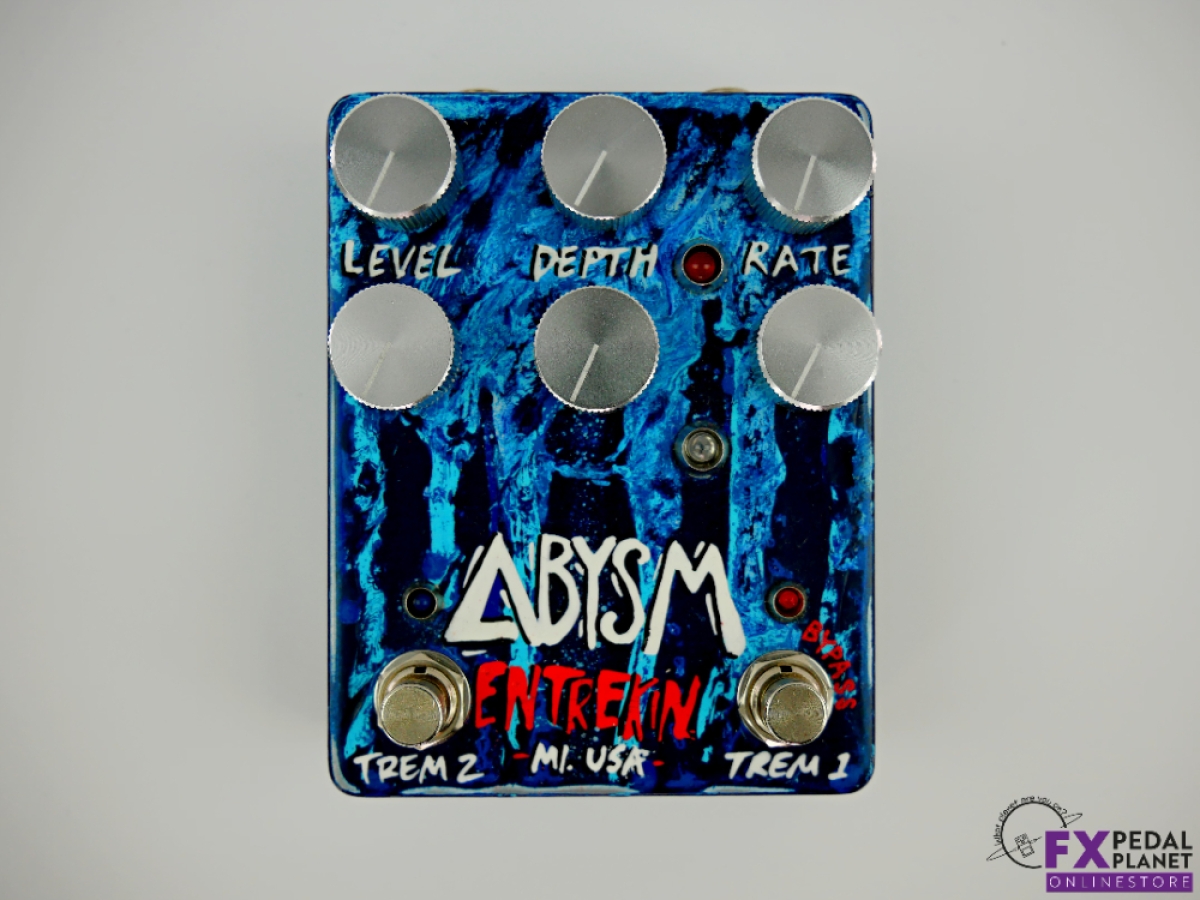

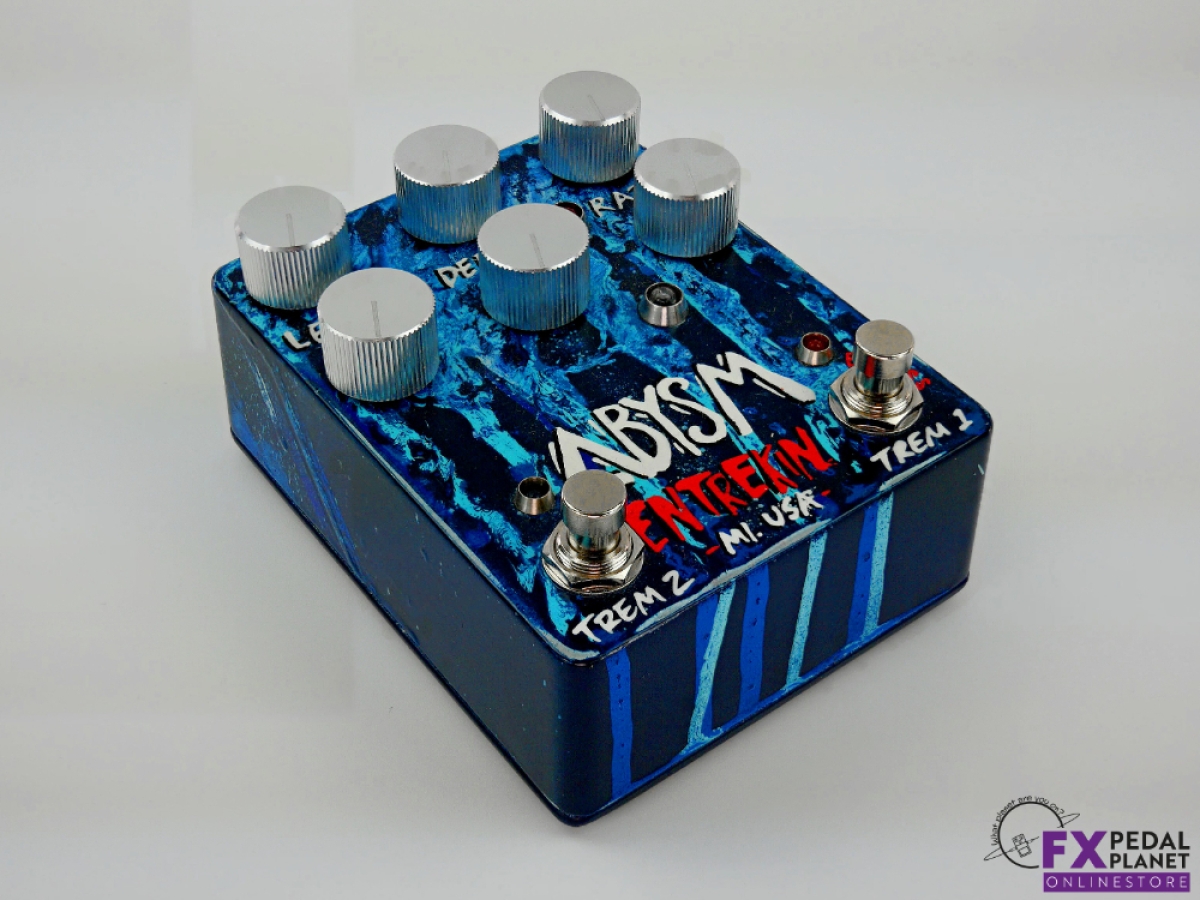

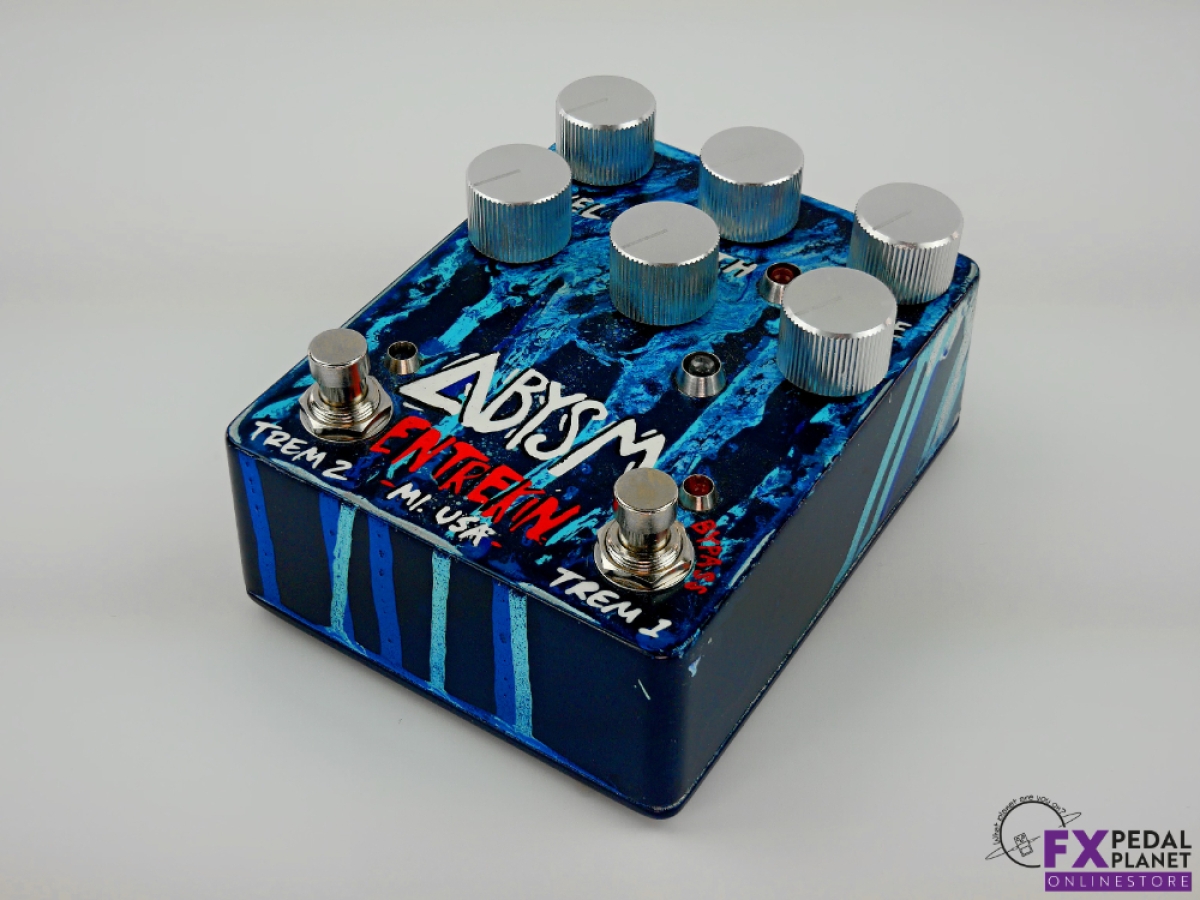

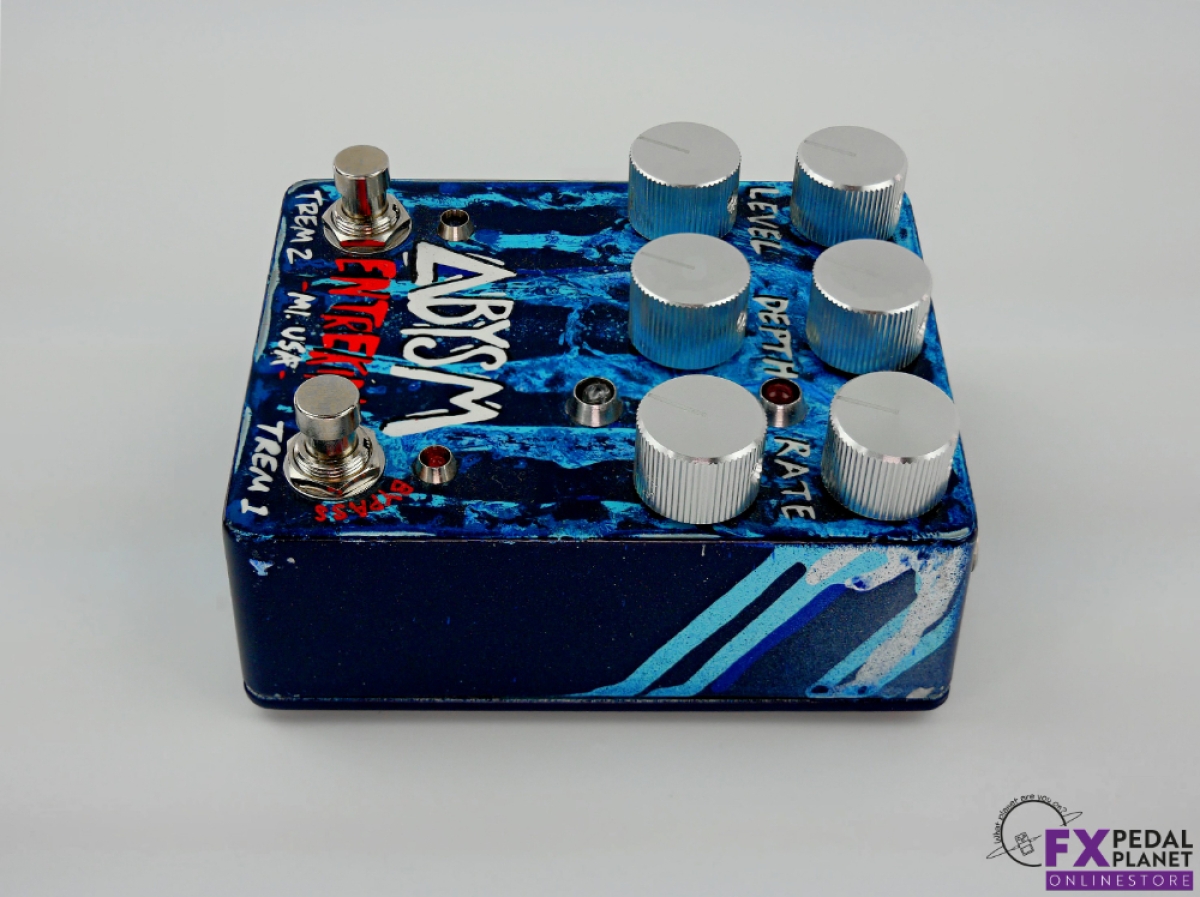

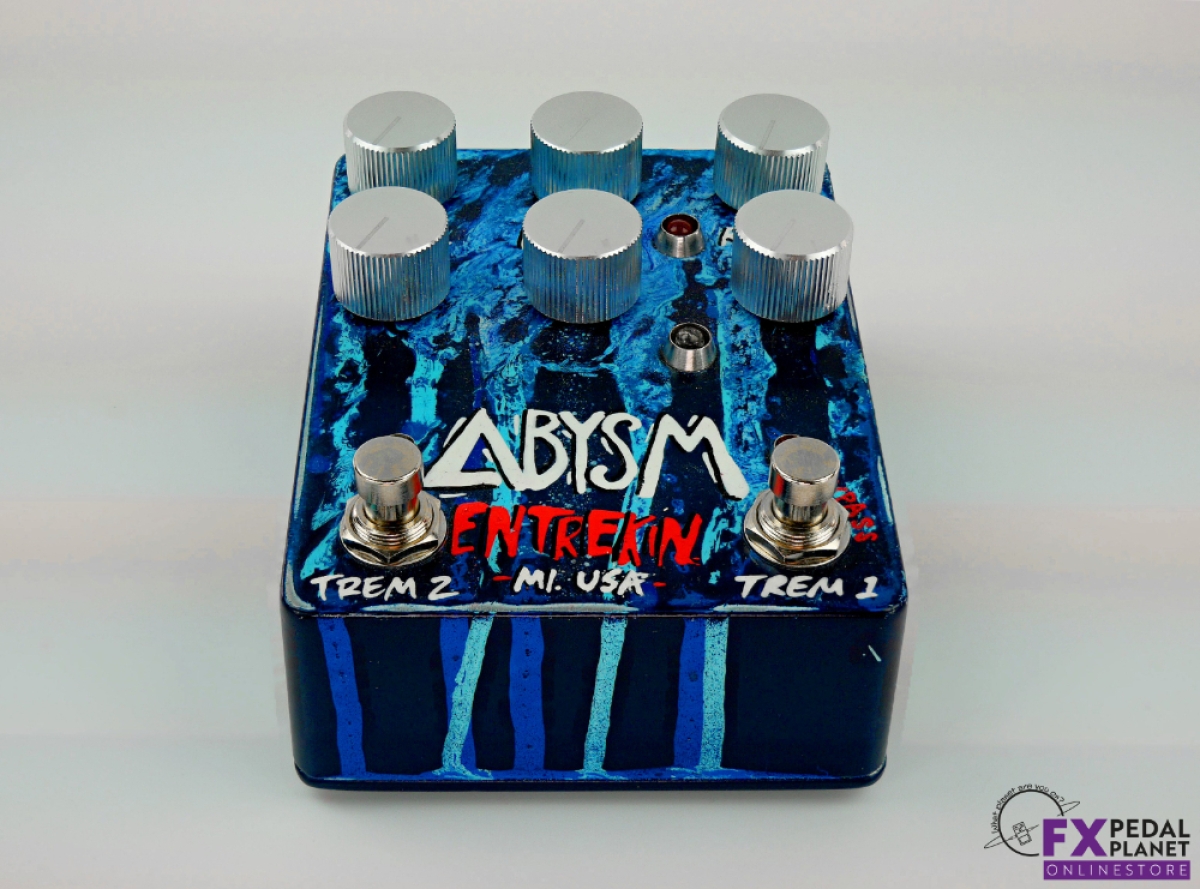

Entrekin Pedals Abysm

Abysm

£199.00

Item successfully added to your basket

View basket

Highlights

  • Two identical tremolo circuits wired in series
  • Engage one tremolo or both
  • Flexible sonic textures
  • All metal enclosure
  • Boutique guitar effect, hand built and wired
  • Uniquely painted by hand
  • Level, depth, and rate controls
  • Chunky knobs for easy control
  • LED power indicator on and off
  • True bypass
  • All analogue

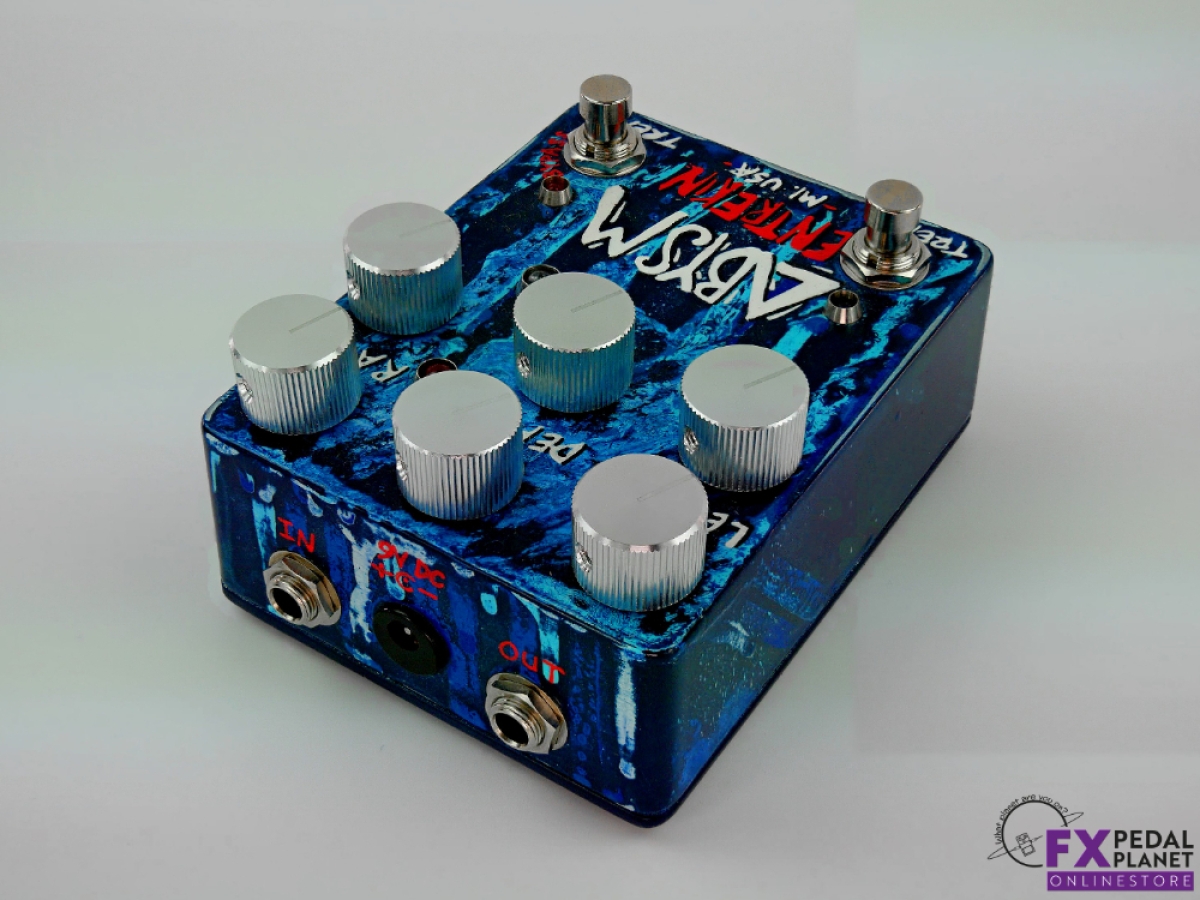

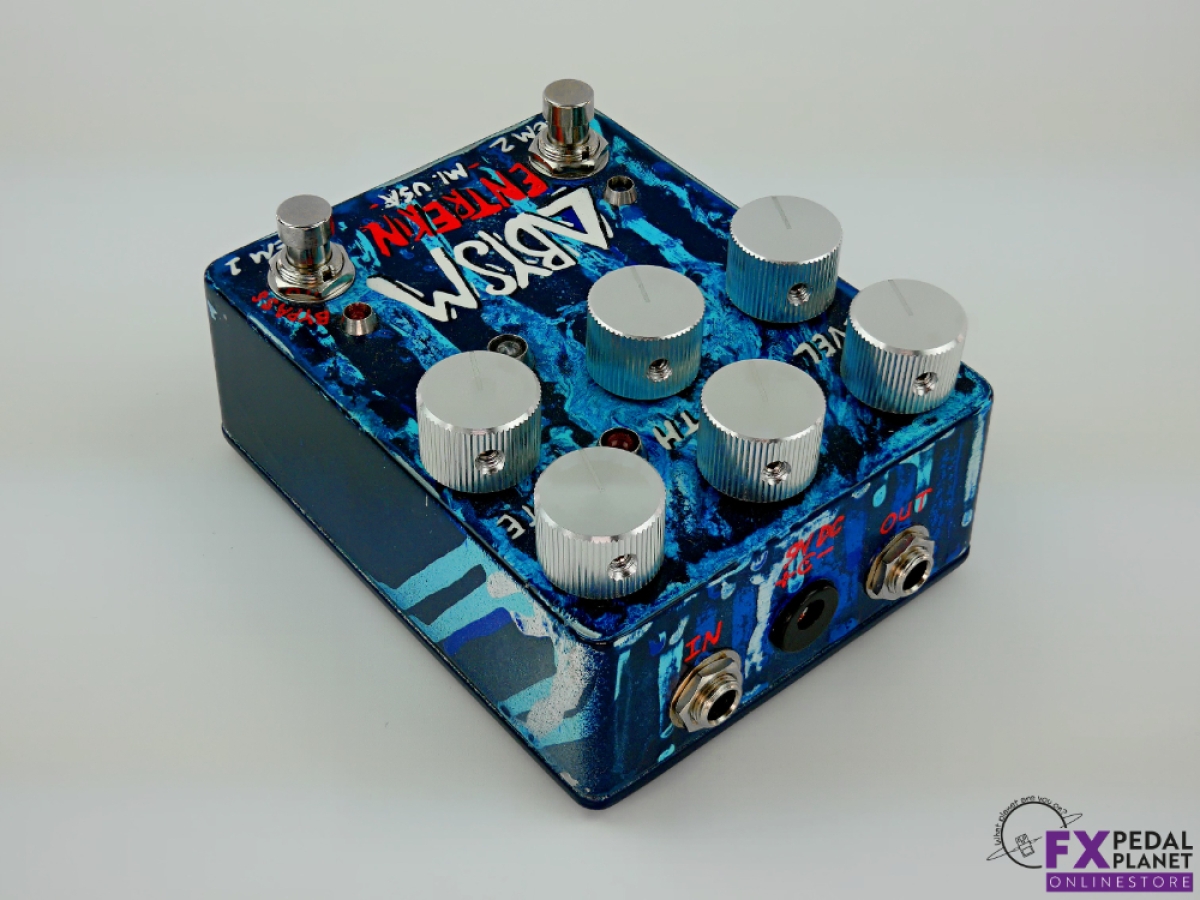

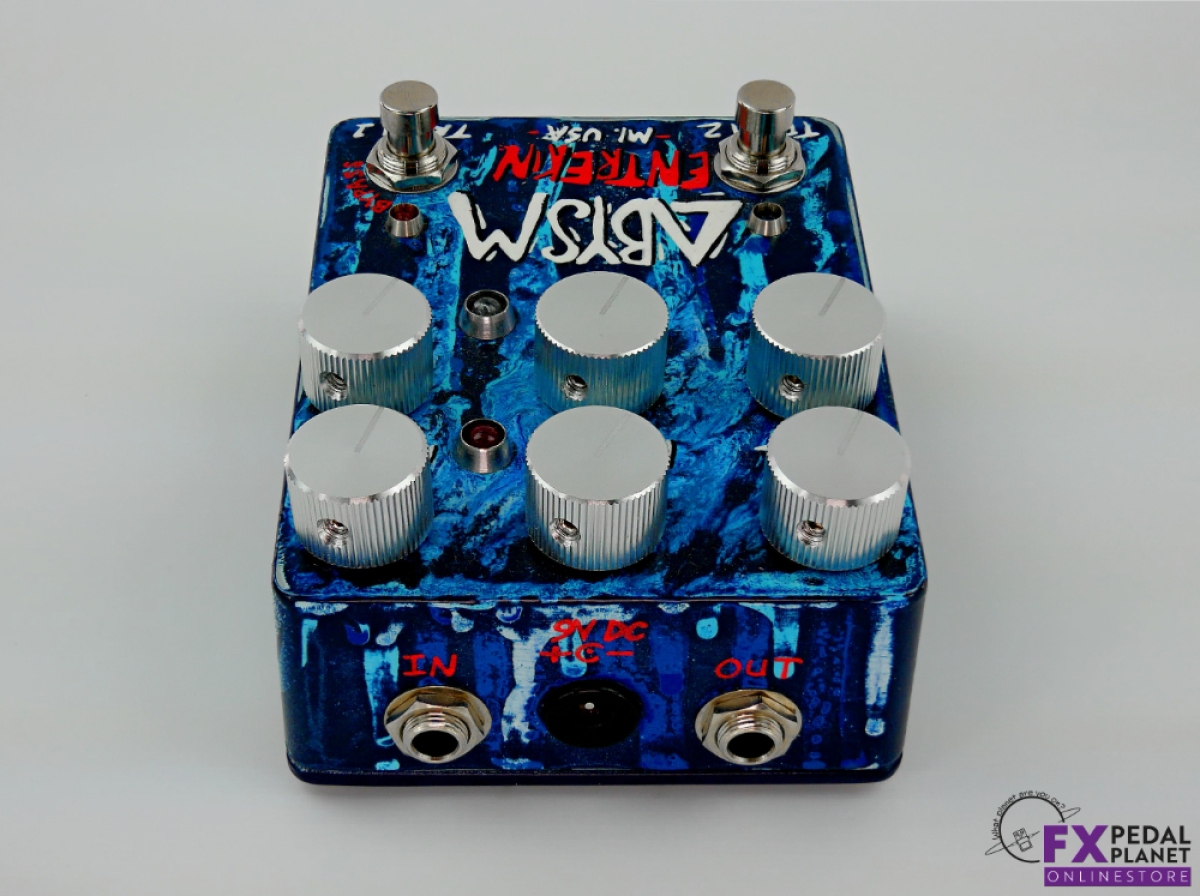

  • Space saving top mounted input and output jacks

Demo coming soon

Description

The Entrekin Pedals Abysm consists of two identical tremolo circuits, wired in series, in one effects pedal.  Engage tremolo one and the Entrekin Pedals Abysm provides quality tremolo tones that are extremely controllable.

Level adjusts the effect volume.  At zero, the pedal and signal is silent.  Turn the level clockwise and the guitar signal and tremolo volume increases.  Depth adjusts the tremolo wave intensity and rate adjusts the speed.

Tremolo two can be mixed with tremolo one by engaging the Trem 2 footswitch.  With both tremolo's engaged, some fantastic sonic textures can be created.  Since both tremolo circuits are identical and wired in series, the Entrekin Pedals Abysm creates interesting phase cancellation as the two tremolos interact.

The Entrekin Pedals Abysm artwork is entirely painted by hand and will age with use to provide a unique relic'd character.

Ryan Entrekin spends many hours adding colours, layers and sanding to tease out different patterns.  Lettering is all created by hand.  Be sure to care for your Entrekin Pedals Abysm with the love that a hand painted pedal deserves.

With every single Entrekin Pedal, you receive something that is truly unique.

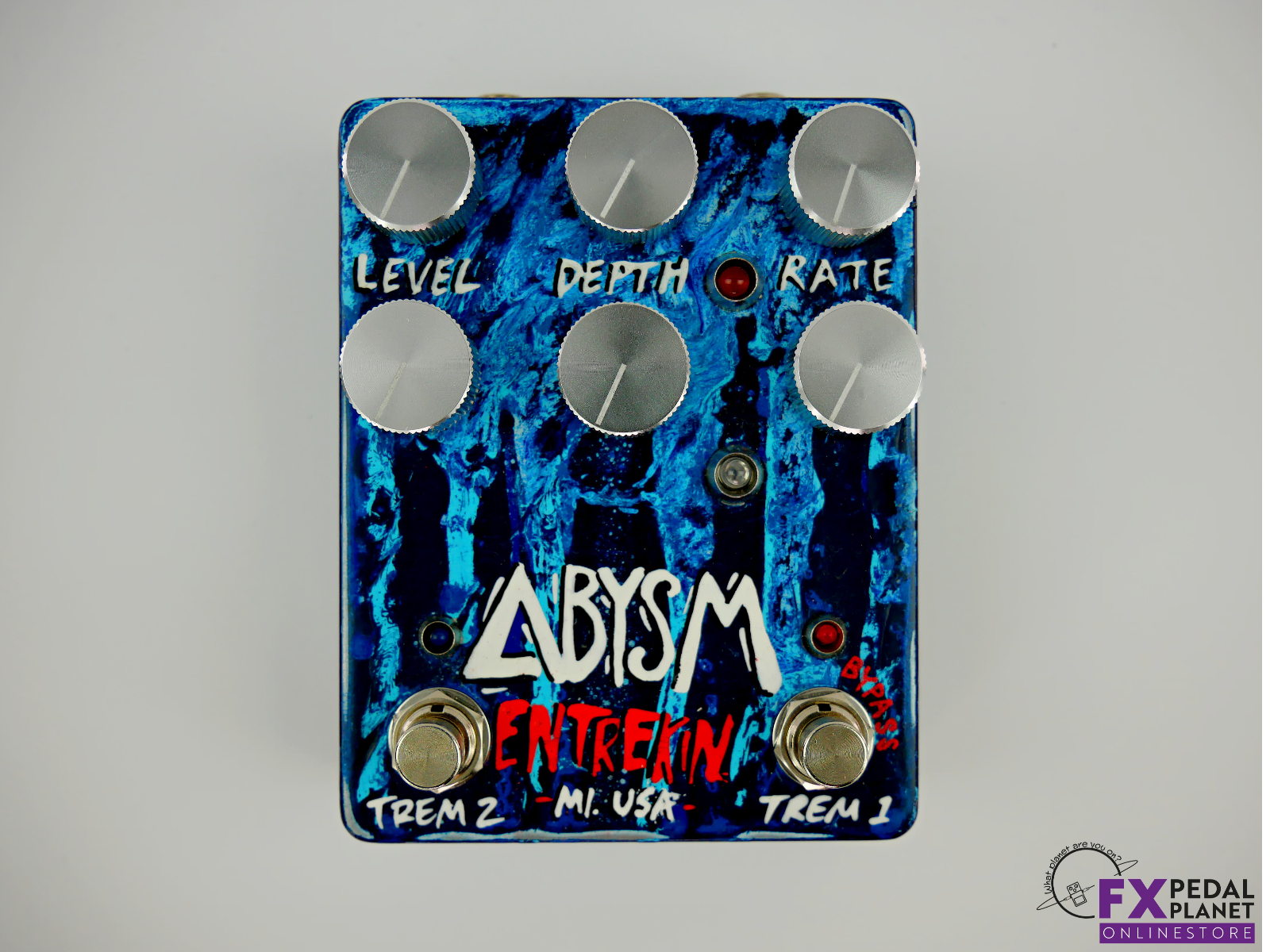

Controls

  • Level: Controls the signal and tremolo volume
  • Depth: Adjusts the tremolo wave intensity
  • Rate: Adjusts the tremolo wave speed

Component Listing and Tech Spec

  • 9V centre negative power
  • Current consumption*
    • 3 mA bypass
    • 6 mA trem one engaged
    • 7 mA trem two engaged
  • Battery: no
  • *Current consumption checked with a Truetone mA meter reader

Enclosure Dimensions

  • Length: 118 mm / 4.6 in
  • Width: 93 mm / 3.6 in
  • Height: 43 mm / 1.6 in

Weight

  • 439 g

Care

The Entrekin Pedals Abysm is entirely painted by hand creating an effects pedal that is truly, one of a kind and will age with use.  Therefore, care should be taken to maintain the Abysm.

FX Pedal Planet Limited and FX Pedal Planet Online Store are proud to be UK dealers for Entrekin Pedals boutique effects pedals.  If we do not have the Entrekin Pedals effects pedal required, please message us via the contacts page and we will do our best to get the product that you want at the very best price and service.
