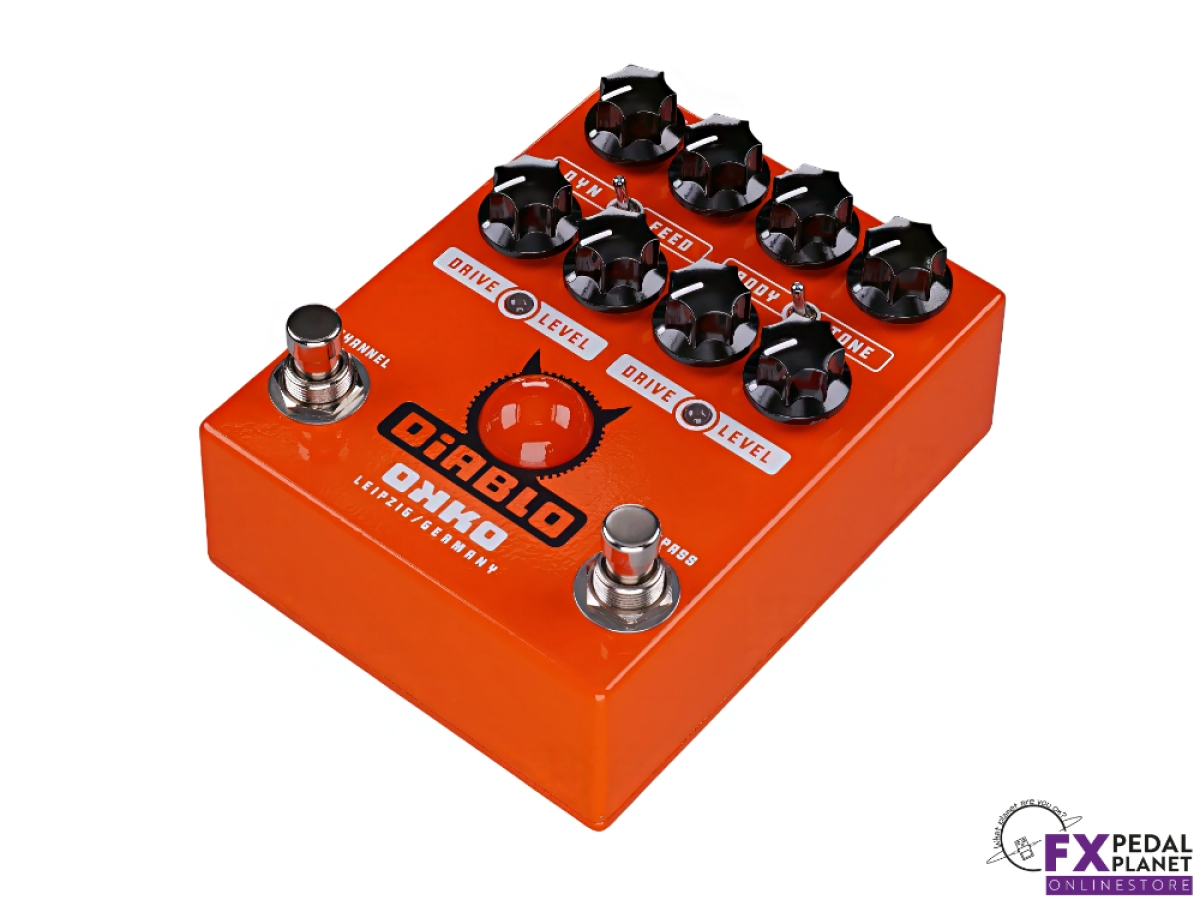

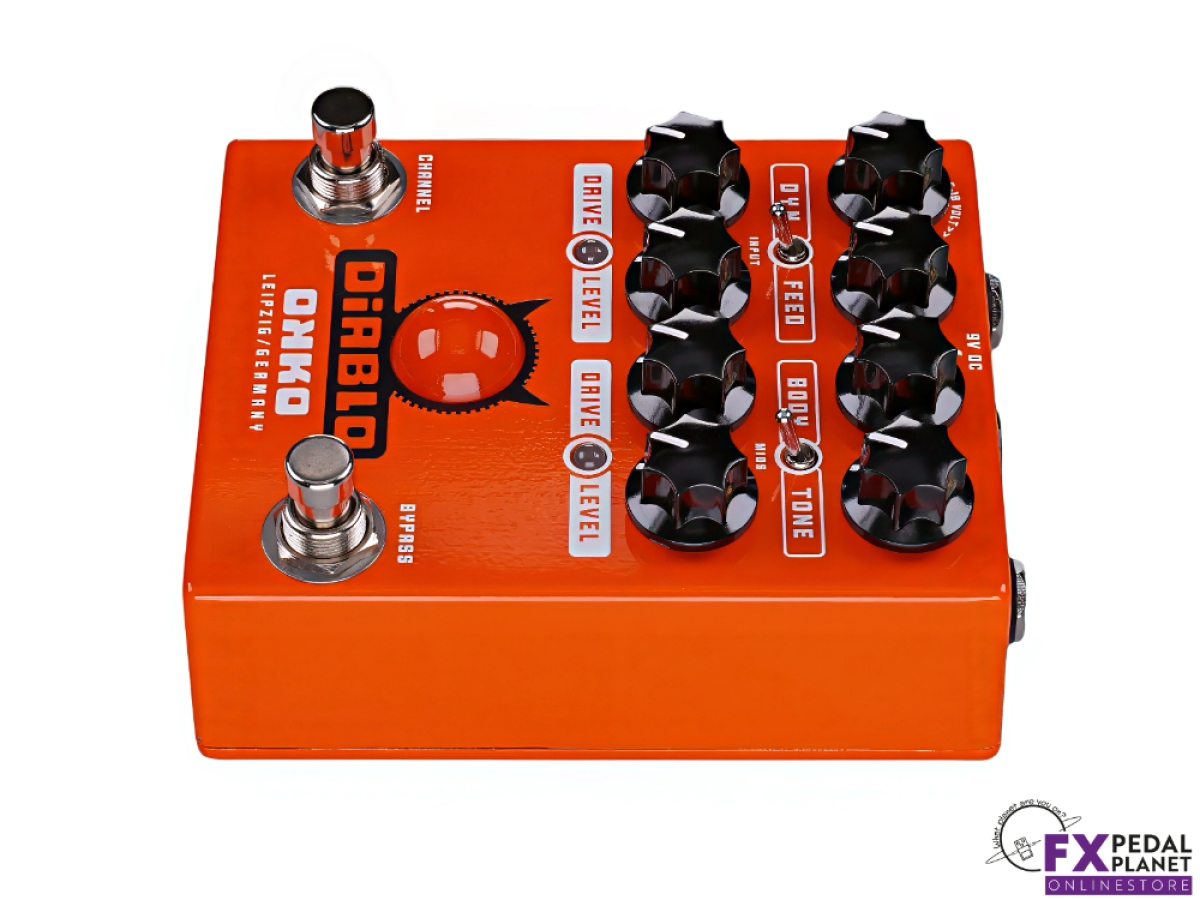

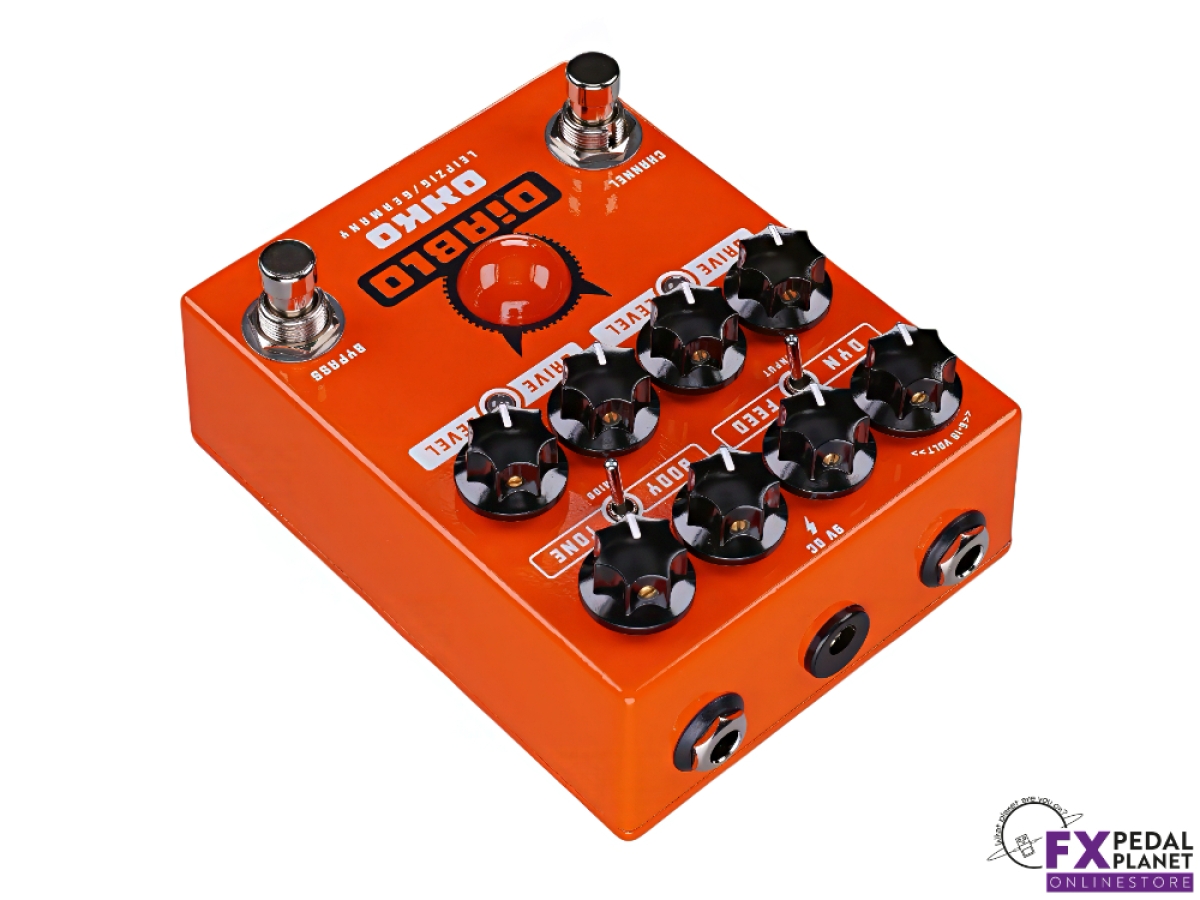

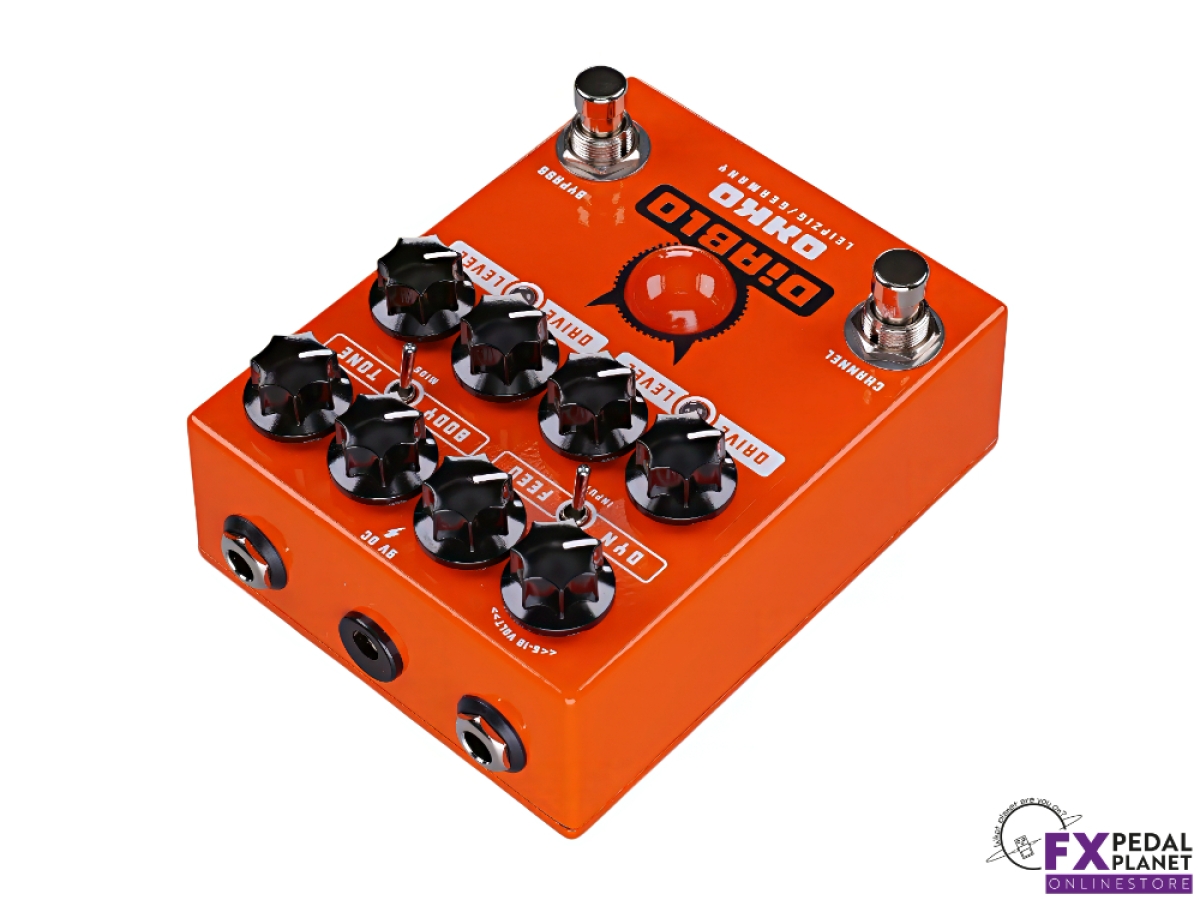

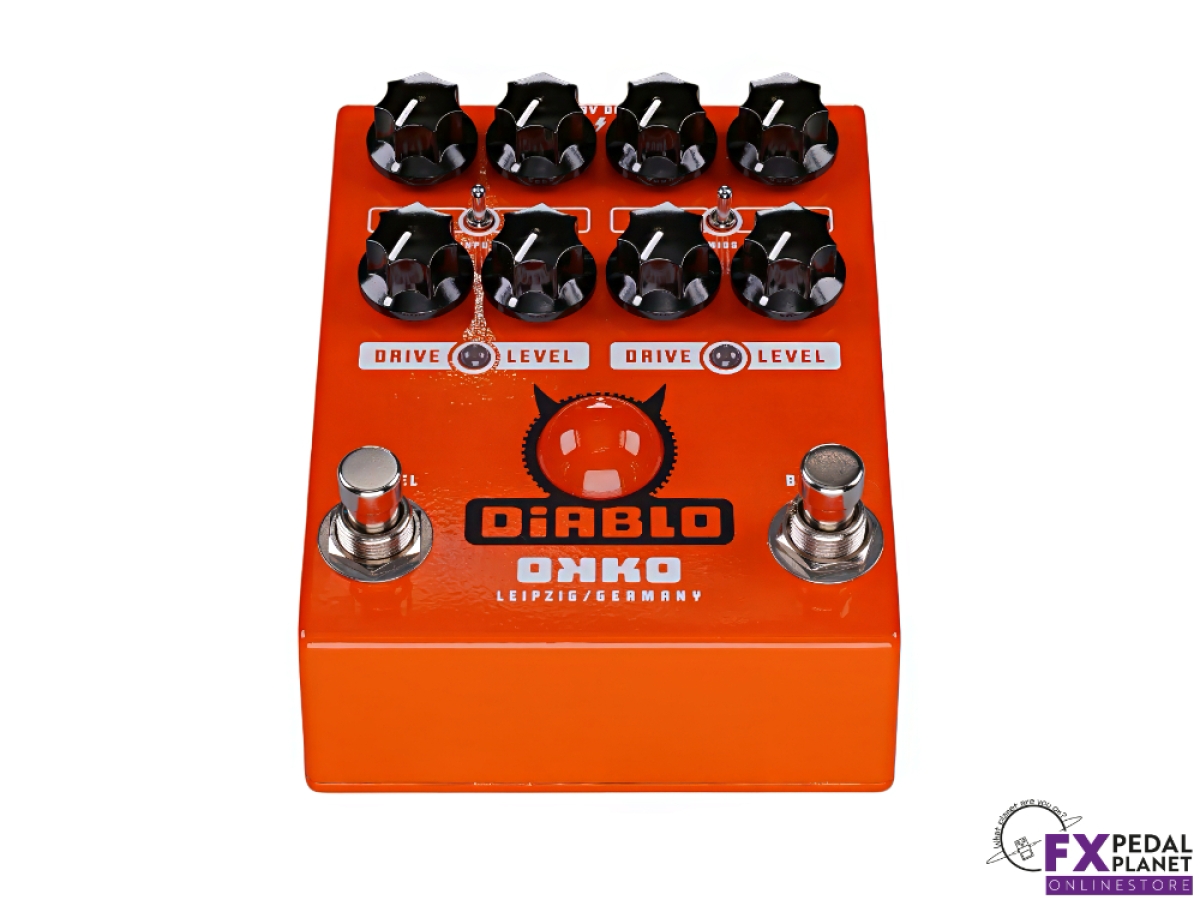

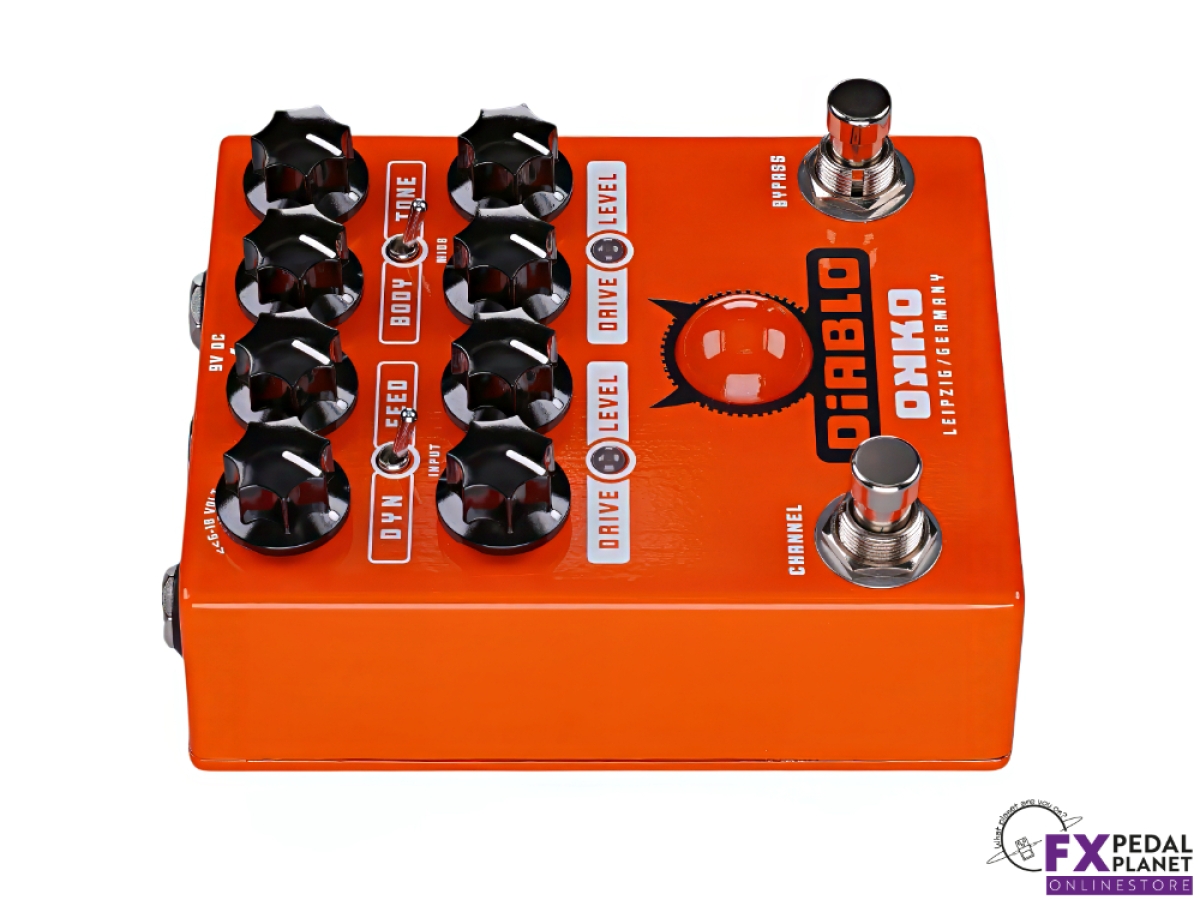

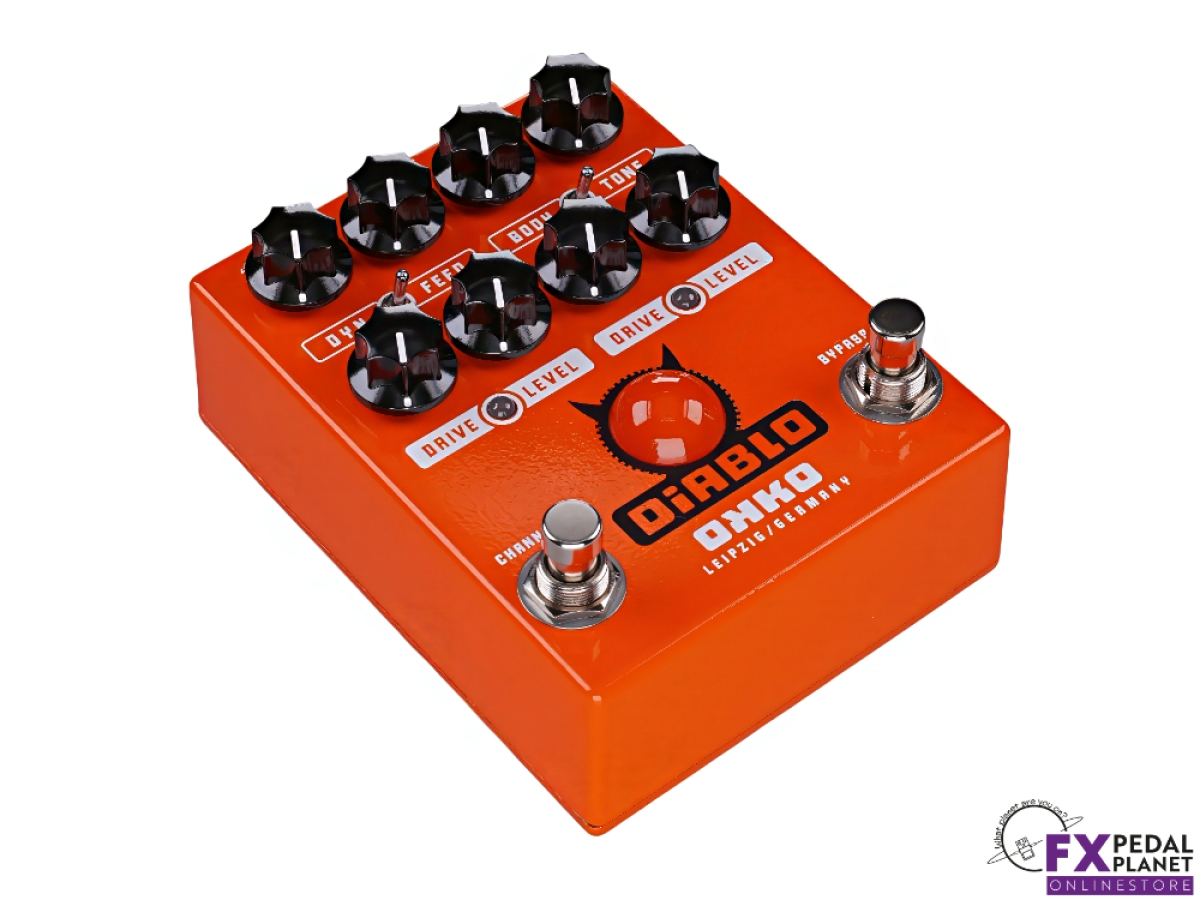

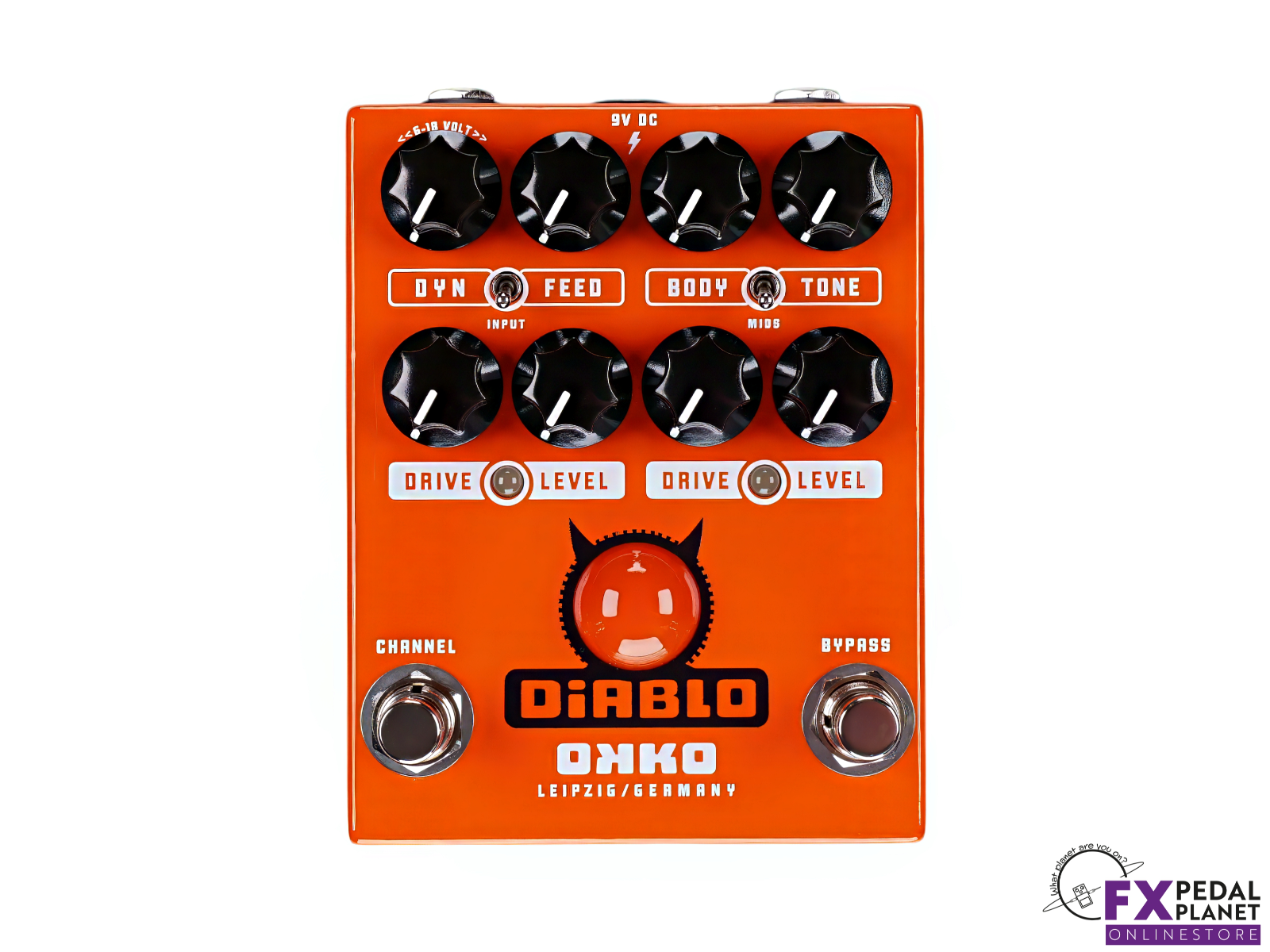

OKKO FX Diablo Dual

Diablo Dual

£214.00

Product unavailable. Secure your order by pre-ordering.

Highlights

• Dual channel analogue overdrive for guitar and bass
• Super clear, amp-like tones with chime and punch
• Highly dynamic feel with adjustable headroom and compression
• Extensive EQ and gain shaping with toggle voicing options
• Original Diablo circuit with added second independent channel
• Hand built and wired in Germany
• Durable all metal enclosure
• Orange enclosure with black graphics
• Unique and stylish LED power indicator
• True bypass switching
• All analogue signal path
• Top mounted jack sockets for tidy pedalboard layout
• Manufacturer backed warranty

Description

The OKKO FX Diablo Dual is a dual channel analogue overdrive designed for guitarists and bass players who want expressive, amp-like drive from low gain boost through to rich mid gain textures. Building on the original Diablo circuit that earned a loyal following over the past two decades, the OKKO FX Diablo Dual version adds a fully independent second channel, making it equally at home on stage or in the studio. It suits everything from blues, classic rock and indie through to heavier styles where clarity and note separation still matter.

Tonally, the OKKO FX Diablo Dual is known for its super clear, chimey yet punchy character. It retains tight and defined low end, offers plenty of usable mids, and avoids the congested feel common to many overdrives. It works particularly well with clean amps, adding drive and harmonic detail without masking the natural voice of the amplifier. With the right settings it can move from a cleanish boost to a raw, almost fuzzy edge, all while maintaining articulation with single coils, humbuckers and even bass pickups.

The feel of the OKKO FX Diablo Dual is where it truly stands out. A carefully voiced gain structure and adjustable internal headroom allow players to control compression, attack and punch. Lower headroom settings introduce more compression and grit, while higher settings tighten the bass and increase clarity and dynamic response. The result is an overdrive that reacts closely to picking strength and guitar volume changes, encouraging expressive playing rather than flattening it.

Each channel features its own Gain and Level controls, allowing two distinct drive sounds to be set and switched instantly. Shared upper controls provide deeper tonal shaping. The DYN control adjusts the internal operating voltage from approximately 6 to 18 volts, directly influencing headroom and feel. FEED shapes how much low frequency content enters the gain stage, helping to keep neck pickups tight and defined. BODY adds bass and low mids while subtly affecting gain structure, giving anything from lean bite to thicker drive tones. A three position INPUT mini switch (normal, low gain, top boost) tailors the sensitivity of the input stage to different guitars, and the MIDS switch shifts the tone control’s frequency focus to better match a range of amplifiers.

The circuit is fully analogue and built using high quality components, focusing on reliability, low noise and consistent performance. By retaining the core character of the original Diablo while expanding flexibility with two channels and added voicing options, the OKKO FX Diablo Dual offers both familiarity and increased versatility.

Housed in a robust all metal enclosure, the OKKO FX Diablo Dual is designed to withstand regular gigging and transport. The distinctive orange finish with black graphics is clear and easy to read under stage lighting, while the unique LED power indicator provides immediate visual confirmation of status without being distracting.

True bypass switching helps preserve the integrity of the original guitar or bass signal when the OKKO FX Diablo Dual is disengaged. Top mounted jack sockets support neat pedalboard wiring and efficient space use, making it straightforward to integrate into existing rigs.

With its dual channel layout, adjustable headroom, detailed EQ shaping and proven circuit heritage, the OKKO FX Diablo Dual stands out as a flexible, musical overdrive that works exceptionally well with clean amps and rewards nuanced playing. For players seeking clarity, dynamics and practical versatility in one enclosure, it is a compelling addition to any pedalboard.

Controls

• RIGHT FOOTSWITCH: Engages and bypasses the pedal
• LEFT FOOTSWITCH: Selects between Channel 1 and Channel 2
• GAIN: Sets drive intensity from clean boost to rich mid gain
• LEVEL: Adjusts output volume per channel for balance or boost
• DYN: Adjusts internal voltage 6–18V for headroom, punch and compression
• FEED: Controls low frequencies into gain stage for tightness and clarity
• BODY: Adds bass and low mids, altering thickness and gain character
• INPUT: Three way switch matches input sensitivity to different pickups
• MIDS: Shifts tone control frequency to suit different amplifiers

Components and Technical Specification

• Dual channel analogue overdrive circuit
• Independent Gain and Level controls per channel
• Shared voicing and EQ controls across both channels
• Internal voltage adjustable from approximately 6 to 18 volts
• True bypass switching for signal integrity
• Designed to work effectively with clean amplifiers
• Compatible with guitar and bass pickups
• High quality components throughout
• Hand built and wired construction
• All metal enclosure for touring durability

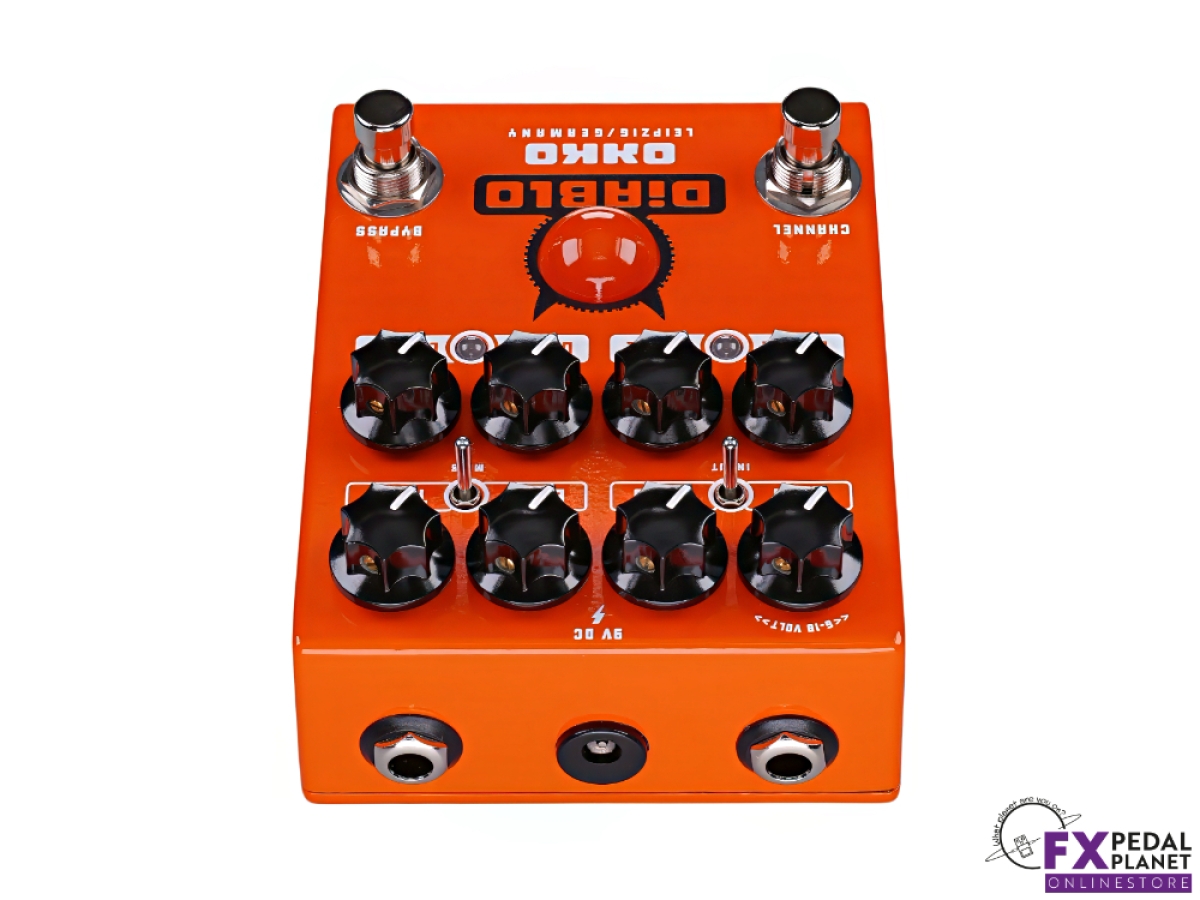

• Top mounted input and output jacks
• Powered by standard 9V centre negative supply (not included)
• Battery operation not supported
• Current draw measured with Truetone 1Spot mA Meter:
• Bypass: Approximately 4 mA
• Engaged (maximum): Approximately 21 mA

Current draw may vary slightly depending on control settings, circuit behaviour, and active features such as gain stages, modulation, filtering, or reverb tails. For best performance, use a high quality isolated power supply that matches the pedal’s current requirements. Always refer to the manufacturer’s recommendations, as incorrect powering may cause damage.

Enclosure Dimensions

• Length: 117 mm / 4.5 in
• Width: 91 mm / 3.6 in
• Height : 40 mm / 1.5 in

Weight

• 427 g
• 0.94 lbs
